Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Injection Molding Machine

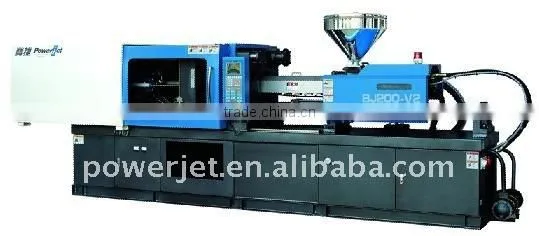

Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, For general products
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, For general products
Style
Horizontal
Brand Name
powerjet
Model Number
BJ200V2
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
464 g
Injection Rate
148 g/sec
Clamping Force
2000 KN
Opening Stroke
490 mm
Specifications
injection molding machine, with variable pump, energy saving and stable.| Technical Parameter of BJ200V2 | ||
| Description | Unit | BJ200V2 |
| Clamping Unit | ||
| Clamping Force | KN | 2000 |
| Opening Stroke | mm | 490 |
| Max daylight: | mm | 1040 |
| Platen size | mm | 775x755 |
| Space between Bars(H*V) |
mm*mm | 510x510 |
| Max. Mold Height | mm | 550 |
| Min. Mold Height | mm | 230 |
| Ejector Stoke | mm | 140 |
| Ejector Force | KN | 65 |
| Injection Unit | ||
| Screw Diameter | mm | 46 52 60 |
| Screw L/D Ratio | 21.7 19.2 16.7 | |
| Injection Pressure | Mpa | 230 180 135 |
| Shot Volume | cm3 | 407 520 693 |
| Shot Weight(PS) | g | 362 464 618 |
| Shot weight(PS) | QZ | 12.8 16.4 21.8 |
| Injection Rate | g/sec | 116 148 197 |
| Plasticizing capacity | g/sec | 28 38 55 |
| Screw Stroke | mm | 245 |
| Screw Speed | rpm | 173 |
| Power Unit | ||
| Hydraulic System Pressure | Mpa | 17.5 |
| Pump Motor Power | KW | 18.5 |
| Heater Power | KW | 11.5 |
| General | ||
| Dry-cycle time | sec | 1.8 |
| Oil Tank Capacity | L | 340 |
| Machine Weight | Ton | 5.8 |
| Machine Dimensions(L*W*H) | m*m*m | 5.75*1.40*2.10 |
