Specifications
used brick making machine for sale1.The operation is simple
2.The cost is low
3.High production capacity

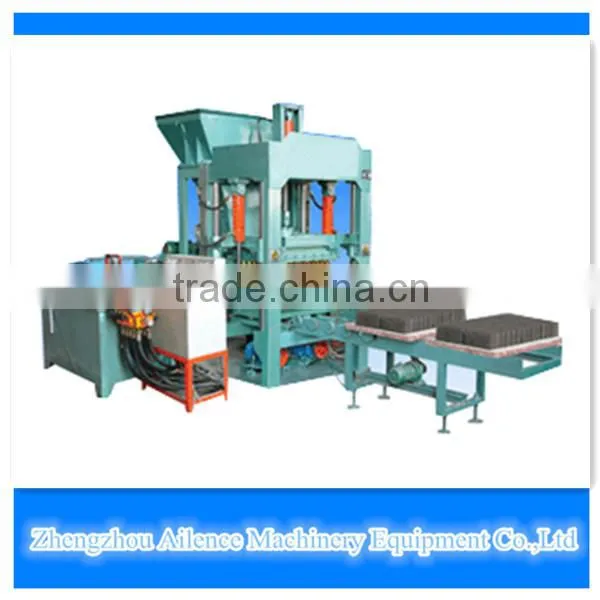

used brick making machine for sale
This used brick making machine for sale is small investment, the function, high efficiency, high degree of automation, is well received by the customers like it.
technical parameters
The molding cycle 10 to 15 seconds/time
Design production capacity 6000 pieces/class 3 piece/mold
The vibration frequency 4600 times per minute - 6100 times/min
The excitation material 22 kn
Vibrator 6 kw power
oil pump About Cb32 flat Q = 40 ml/r p = 10 mpa
Oil cylinder 80 x300 pole size 40
Cylinder 63 x250 pole size 40
Hydraulic system pressure rated 27.5 million mpa
The installed capacity 17.95 kw
plate specifications 750 mmx530mmx30mm
The weight 4.5 tons
Dimension 6100 mmx3600mmx2650mm
Production technology and ingredients
1. The production area should more than 300 square meters, factory building could be (8 m *15m) 100-200 square, and three-phase power source is need.
2. The first thing to prepare is some plate in order to use brick,which can use the old template, bamboo veneer cutting. Plate specification: 750*530*30mm, quantity: 600-1000.
3. A better quality of cement used no. 325 or 425 cement, conditional can prepare some fly ash, fine fine stone, coarse sand within 0.5. Also can be directly use stone powder, it has served the less fine stone grain.
If you need please feel free to contact me at any time
