S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China

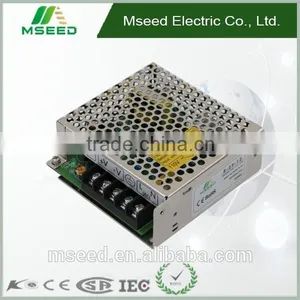

S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-1
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-2
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-3
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-4
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-5
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China thumbnail-6
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-1

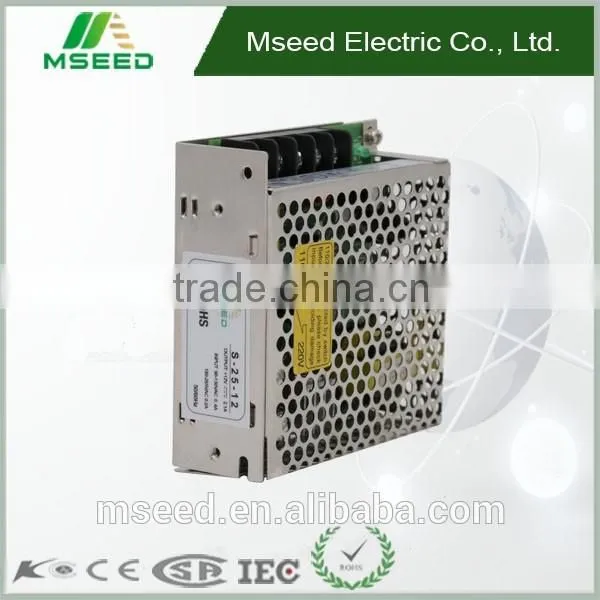

S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-2

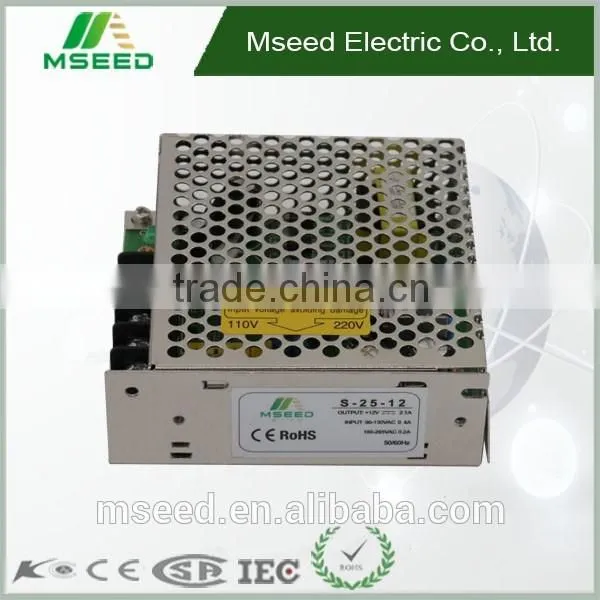

S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-3

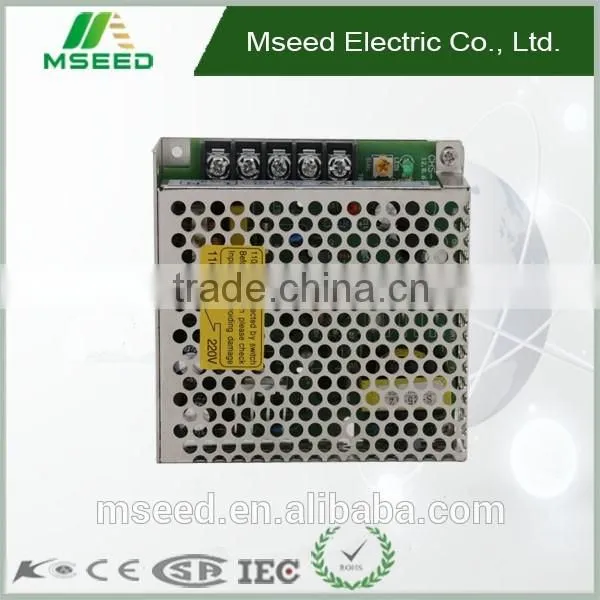

S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-4
S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-5

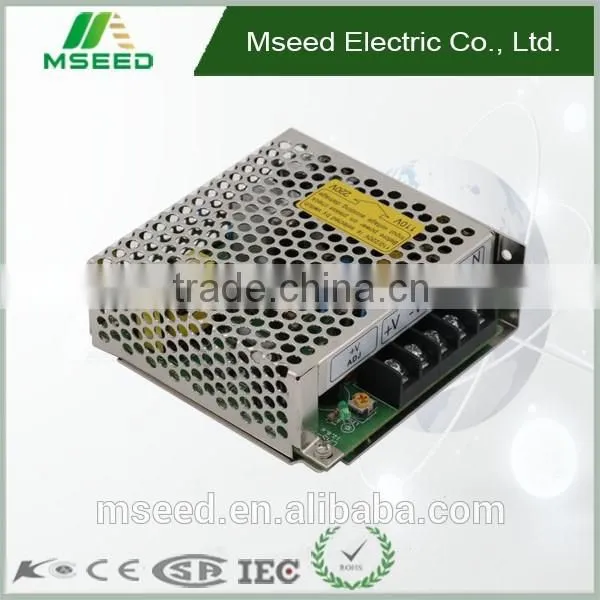

S-25 Transformer Electronic Switching Power Supply for LED Strip Made in China photo-6
US$ 3.9 - 5.9 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-25
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-25
Output Power Other, 25W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current other
Product Details
Product Introduction

Quick details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-25
Output Power: 25W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage: 5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range  12v switching power supply
• Protections:Short circuit/Over load/Over voltage    12v 40a switching power supply
• Built-in cooling Fan ON-OFF control   24v switching power supply
• 100% full load burn-in test   50v switching power supply
• Fixed switching frequency at 25KHz   industrial switching power supply
• Load stability +/-0.5%   12v 60a switching power supply
•Low ripple noise  12v 100a switching power supply
•High withstand voltage insulation   5v 30a switching led power supply
•Operation temperature high up to 70℃   110vdc switching power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
•3-year warranty   ac dc switching power supply

Parameters
Model
S25-5
S25-7.5
S25-12
S25-15
S25-24
S25-36
S25-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
0.34A/115V 0.17A/230V
Efficiency(AC220V)
75%
77%
77%
80%
81%
82%
83%
Inrush Current
15A/115V 30A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
5A
3.4A
2.1A
1.7A
1.1A
0.7A
0.52A
Regulation Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Regulation Load
±1%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤50mVp-p
≤60mVp-p
≤60mVp-p
≤60mVp-p
≤150mVp-p
≤200mVp-p
≤300mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
25W
25W
25.2W
25.5W
26.4W
25.2W
25W
Rise&Holding Time
800ms, 50ms, 30ms/115V; 300ms, 50ms, 30ms/230V
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

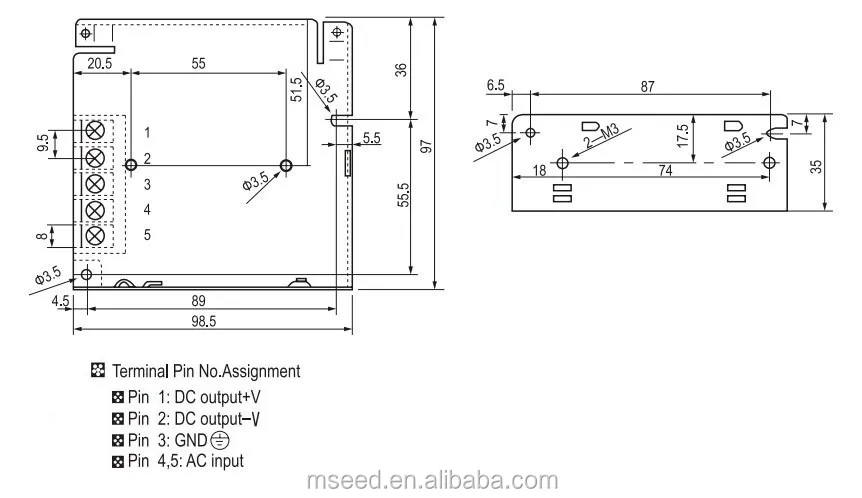

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.
