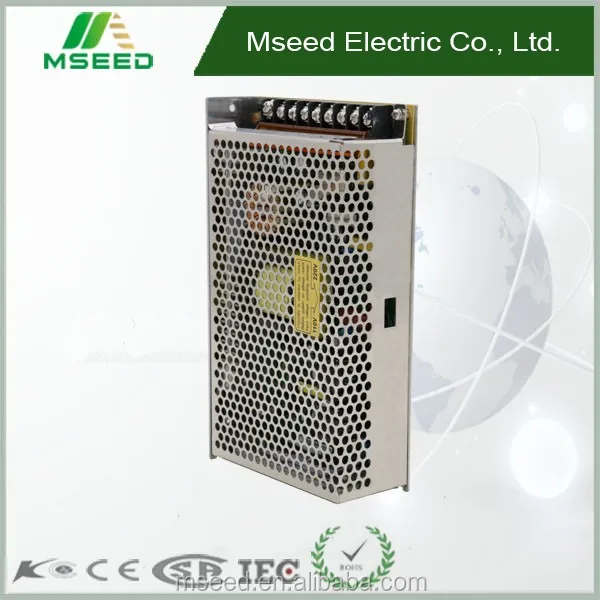

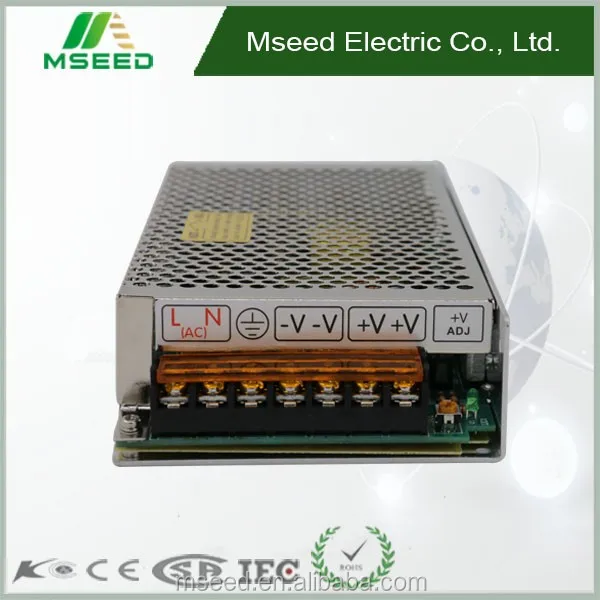

S-200 Mini Regulated Switch Power Supply With Competitive Price

Wenzhou Mseed Electric Co., Ltd.
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-1
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-2
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-3
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-4
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-5
S-200 Mini Regulated Switch Power Supply With Competitive Price thumbnail-6
S-200 Mini Regulated Switch Power Supply With Competitive Price photo-1

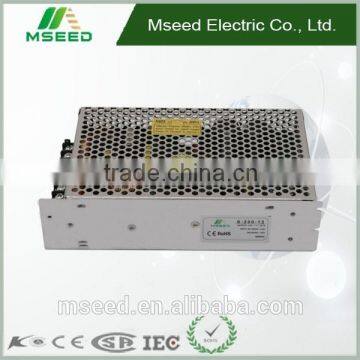

S-200 Mini Regulated Switch Power Supply With Competitive Price photo-2

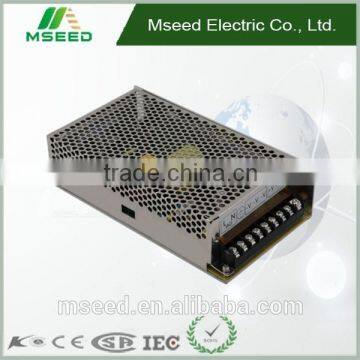

S-200 Mini Regulated Switch Power Supply With Competitive Price photo-3

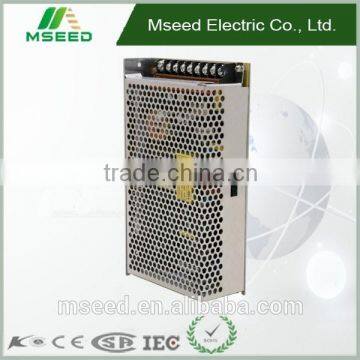

S-200 Mini Regulated Switch Power Supply With Competitive Price photo-4

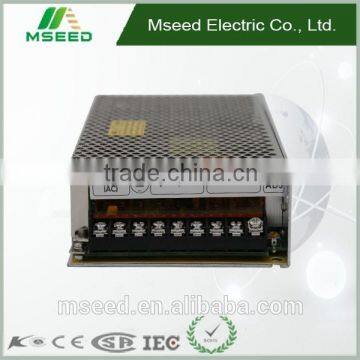

S-200 Mini Regulated Switch Power Supply With Competitive Price photo-5
S-200 Mini Regulated Switch Power Supply With Competitive Price photo-6
US$ 8.8 - 10.8 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-200
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-200
Output Power Other, 200W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current 16.7A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-200
Output Power: 200W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage: 5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
switching power supply
• Protections:Short circuit/Over load/Over voltage
48v 30a switching power supply
• Built-in cooling Fan ON-OFF control
10w switching power supply
• 100% full load burn-in test
13.8v switching power supply
• Fixed switching frequency at 25KHz
12v 40a switching power supply
• Load stability +/-0.5%
24v switching power supply
•Low ripple noise
50v switching power supply
•High withstand voltage insulation
industrial switching power supply
•Operation temperature high up to 70℃
12v 100a switching power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
5v 30a switching led power supply
•3-year warranty



Parameters
Model
S200-5
S200-7.5
S200-12
S200-15
S200-24
S200-36
S200-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
2.8A/115V 1.4A/230V
Efficiency(AC220V)
80%
82%
84%
84%
85%
85%
86%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
36A
26A
16.7A
13.3A
8.3A
5.6A
4.2A
Regulation Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Regulation Load
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤75mVp-p
≤75mVp-p
≤100mVp-p
≤100mVp-p
≤120mVp-p
≤150mVp-p
≤150mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
180W
195W
200W
200W
200W
200W
200W
Rise&Holding Time
200ms,100ms, 30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22

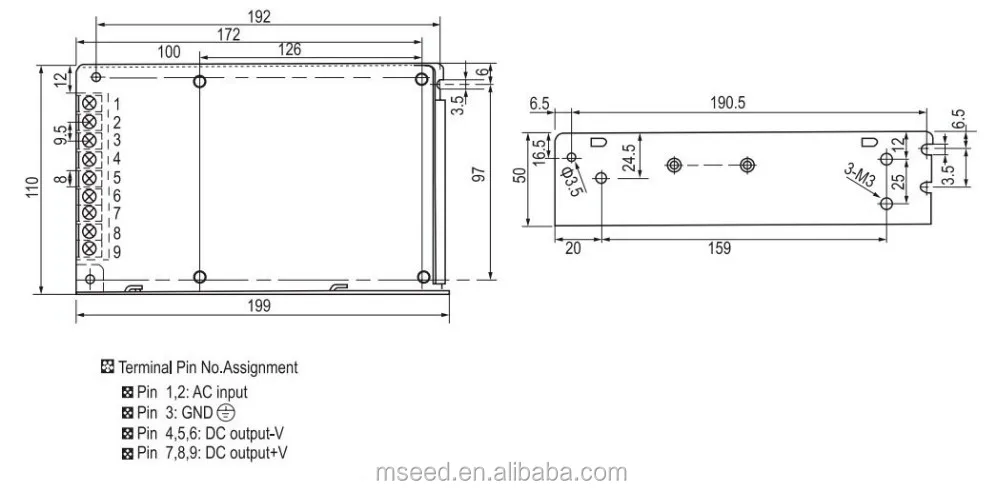

Dimension



Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs
