S-350 Single Output Switching Power Supply With KC,CCC Certificate

Wenzhou Mseed Electric Co., Ltd.
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-1
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-2
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-3
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-4
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-5
S-350 Single Output Switching Power Supply With KC,CCC Certificate thumbnail-6

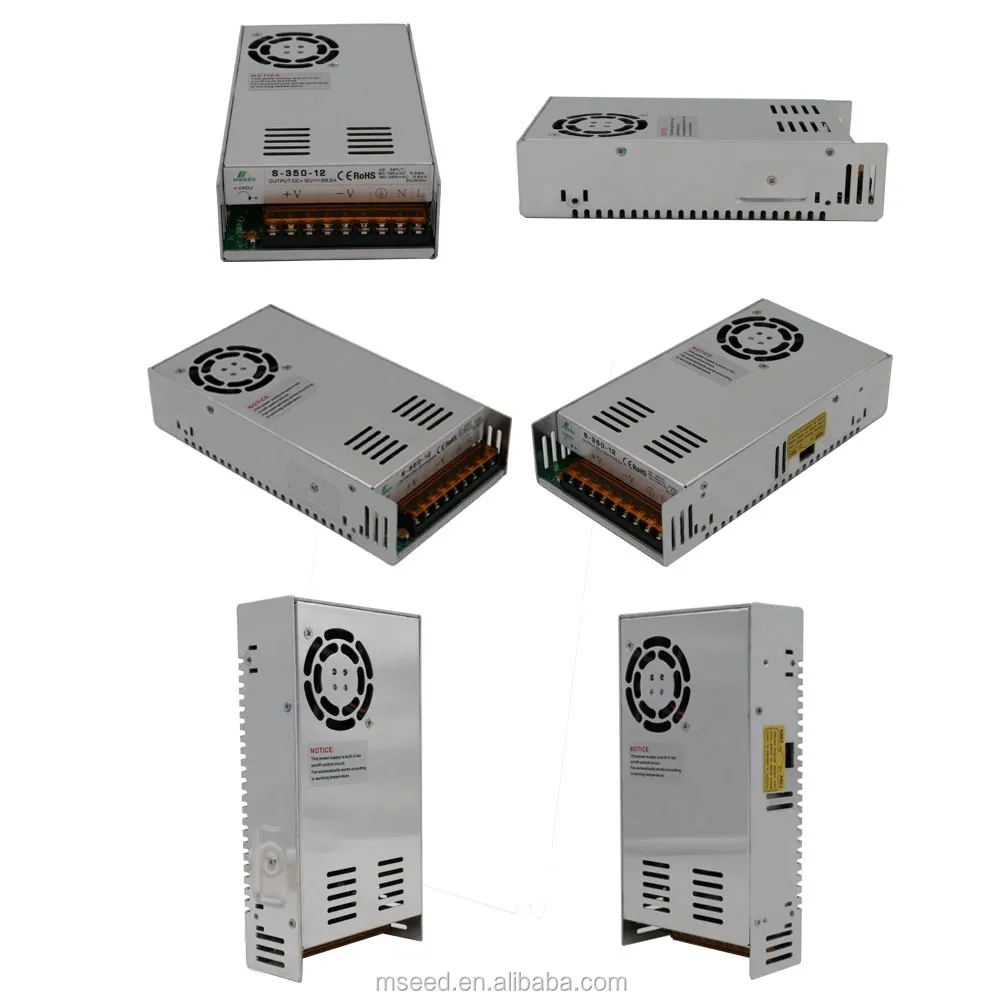

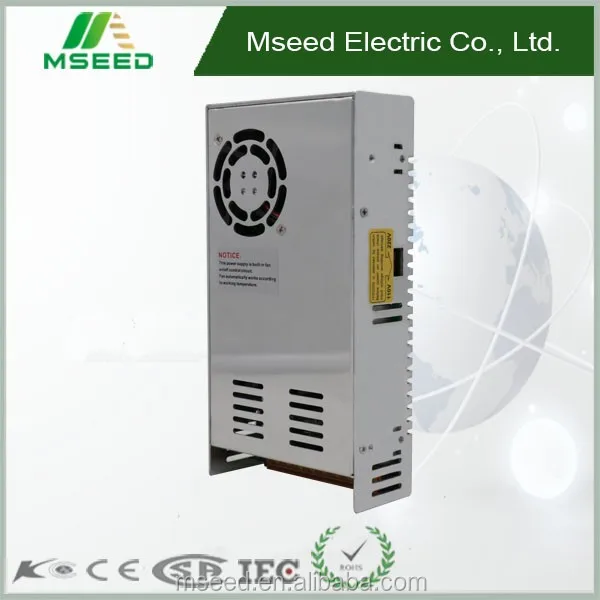

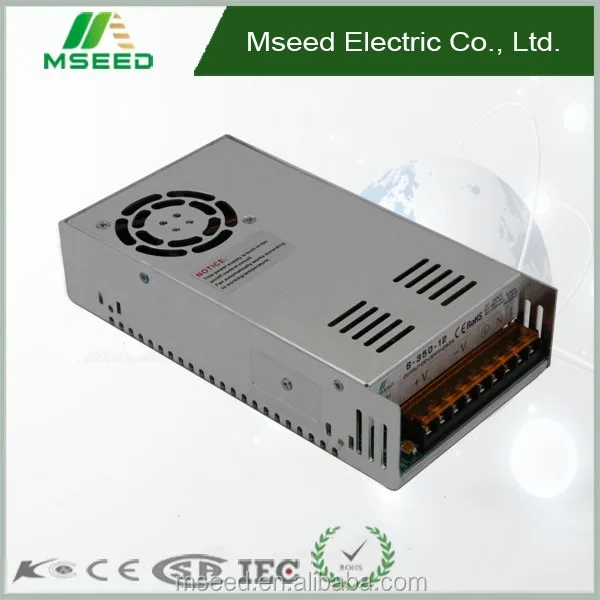

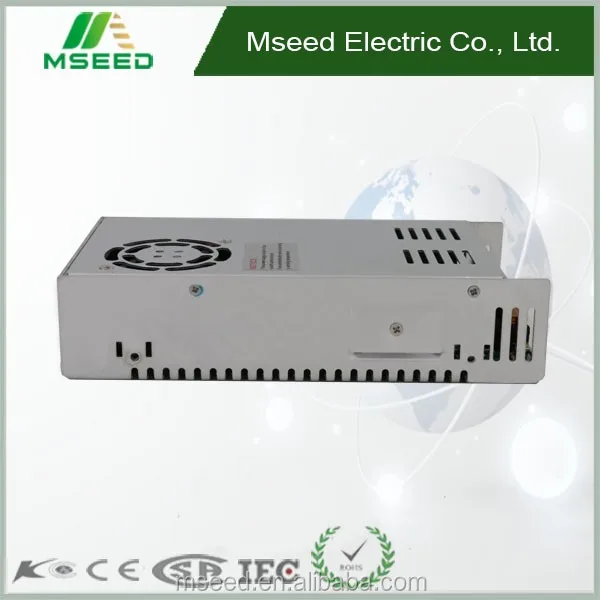

S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-1
S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-2

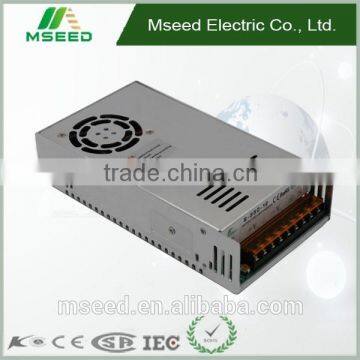

S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-3

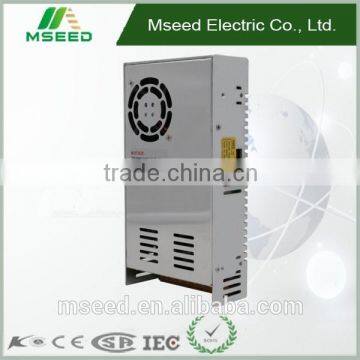

S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-4
S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-5

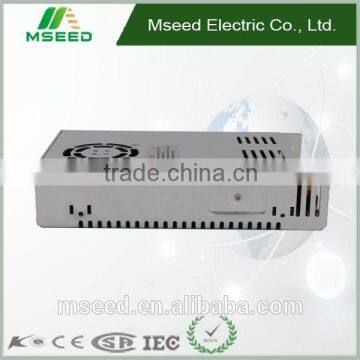

S-350 Single Output Switching Power Supply With KC,CCC Certificate photo-6
US$ 12 - 14.8 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-350
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-350
Output Power Other, 350W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current other
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-350
Output Power:350W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range   24v 8a switching power supply
• Protections:Short circuit/Over load/Over voltage  dc adapter 100-240v 50-60hz
• Built-in cooling Fan ON-OFF control  13.8v switching power supply
• 100% full load burn-in test  switching mode power supply
• Fixed switching frequency at 25KHz  led switching power supply
• Load stability +/-0.5%  24v switching power supply
•Low ripple noise  industrial switching power supply
•High withstand voltage insulation  12v 100a switching power supply
•Operation temperature high up to 70℃  5v 30a switching led power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
•3-year warranty   ac dc switching power supply

Parameters
Model
S350-12
S350-15
S350-24
S350-36
S350-48
Input
Voltage Frequency
90-130VAC/170-260VAC, 47-63Hz; 240-370VDC
Current
4.8A/115V 2.4A/230V
Efficiency(AC220V)
84%
84%
85%
85%
86%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
12V
15V
24V
36V
48V
Current
30A
24A
15A
10A
7.5A
Regulation Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Regulation Load
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤75mVp-p
≤75mVp-p
≤100mVp-p
≤120mVp-p
≤120mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
360W
360W
360W
360W
360W
Rise&Holding Time
200ms, 100ms, 20ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
13.8-16.2V
18-21V
27-32V
39-42V
57-67V
Over-Heat Protection
≥55℃Fan start; ≥65℃Fan speed up;≥80℃Output close
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

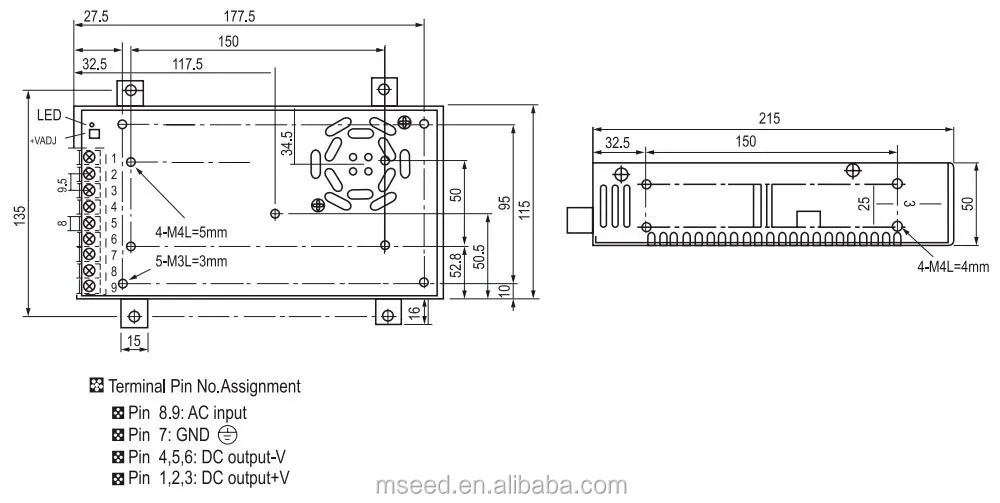

Dimension
Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

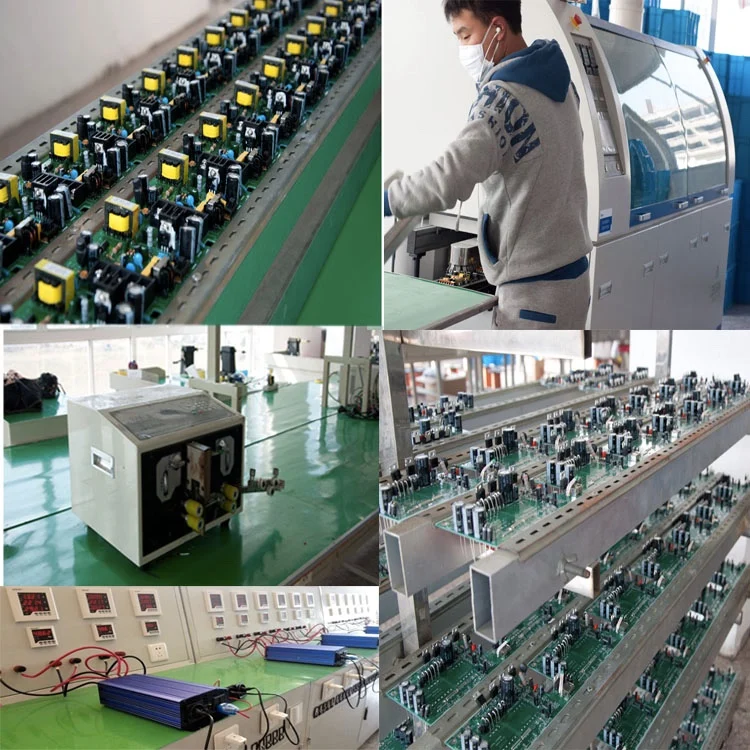

Factory Details
