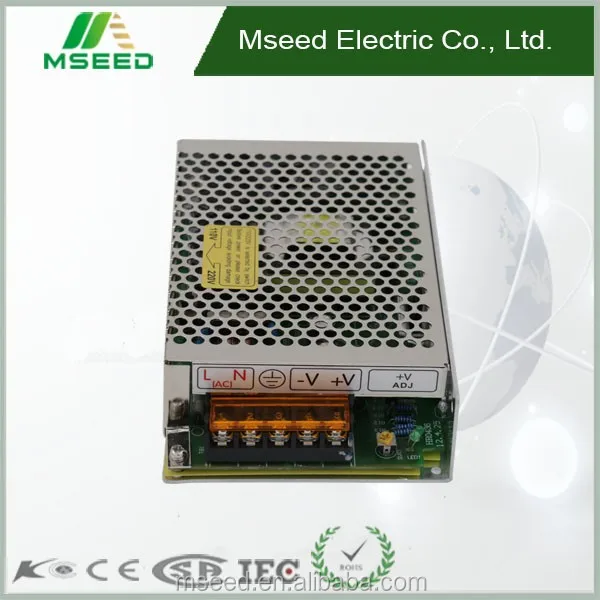

MS-150 With Good Quality Industrial Switch Mode Power Supply

Wenzhou Mseed Electric Co., Ltd.
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-1
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-2
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-3
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-4
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-5
MS-150 With Good Quality Industrial Switch Mode Power Supply thumbnail-6
MS-150 With Good Quality Industrial Switch Mode Power Supply photo-1
MS-150 With Good Quality Industrial Switch Mode Power Supply photo-2

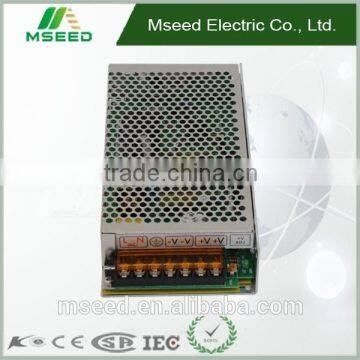

MS-150 With Good Quality Industrial Switch Mode Power Supply photo-3

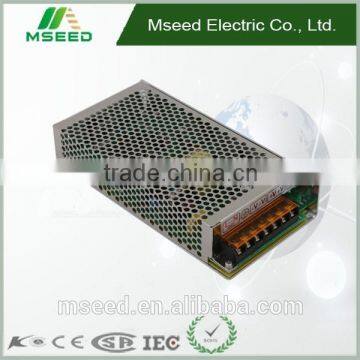

MS-150 With Good Quality Industrial Switch Mode Power Supply photo-4

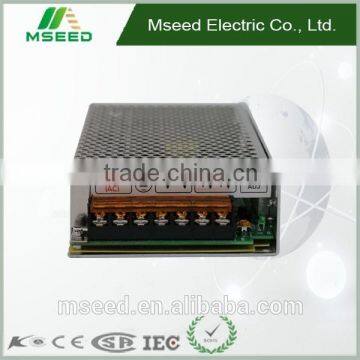

MS-150 With Good Quality Industrial Switch Mode Power Supply photo-5

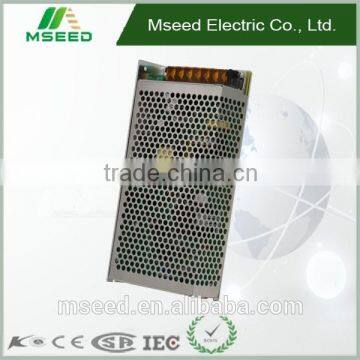

MS-150 With Good Quality Industrial Switch Mode Power Supply photo-6
US$ 6.2 - 7.5 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-150
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-150
Output Power Other, 150W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Output Current 12.5A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-150
Output Power: 150W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
dc adapter 100-240v 50-60hz (desktop switching power supply)
• Protections:Short circuit/Over load/Over voltage
110vdc switching power supply
• Built-in cooling Fan ON-OFF control
led switching power supply
• 100% full load burn-in test
24v 8a switching power supply
• Fixed switching frequency at 25KHz
18v switching power supply
• Load stability +/-0.5%
13.8v switching power supply
•Low ripple noise
ac dc switching power supply
•High withstand voltage insulation
dve switching power supply
•Operation temperature high up to 70℃
switching model power supply
•Meet EN61347 standard, CE certificates
dual output switching power supply 5v 12v
•2-year warranty 10w switching power supply

Parameters
Model
MS150-5
MS150-7.5
MS150-12
MS150-15
MS150-24
MS150-36
MS150-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
2A/150V 1A/130V
Efficiency(AC220V)
78%
80%
81%
81%
84%
84%
83%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
28A
20A
12.5A
10A
6.25A
4.2A
3.2A
Regulation Line
±0.5%
±0.5%
±0.3%
±0.3%
±0.2%
±0.2%
±0.2%
Regulation Load
±1%
±0.5%
±0.3%
±0.3%
±0.2%
±0.2%
±0.2%
Ripple Noise
≤50mVp-p
≤60mVp-p
≤60mVp-p
≤60mVp-p
≤100mVp-p
≤100mVp-p
≤120mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
140W
150W
150W
150W
150W
151W
154W
Rise&Holding Time
200ms,100ms, 30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22

Dimension



Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs
