MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-1
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-2
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-3
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-4
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-5
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer thumbnail-6

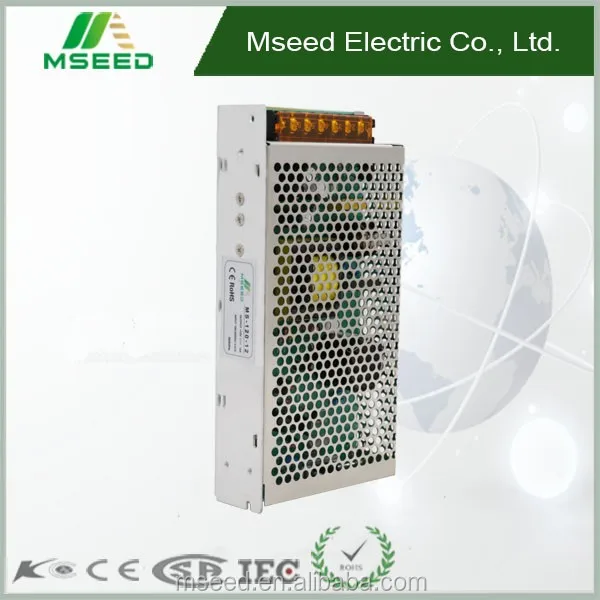

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-1

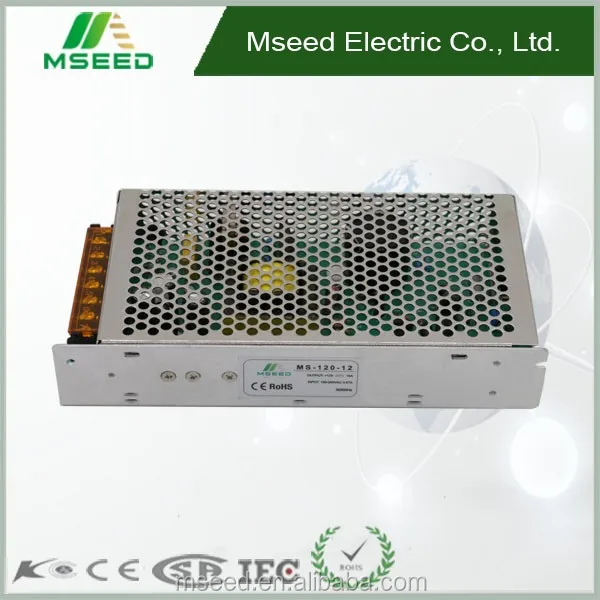

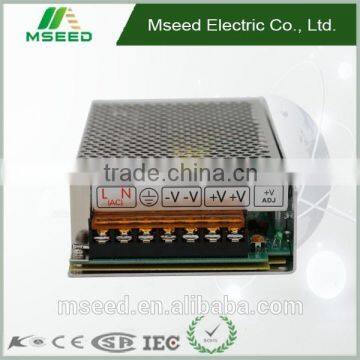

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-2

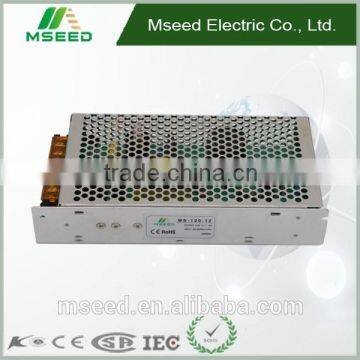

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-3

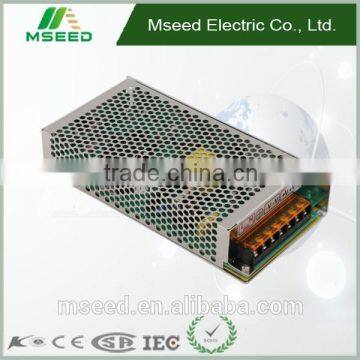

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-4
MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-5

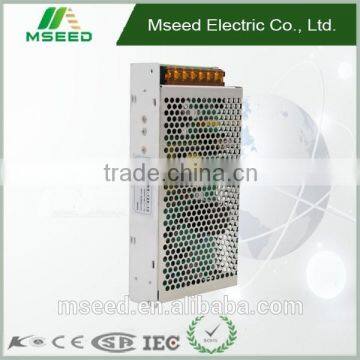

MS-120-12 12a dc Adapter Industrial Switch Mode Power Supply Manufacturer photo-6
US$ 5.6 - 7 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-120
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-120
Output Power Other, 120W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Output Current 10A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-120
Output Power: 120W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC 24v switching power supply
led switching power supply

Features

• Universal AC input / Full range
12v 100a switching power supply
• Protections:Short circuit/Over load/Over voltage

• Built-in cooling Fan ON-OFF control

• 100% full load burn-in test
5v 30a switching led power supply
• Fixed switching frequency at 25KHz
10w switching power supply
• Load stability +/-0.5%
12v 40a switching power supply
•Low ripple noise
50v switching power supply
•High withstand voltage insulation
dve switching power supply dso-142l
•Operation temperature high up to 70℃

•Meet EN61347 standard, CE certificates

* 2 years warranty

Parameters
Model
MS120-12
MS120-15
MS120-24
MS120-36
MS120-48
Input
Voltage Frequency
170-260VAC, 47-63Hz; 240-370VDC
Current
0.8A/230V
Efficiency(AC220V)
73%
73%
75%
76%
76%
Inrush Current
30A/230V 30A/230V at cold start
Output
Voltage
12V
15V
24V
36V
48V
Current
10A
8A
5A
3.3A
2.5A
Regulation Line
1%
1%
1%
1%
1%
Regulation Load
1%
1%
0.5%
0.5%
0.5%
Ripple Noise
≤120mVp-p
≤150mVp-p
≤240mVp-p
≤360mVp-p
≤480mVp-p
Temperature Drift
±0.03% / ℃(0-50℃)
Rated Power
120W
120W
120W
120W
120W
Rise&Holding Time
1s, 100ms, 50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22

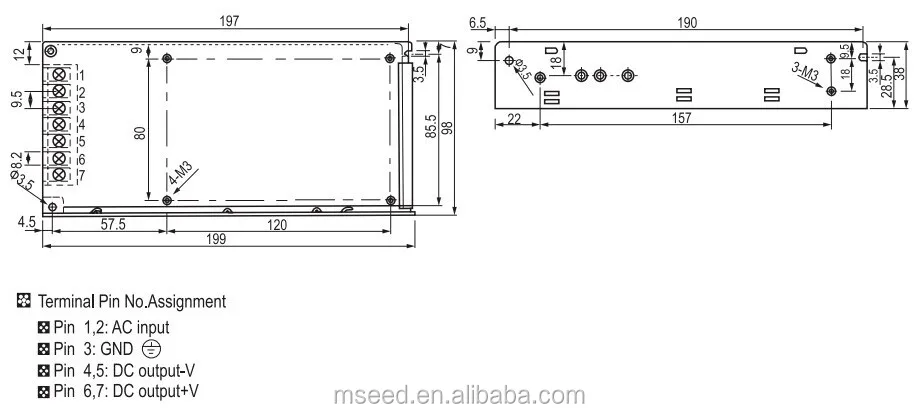

Dimension:



Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Why Choose Us



•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.



•Treat your career as our career.

Certifications:

Factory Details
Contact Us

Welcome to contact us:

For sales or information inquiry, please contact us in the following ways:

Mob:+8613588948309

Tel: +86-577-55770369

Skype:+8613588948309

Trade messenger: barbara ye

Website:   http://mseed.en.china.cn
