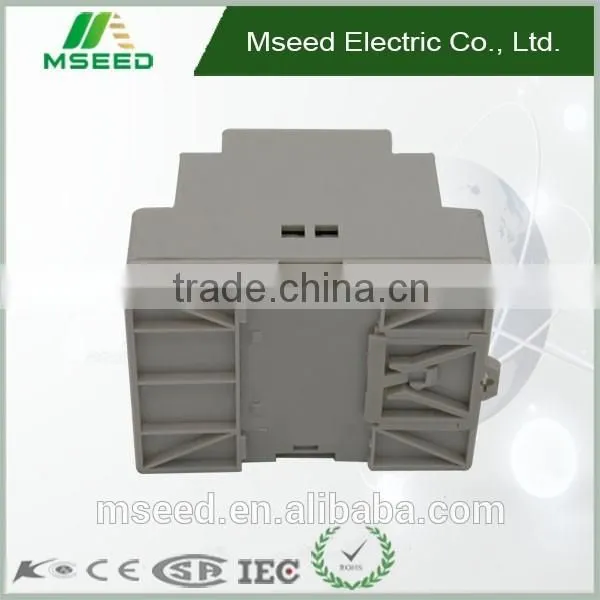

Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-1

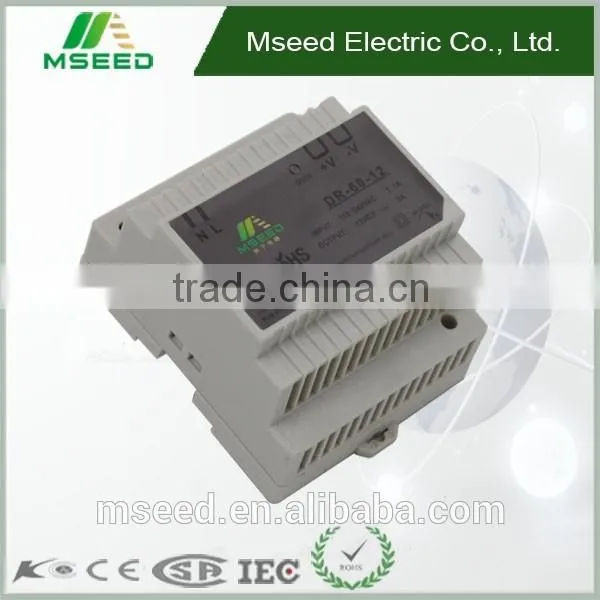

Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-2

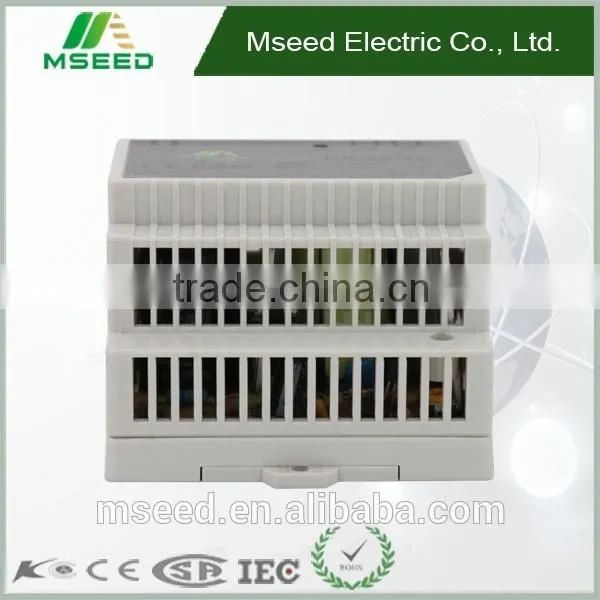

Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-3

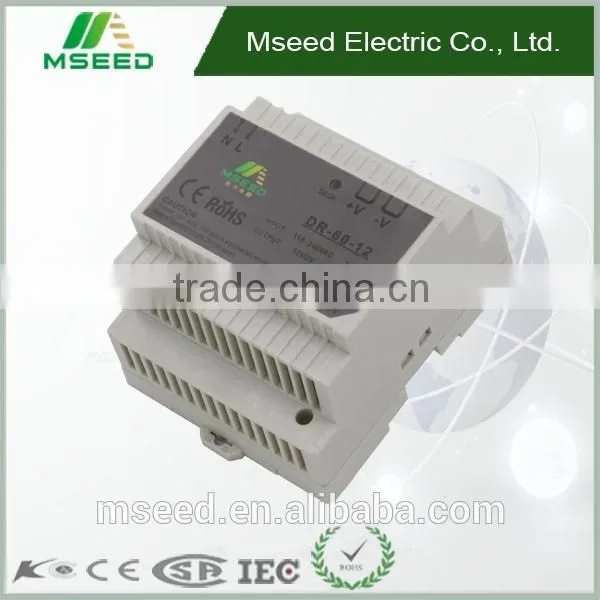

Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-4
Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-5
Made in China DIN Rail DR-60 With High Quality% DIN Rail Electronic Switching Power Supply With KC,CCC Certificate photo-6
US$ 7.2 - 9.5 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
DR-60
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number DR-60
Output Power Other, 60W
Output Type Single
Input Voltage Other, 85-264VAC
Output Voltage 12V/15V/24V/48v
Output Frequency 50Hz
Output Current other
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:DR-60
Output Power:60W
Output Type: Single
Input Voltage: 85-264VAC
Output Voltage: 5V/12V/15V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage   110vdc switching power supply
• Built-in cooling Fan ON-OFF control   24v 8a switching power supply
• 100% full load burn-in test   18v switching power supply
•High withstand voltage insulation
•Operation temperature high up to 70℃ac dc switching power supply
• Fixed switching frequency at 25KHz
• Load stability +/-0.5%     switching model power supply
•Low ripple noise
•Meet EN61000/EN60950 heavy industrial level, CE certificate
•3-year warranty

Parameters
Model
DR60-5
DR60-12
DR60-15
DR60-24
Input
Voltage Frequency
85-264VAC, 120-370VDC
Current
0.4A/230V
Efficiency(AC220V)
76%
82%
83%
84%
Inrush Current
18A/115V 36A/230V at cold start
Output
Voltage
5V
12V
15V
24V
Current
6.5A
4.5A
4A
2.5A
Regulation Line
0.5%
0.5%
0.5%
0.5%
Regulation Load
1%
0.5%
0.5%
0.5%
Ripple Noise
≤100mVp-p
≤200mVp-p
≤240mVp-p
≤480mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Direct Output Wattage
32.5W
54W
60W
60W
Rise&Holding Time
800ms,60ms,50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
115%-135%
Over Voltage Protection
/
Withstand
voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+50)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

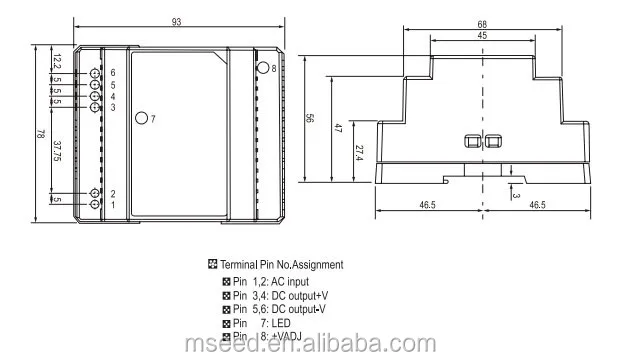

Dimension
