S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China

Wenzhou Mseed Electric Co., Ltd.
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-1
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-2
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-3
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-4
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-5

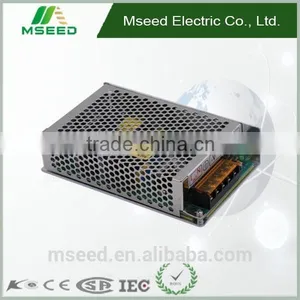

S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China thumbnail-6
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-1
S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-2

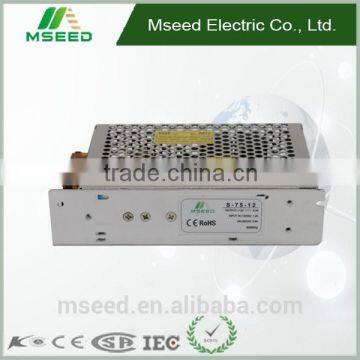

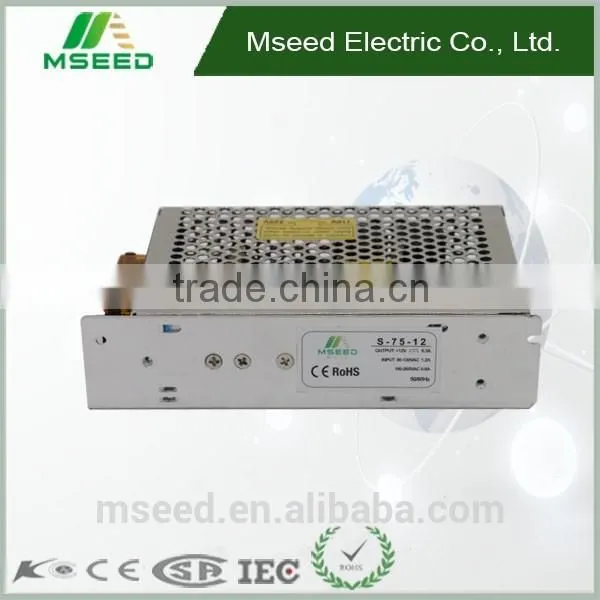

S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-3

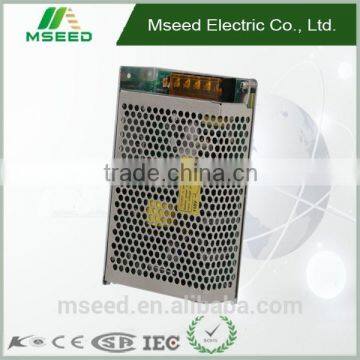

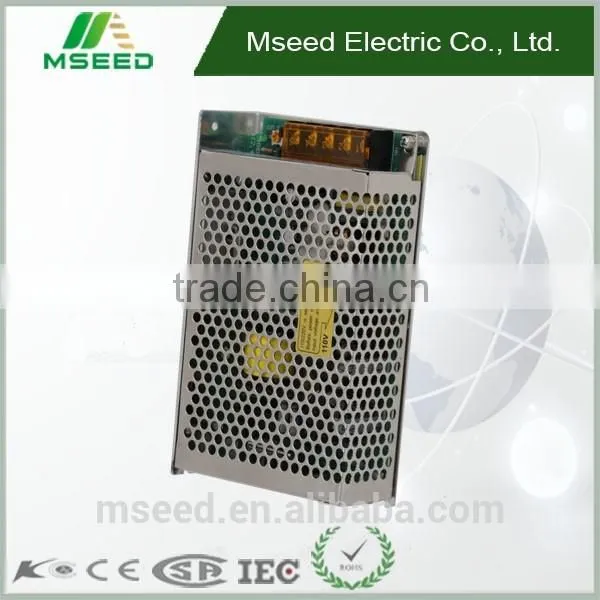

S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-4

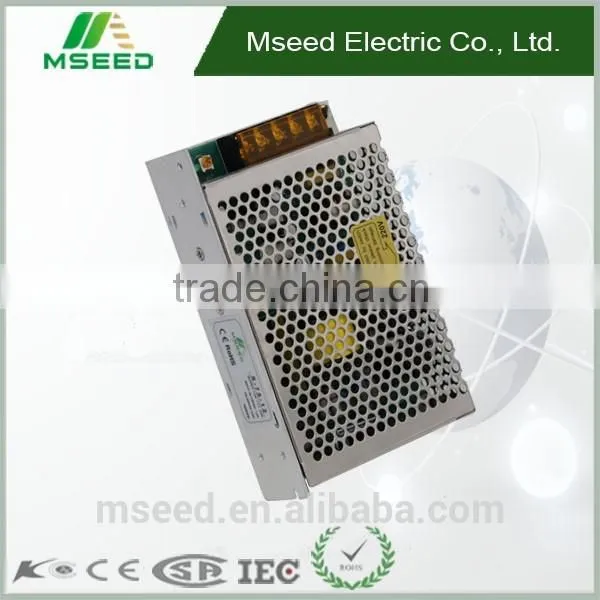

S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-5

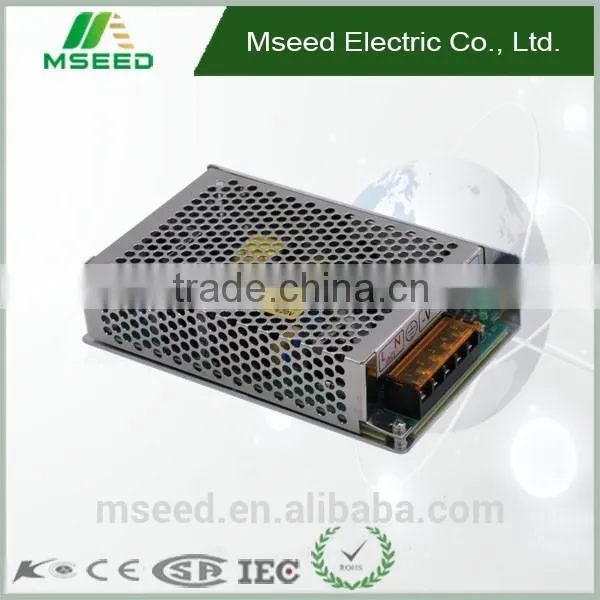

S-75 Mini Universal Switch Mode Power Supply*LED Strip Switch Power Supply Made in China photo-6
US$ 4.95 - 6.7 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-75
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-75
Output Power Other, 75W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current other
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-75
Output Power: 75W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
48v 30a switching power supply
• Protections:Short circuit/Over load/Over voltage
led switching power supply
• Built-in cooling Fan ON-OFF control
24v switching power supply
• 100% full load burn-in test
50v switching power supply
• Fixed switching frequency at 25KHz
24v switching power supply
• Load stability +/-0.5%
110vdc switching power supply
•Low ripple noise
110vdc switching power supply
•High withstand voltage insulation
ac dc switching power supply
•Operation temperature high up to 70℃
dve switching power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
switching power supply 220v 12v 50a
•3-year warranty 12v

Parameters
Model
S75-5
S75-7.5
S75-12
S75-15
S75-24
S75-36
S75-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
1A/115V 0.5A/230V
Efficiency(AC220V)
75%
77%
78%
78%
82%
82%
83%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
12A
10A
6.25A
5A
3.1A
2.1A
1.6A
Regulation Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Regulation Load
±1%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤50mVp-p
≤40mVp-p
≤40mVp-p
≤40mVp-p
≤80mVp-p
≤100mVp-p
≤120mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
60W
75W
75W
75W
74W
75.6W
76.8W
Rise&Holding Time
200ms,100ms, 30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22
Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

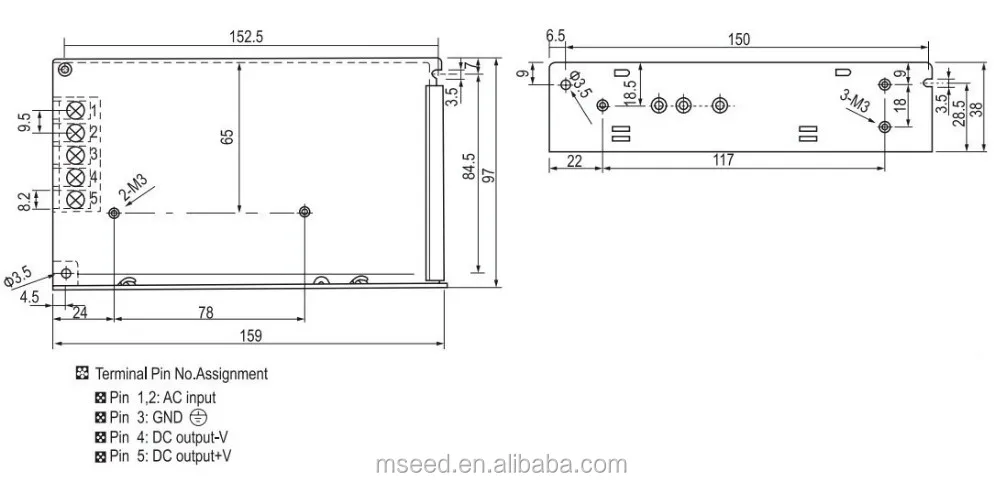

Dimension



Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.
