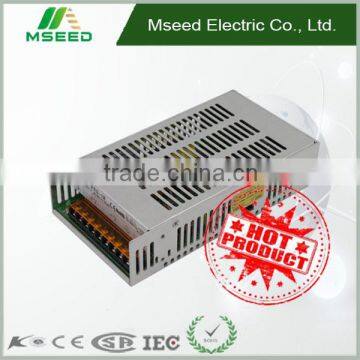

S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-1
S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-2
S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-3

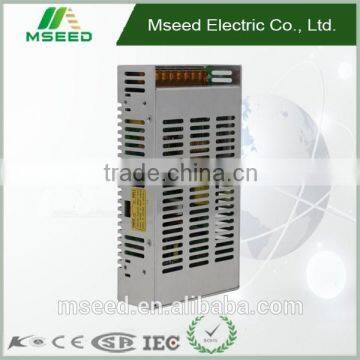

S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-4
S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-5
S-250 Rosh, kc Approved ,single Output Switch Mode Power Supply Made in China photo-6
US$ 10.5 - 13 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
S-250
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number S-250
Output Power Other, 250W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V/36V/48V
Output Frequency 50Hz
Output Current 21A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:S-250
Output Power: 250W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V/36V/48V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
switching model power supply
• Protections:Short circuit/Over load/Over voltage
dual output switching power supply 5v 12v
• Built-in cooling Fan ON-OFF control
switching power supply 220v 12v 50a
• 100% full load burn-in test
switching power supply 12v
• Fixed switching frequency at 25KHz
atx 500w switching power supply
• Load stability +/-0.5%
1800w atx switching power supply
•Low ripple noise

•High withstand voltage insulation

•Operation temperature high up to 70℃
50v switching power supply
•Meet EN61000/EN60950 heavy industrial level, CE certificate
led switching power supply
•3-year warranty

Parameters
Model
S250-5
S250-12
S250-15
S250-24
S250-36
S250-48
Input
Voltage Frequency
90-130VAC/170-260VAC selected by swit 47-63Hz; 240-370VDC
Current
3.4A/115V 1.7A/230V
Efficiency(AC220V)
78%
84%
84%
85%
85%
86%
Inrush Current
30A/115V 60A/230V at cold start
Output
Voltage
5V
12V
15V
24V
36V
48V
Current
40A
21A
17A
10.5A
7A
5.2A
Regulation Line
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Regulation Load
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Ripple Noise
≤60mVp-p
≤75mVp-p
≤75mVp-p
≤100mVp-p
≤120mVp-p
≤120mVp-p
Temperature Drift
±0.02% / ℃(0-50℃)
Rated Power
200W
252W
255W
252W
252W
250W
Rise&Holding Time
200ms,100ms, 30ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
6.2-7.5V
13.8-16.2V
18-21V
27-32V
39-42V
57-67V
Over-Heat Protection
≥90℃Output close
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22

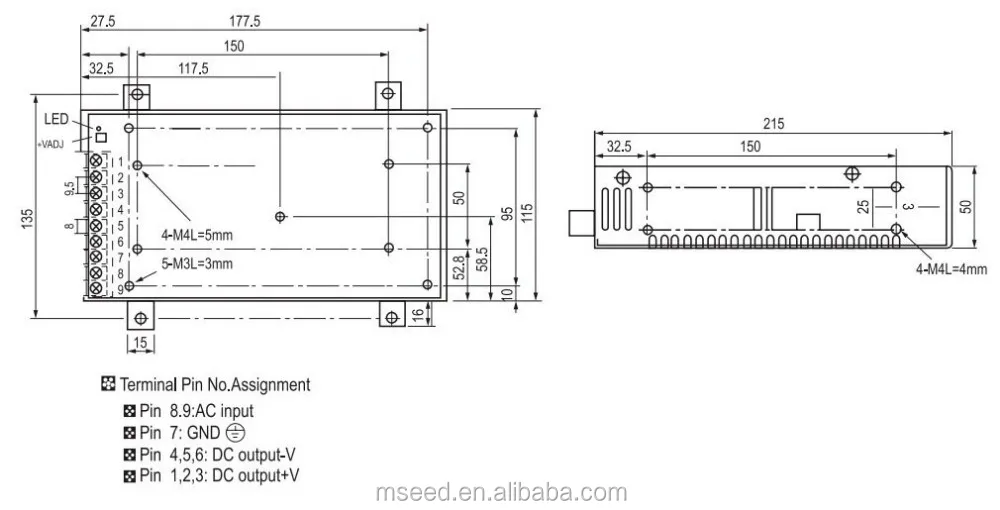

Dimension



Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs
