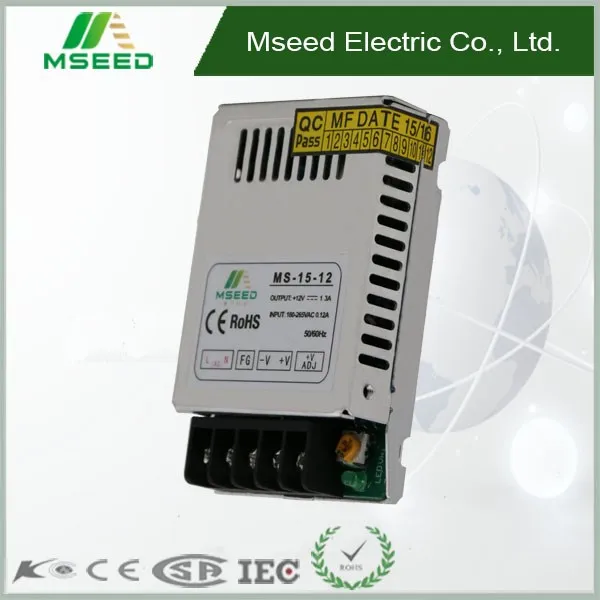

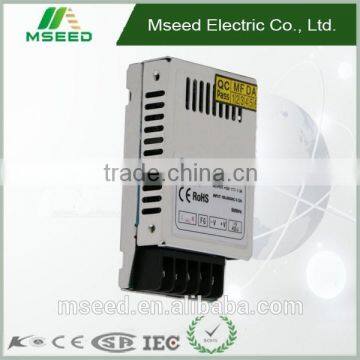

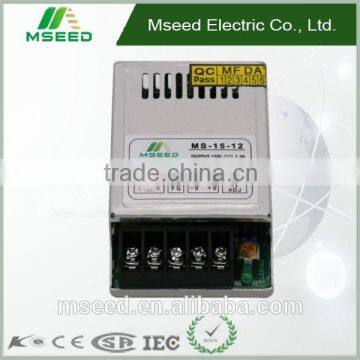

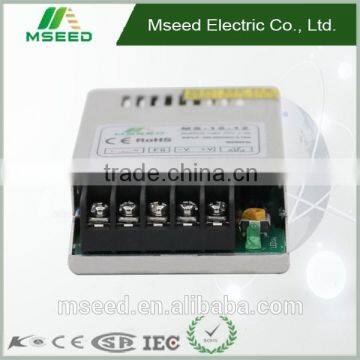

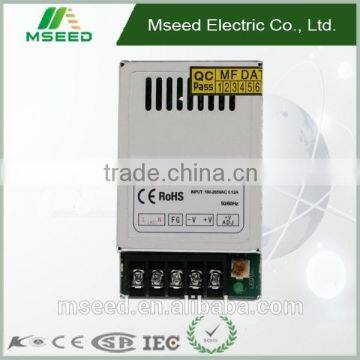

AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C

AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-1
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-2
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-3
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-4
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-5
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C thumbnail-6
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-1
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-2
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-3
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-4
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-5
AC-DC-MS-15 Dual Output With Led Industrial* dc Adapter Switch Mode Power Supply With KC, CE, 3C photo-6
US$ 2.2 - 4.3 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mseed
Model Number:
MS-15
Contact Supplier Request Quote Chat Now
Wenzhou Mseed Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mseed
Model Number MS-15
Output Power Other, 15W
Output Type Single
Input Voltage Other, 90-130VAC/170-260VAC
Output Voltage 5V/12V/24V
Output Frequency 50Hz
Output Current 1.25A
Product Details
Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-15
Output Power: 15W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC

Features

• Universal AC input / Full range
dc adapter 100-240v 50-60hz (desktop switching power supply)
• Protections:Short circuit/Over load/Over voltage
dve switching power supply
• Built-in cooling Fan ON-OFF control
110vdc switching power supply
• 100% full load burn-in test
24v 8a switching power supply
• Fixed switching frequency at 25KHz
18v switching power supply
• Load stability +/-0.5%
ac dc switching power supply
•Low ripple noise
dve switching power supply
•High withstand voltage insulation
switching model power supply
•Operation temperature high up to 70℃
switching power supply 220v 12v 50a
•Meet EN6147 standard, CE certificates
switching power supply 12v
•2-year warranty

atx 450w switching power supply

Parameters
Model
MS15-5
MS15-7.5
MS15-12
MS15-15
MS15-24
MS15-36
MS15-48
Input
Voltage Frequency
170-260VAC, 47-63Hz; 240-370VDC
Current
0.1A/230V
Efficiency(AC220V)
75%
77%
77%
76%
77%
78%
78%
Inrush Current
23A/230V 23A/230V at cold start
Output
Voltage
5V
7.5V
12V
15V
24V
36V
48V
Current
3A
2A
1.3A
1A
0.6A
0.4A
0.3A
Regulation Line
1%
1%
1%
1%
1%
1%
1%
Regulation Load
3%
3%
1%
1%
0.5%
0.5%
0.5%
Ripple Noise
≤50mVp-p
≤60mVp-p
≤60mVp-p
≤60mVp-p
≤150mVp-p
≤200mVp-p
≤300mVp-p
Temperature Drift
±0.03% / ℃(0-50℃)
Rated Power
15W
15W
15W
15W
15W
15W
15W
Rise&Holding Time
1s,100ms,50ms
Circuit Protection
Over Current Protection
Works at over 105%-120% of rating and recovers automatically
Over Voltage Protection
/
Over-Heat Protection
/
Withstand voltage Insulation
Input-Output
AC1500V;500VDC/100MΩ
Input-Case,FG
AC1500V;500VDC/100MΩ
Output-Case,FG
AC500V;500VDC/100MΩ
Environment
Operating Temp and Humid
(-10)℃- (+60)℃, 20%-90%RH
Storage Temp and Humid
(-20)℃- (+85)℃, 10%-95%RH
Vibration
10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety
Safety Regulation
IEC CE ROSH SAA KC
EMC
IEC / EN60950-1 EN61347-1:2008
IP
IP
IP22

Dimension



Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Factory Details
Why Choose Us

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.



•Treat your career as our career.
