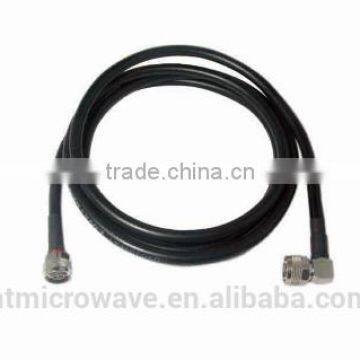

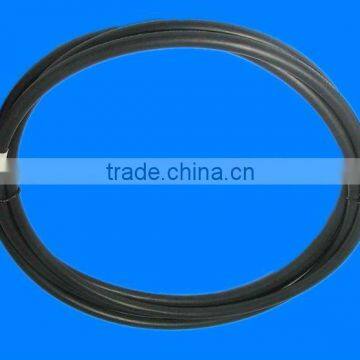

Help CenterRF 85-110MHz Coaxial Cable N-M/N-M Type Connector
Related Products
-
85-110MHz N-M/N-M Coaxial Feeder Cable AssemblyNegotiableMOQ: 100 Pieces -
RF Coaxial Jumper Cable With 7/16 DIN Male/Female Connector for 7/8 Testing CableNegotiableMOQ: 100 Pieces
-
RF Fitting Coaxial Cable 7/16 DIN Male/Female for 7/8 Feeder CableNegotiableMOQ: 100 Pieces
-
DC-3GHz 50ohm Telecom Parts Telecom Feeder Cable Sma Cable AssemblyNegotiableMOQ: 1
-
DC-3GHz 50ohm Telecom Parts Telecom Feeder Cable Cable AssemblyNegotiableMOQ: 1
Cable Assembly Applications:
1.Polyethylene Coaxial Cable Assemblies are used for equipment connection, base station transmitter, receiver and antenna connection between the main feeder and so on.
2.PTFE Coaxial Cable Assemblies are used for industrial and communication testing, devices jumper connection, indoor distribution and so on.
3.LD PTFE Cables are used for communication, digital transmission, microwave testing, military equipment, radio and television, research institute(high requirements about phase-precision, low-loss).
| 335 Cable Assembly--85-110MHz N-M/N-M |
| P/N:HT.CA-0121-2202 |
| Testing Cable Assembly specifications: |
| 1. Frequency Range(MHz): 85-110 |
| 2. VSWR(max): 1.10 |
| 3. Insertion Loss(dB):≤0.035xL+0.1 |
| 4. Connectors: N-M/N-M |
| 5. Cable Connection: Inner conductor welding, outer conductor welding |
| 6. Dimension(M): Per the customers' requirement |
| Cable Electrical & Mechanical specifications: |
| 1. Impedance(Ω): 50 2. Capacitance(Pf/M): 85.3 |
| 3. Time Delay(ns/m): 4.5 4. Withstanding Voltage(rms/min): 3000V |
| 5. Phase Stability: 6. Velocity of Propagation: 78% |
| 7. Operating Temp.(°c): -65- +200 8. Minimum Bend Radius(mm): 30 |
| 9. Temp. Phase Stability: 600PPM 10. Shielding Efficiency(dB): 110 |
| Cable Attenuation: |
| 1. Insulating Layer: Microhole PTFE 2. Inner Conductor(mm): φ2.26 |
3. Outer Diameter(mm): φ8.5 4. Attenuation(dB): 0.035 |
Who we are?
1. We have 20 years' experience in designing and production of RF/Microwave components.
2. Products are widely used in GSM, DCS, CDMA, 3G/4G communication system, satellite orientation, radar and military fields.
3. Over 16 series and 1000 designs products including Power Splitter, Directional Coupler, Hybrid Coupler/Combiner, Attenuator, Dummy Load/Termination, Connector/Adapter, Cable Assembly, Diplexer and Combiner.
Why Choose Us?
1. OEM/ODM, customers' design are available.
2. Sufficient stock for your urgent demand.
3. Within 12 hours' reply guarantee.
4. Fast delivery and volume production capacity.
