What is power divider? Power dividers (also power splitters and, when used in reverse, power combiners) are passive devices used in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.Power dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined.HTmicrowave offers 2-way,3-way and 4-way configurations fitted with N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining and weatherproofing.You can choose the best product solutions for your specific needs here.
|
| wideband micro wave passive component telecom parts 50 ohm 800-2700 mhz N and DIN type coax splitter |
HT POWER SPLITTER SERIES
1. Multiple-Band Frequency
2. 200 Watt, 300 Watt and 500 Watt Average Power
3. Minimal RF Insertion Loss
4. High Reliability, IP65 & IP67
5. Low Specified PIM
6. High Reliability
7. Economic price
8. ISO9001,ISO14000,SGS RoHS Compliant

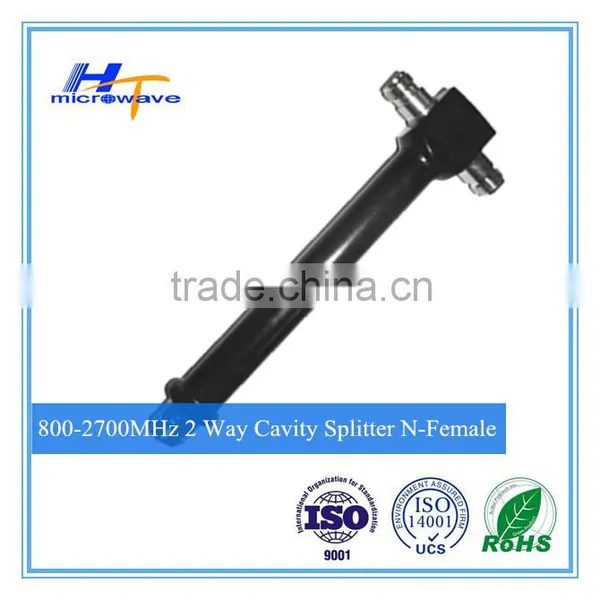

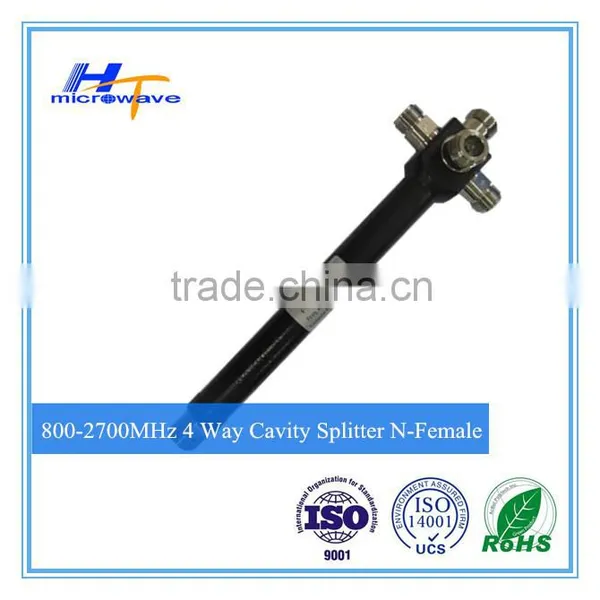

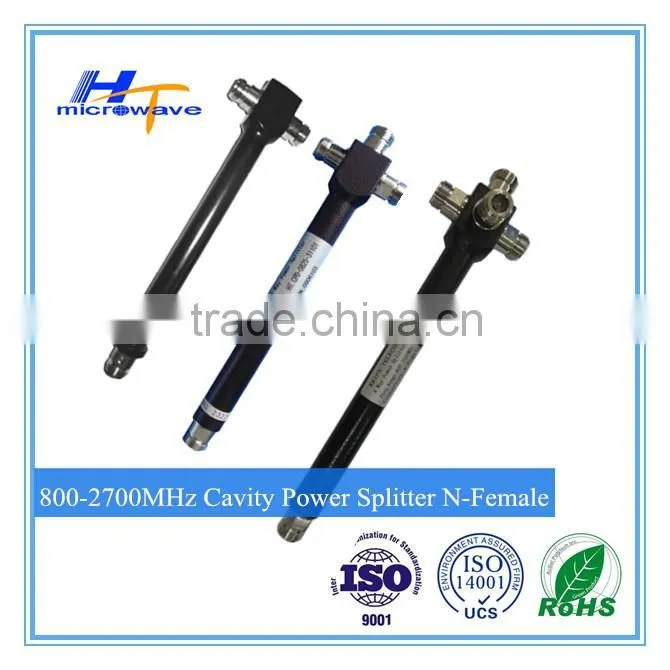

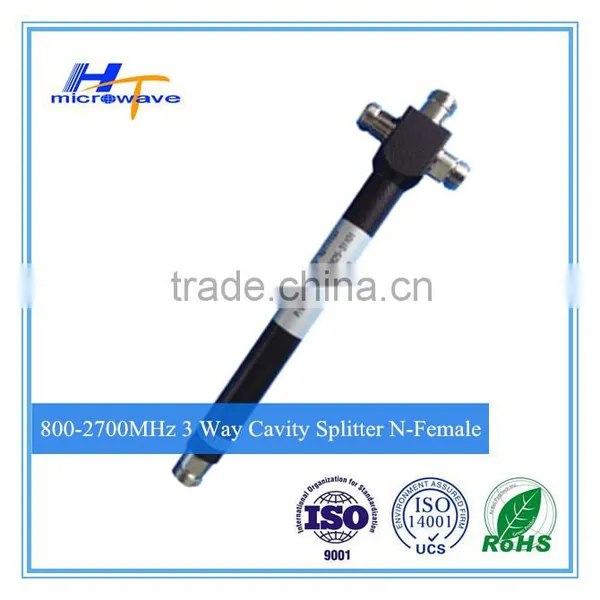

N Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz
| Electrical Specifications: | |||||||||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz | ||||||
| Split Way | 2way | 3way | 4way | 2way | 3way | 4way | 2way | 3way | 4way |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ||||||
| Insertion Loss(dB) | ≤3.3 | ≤5.2 | ≤6.3 | ≤3.3 | ≤5.2 | ≤6.4 | ≤3.3 | ≤5.2 | ≤6.5 |
| In-band Ripple(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | 50 | 50 | ||||||
| Connectors Type | N-Female | N-Female | N-Female | ||||||
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | Black Plated | Black Plated | ||||||
DIN Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz
| Electrical Specifications: | |||||||||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz | ||||||
| Split Way | 2way | 3way | 4way | 2way | 3way | 4way | 2way | 3way | 4way |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ||||||
| Insertion Loss(dB) | ≤3.3 | ≤5.2 | ≤6.3 | ≤3.3 | ≤5.2 | ≤6.4 | ≤3.3 | ≤5.2 | ≤6.5 |
| In-band Ripple(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | 50 | 50 | ||||||
| Connectors Type | DIN-Female | DIN-Female | DIN-Female | ||||||
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | Black Plated | Black Plated | ||||||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 7300m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
