Specifications
Aluminium Foil Container Making Machine:1.Pneumatic press
Pass ISO 9001:2008,CE
2.Equipped with various mould
Aluminium Foil Container Making Machine work flows:
Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould(as customer required)-- full-automatic stacker—Scrap Presser
Technical Data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6.5T (approximate) |
7.5T (approximate) |
Area |
7mx3.5m |
7.5mx3.5m |
Press Dimension |
1620x1050x2960MM |
1820x1250x3080MM |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine Feature:
1). Aluminium Foil Container Making Machine adopt a lot of imported brand electronic componets, like
SEIMENS PLC and sevo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision steps.
3).This machine equipped with a mould lifter to make sure changing the mould easily by the worker.
4).We can design and manufacture machine according to customer’s requirment and customer target price.
Welcome to Changyuan Machinery!!
Machine Pic:
Feeding part:
Press:

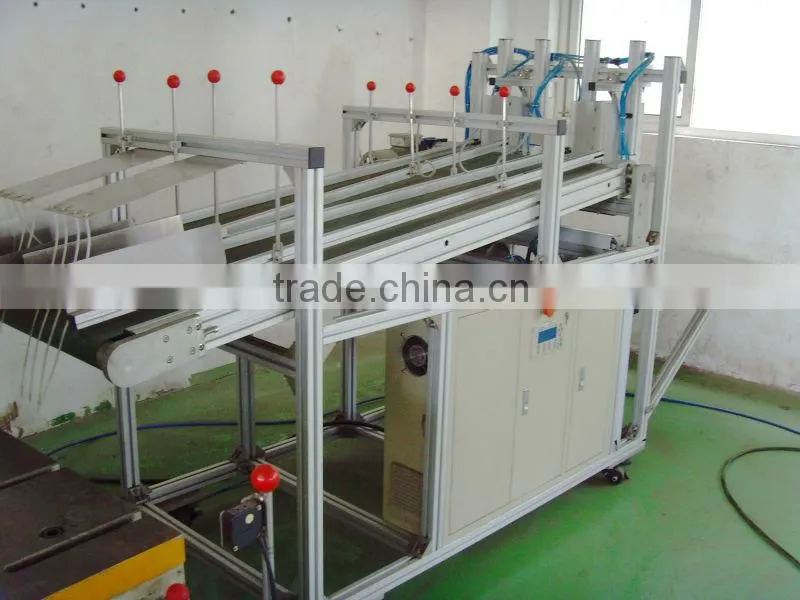

Auto stacker:
Aluminium Foil Container Making Machine can produce:
