Specifications
Aluminium Foil Container Production Line:1.Adopt Seimens Motor
Pass ISO 9001:2008
2.Fully Automatic,CE Standard
Aluminium Foil Container Production Line is fully automatic line,Adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:

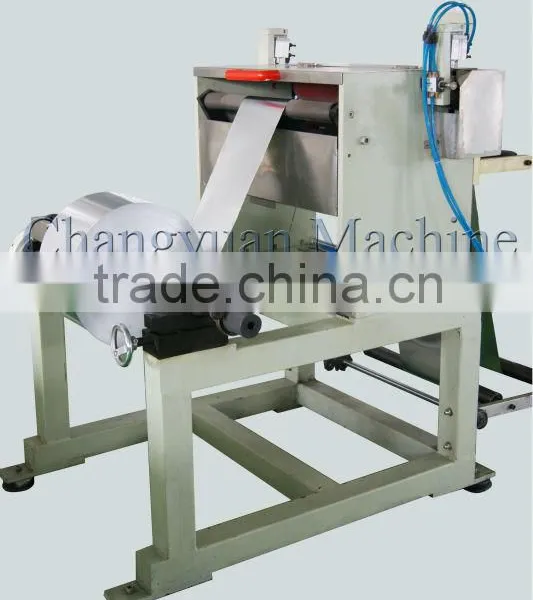

Auto-lubricated feeder -- control panel -- length controller-- 45T pneumatic press --mould-- full-automatic stacker—Scrap Presser

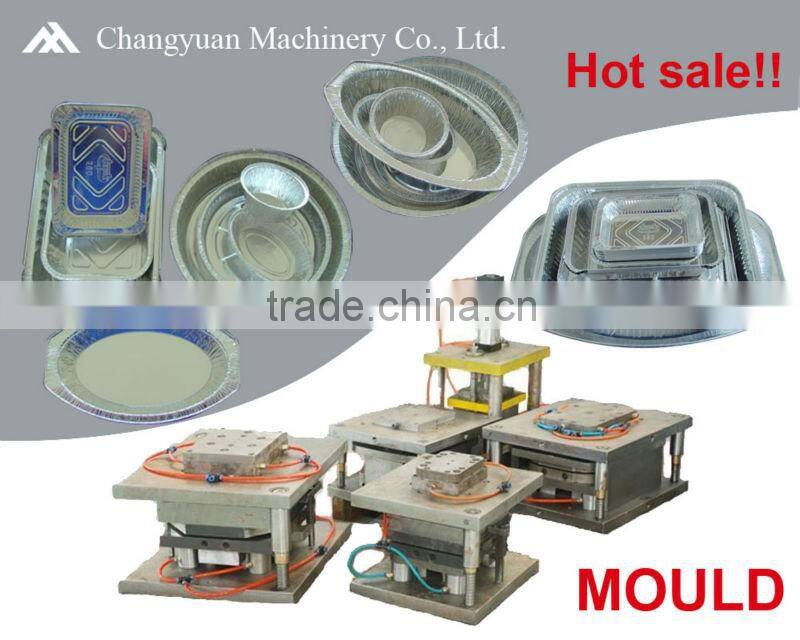

Mould
1: Mould has long service life, stable and reliable quality,reasonable design,high precision etcs.
2: Precision processing technics,aluminum foil container cutting ,forming ,stretching ,turned edge with one step forming.
Output:
We could offer 45tons/63tons/80tons and we could also design and make varied foil container mold, Output of the aluminum foil production line is around 40-75 containers/min, it is based on aluminum foil container size and complexity
1). CYAL-D-45T Aluminium Foil Container Production Line technical data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7.5mx3.5m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
Machine Part:
Feeding System:
Press:
Mould:

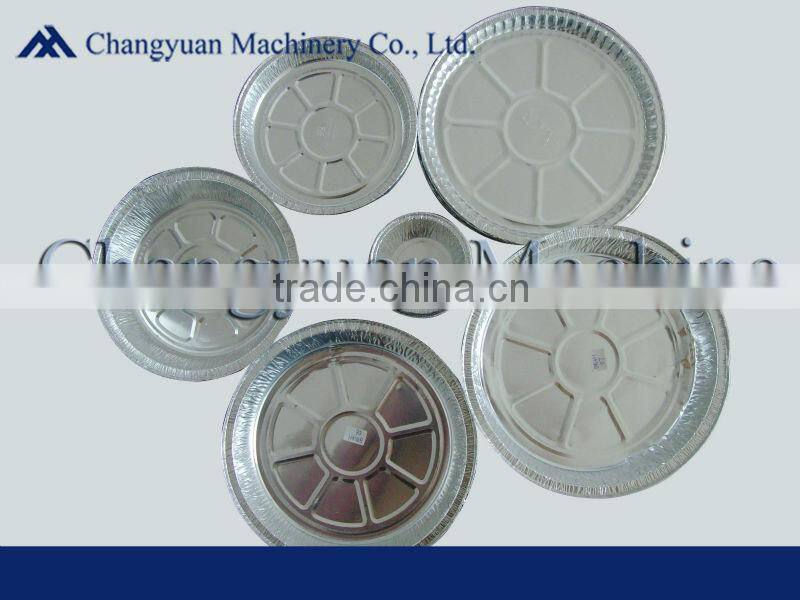

Aluminium Foil Container Making Machine can produce:
We can design and manufacture machine according to customer’s requirment and customer’s target price.
