RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector

RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-1
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-2
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-3
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-4
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-5
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector thumbnail-6
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-1
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-2
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-3
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-4
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-5
RF Passive 2 Way Power Splitter Divider 380-430MHz N Type Female Connector photo-6
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HTMICROWAVE
Model Number:
HT.CPD-0304-41101
Contact Supplier Request Quote Chat Now
HTMicrowave Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name HTMICROWAVE
Model Number HT.CPD-0304-41101

HTMICROWAVE CO.,LTD



RELATED PRODUCT



Reactive Power Splitters Directional Couplers Hybrid Couplers Hybrid Matrix Combiner Attenuators
RF Passive 2 way Power Splitter divider 380-430MHz N type female connector RF Passive 2 way Power Splitter divider 380-430MHz N type female connector RF Passive 2 way Power Splitter divider 380-430MHz N type female connector RF Passive 2 way Power Splitter divider 380-430MHz N type female connector RF Passive 2 way Power Splitter divider 380-430MHz N type female connector
Terminations Low PIM Attenuator& Terminations Antennas Cable Assembly Connectors & Adapters



HT POWER SPLITTER SERIES



Power splitters are used in a wide variety of applications and can satisfy almost any requirement where a signal

needs to be distributed or combined.HTMICROWAVE offers 2-way,3-way and 4-way configurations fitted with

N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.

This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude

and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.

Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining

and weatherproofing.You can choose the best product solutions for your specific needs here.



Micro-strip Power Splitter Series

800-2500MHz Micro-strip Power Splitter Series

698-2700MHz Micro-strip Power Splitter Series



Cavity Power Splitter Series/Dividers Series

800-2500MHz Cavity Power Splitter Series

800-2700MHz Cavity Power Splitter Series

698-2700MHz Cavity Power Splitter Series

698-3800MHz Cavity Power Splitter Series

380-2700MHz Cavity Power Splitter Series

300-900MHz Cavity Power Splitter Series

380-430MHz Cavity Power Splitter Series

470-800MHz Cavity Power Splitter Series



Base Station Power Splitters/Dividers Series

800-2500MHz DIN Type Power Splitter Series

698-2700MHz DIN Type Power Splitter Series

800-2700MHz DIN Type Power Splitter Series





FEATURES OF PRODUCT

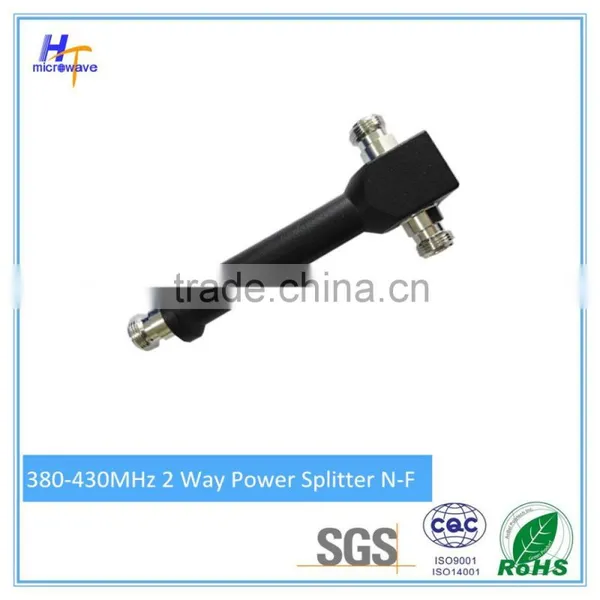

RF Passive 2 way Power Splitter divider 380-430MHz N type female connector

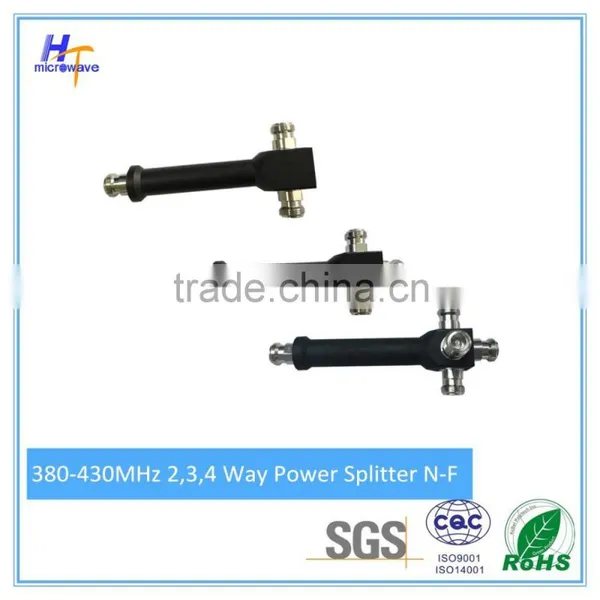

380-430MHz, 2,3,4 Way Power Splitter, N-Female



HT POWER SPLITTER SERIES

1. Multiple-Band Frequency
2. 200 Watt, 300 Watt and 500 Watt Average Power
3. Minimal RF Insertion Loss
4. High Reliability, IP65 & IP67
5. Low Specified PIM

6. High Reliability
7. Economic price
8. ISO9001,ISO14000,SGS RoHS Compliant


SPECIFICATION




N Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz

Electrical Specifications:
Frequency Range 800-2500MHz 800-2700MHz 698-2700MHz
Split Way 2way 3way 4way 2way 3way 4way 2way 3way 4way
VSWR ≤1.25:1 ≤1.25:1 ≤1.25:1
Insertion Loss(dB) ≤3.3 ≤5.2 ≤6.3 ≤3.3 ≤5.2 ≤6.4 ≤3.3 ≤5.2 ≤6.5
In-band Ripple(dB) ≤0.3 ≤0.4 ≤0.5 ≤0.3 ≤0.4 ≤0.5 ≤0.3 ≤0.4 ≤0.5
Average Power(W) 200/300/500 200/300/500 200/300/500
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50 50 50
Connectors Type N-Female N-Female N-Female
Operating Temp.(℃) -20~+55 -20~+55 -20~+55
Application For Indoor or Outdoor Use For Indoor or Outdoor Use For Indoor or Outdoor Use
Finish Black Plated Black Plated Black Plated



DIN Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz

Electrical Specifications:
Frequency Range 800-2500MHz 800-2700MHz 698-2700MHz
Split Way 2way 3way 4way 2way 3way 4way 2way 3way 4way
VSWR ≤1.25:1 ≤1.25:1 ≤1.25:1
Insertion Loss(dB) ≤3.3 ≤5.2 ≤6.3 ≤3.3 ≤5.2 ≤6.4 ≤3.3 ≤5.2 ≤6.5
In-band Ripple(dB) ≤0.3 ≤0.4 ≤0.5 ≤0.3 ≤0.4 ≤0.5 ≤0.3 ≤0.4 ≤0.5
Average Power(W) 200/300/500 200/300/500 200/300/500
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50 50 50
Connectors Type DIN-Female DIN-Female DIN-Female
Operating Temp.(℃) -20~+55 -20~+55 -20~+55
Application For Indoor or Outdoor Use For Indoor or Outdoor Use For Indoor or Outdoor Use
Finish Black Plated Black Plated Black Plated



PACKAGE AND TRANSPORTATION



RF Passive 2 way Power Splitter divider 380-430MHz N type female connector

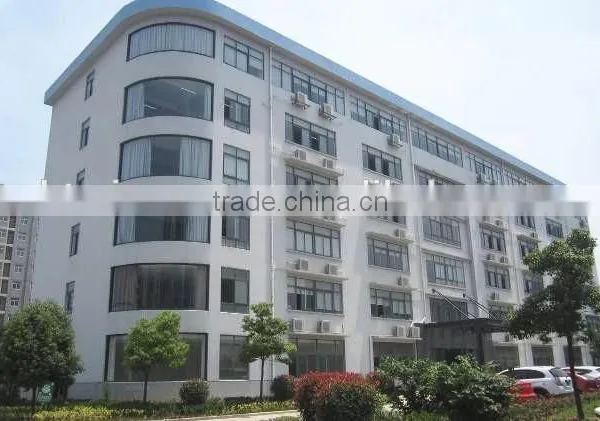

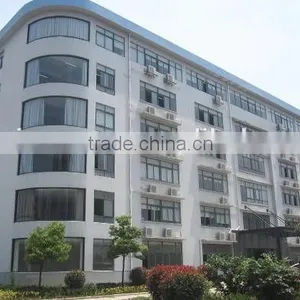

COMPANY FILE



HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3  subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

RF Passive 2 way Power Splitter divider 380-430MHz N type female connector

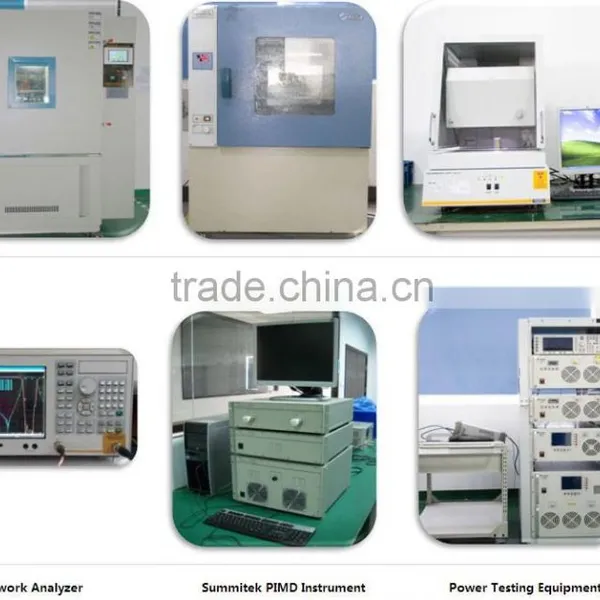

TESTING EQUIPMENT



RF Passive 2 way Power Splitter divider 380-430MHz N type female connector



OUR CUSTOMERS

RF Passive 2 way Power Splitter divider 380-430MHz N type female connector

FAQ



Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
