Help CenterNewest 800-2500MHz 4 in 4 Out 4:4 Hybrid Combiner IP65 Outdoor Use N Female
Related Products
-
Wideband rf Combiner 4 in 1 Out Passive Hybrid Coupler 800-2500MHz n FemaleNegotiableMOQ: 1 Set -
GSM 4 in 1 Out Power Combiner Microwave Passive Matrix Cominer 800-2500MHzNegotiableMOQ: 1 Set
-
GSM 4 in 4 Out Combiner 800-2500MHz rf Passive 4 Way Hybrid CombinerNegotiableMOQ: 1 Set
-
4 Way Power Combiner 800-2500MHz Microwave Passive Matrix Combiner 4 in 4 OutNegotiableMOQ: 1 Set
-
Microwave Passive rf Combiner 4 in 4 Out Matrix Combiner 800 - 2500MHz N TypeNegotiableMOQ: 5 Pieces

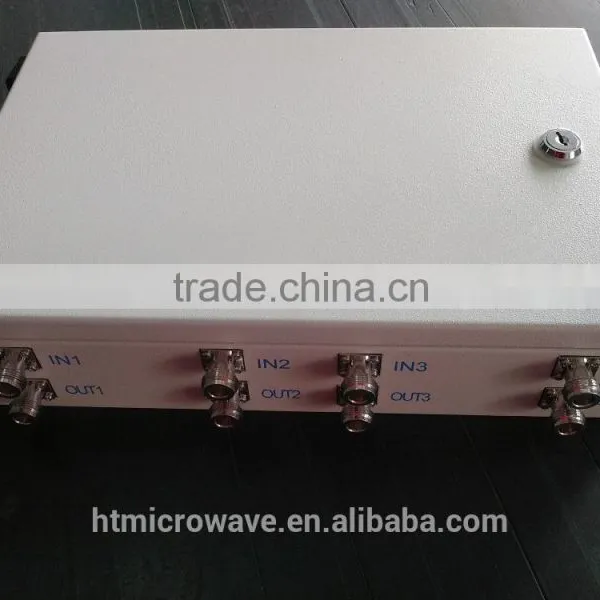

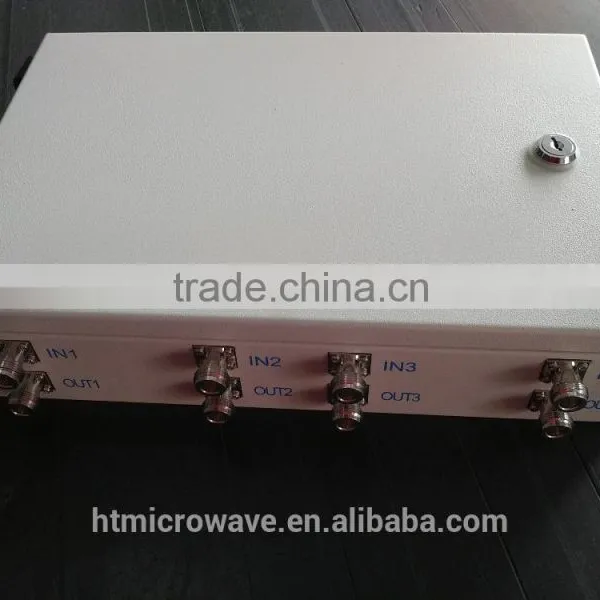

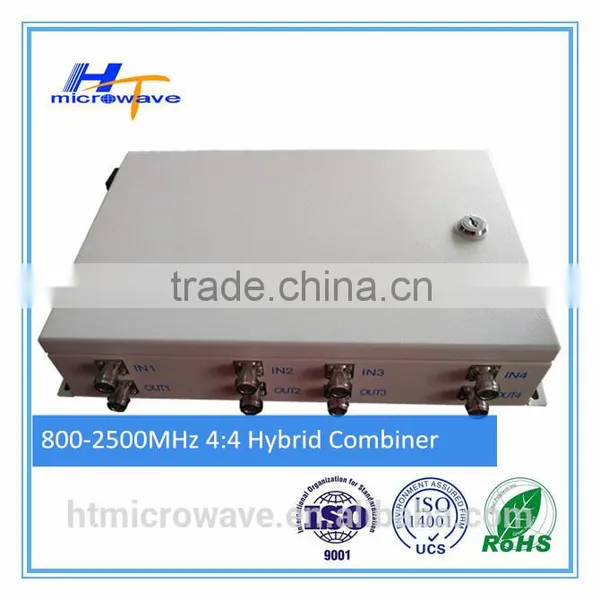

Hybrid Combiner 4:4 --800-2500MHz N-Female
Applications:
1. Mobile communication
2. Cluster communications, Satellite communications, HF communications, Frequency-hopping radio, etc.
| 4 In 4 Out Combiner--800-2500MHz N-F |
| P/N: HT.CDU-08251-41101 |

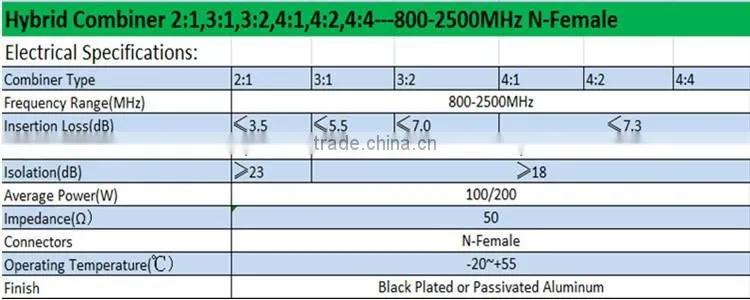

| Electrical Specifications: |
| 1. Frequency Range(MHz): 800-2500 |
| 2. Insertion Loss(dB): ≤7.2 |
| 3. Isolation(dB): ≥21 |
| 4. VSWR: ≤1.25:1 |
| 5. Input Power(W): 100 |
| 6. Impedance(Ω): 50 |
| 7. Connectors: N-Female |
| 8. Operating Temperature(°c): -25- +55 |
| 9. Dimension(mm): Refer to the drawing |
| 10. Finish: Passivated Aluminum |
Who we are?
1. We have 23 years' experience in designing and production of RF/Microwave components.
2. Products are widely used in GSM, DCS, CDMA, 3G/4G communication system, satellite orientation, radar and military fields.
3. Over 16 series and 1000 designs products including Power Splitter, Directional Coupler, Hybrid Coupler/Combiner, Attenuator, Dummy Load/Termination, Connector/Adapter, Cable Assembly, Diplexer and Combiner.
Why Choose Us?
1. OEM/ODM, customers' design are available.
2. Sufficient stock for your urgent demand.
3. Within 12 hours' reply guarantee.
4. Fast delivery and volume production capacity.
Transportation(By Sea, By Air, DHL, Fedex, TNT & EMS):
