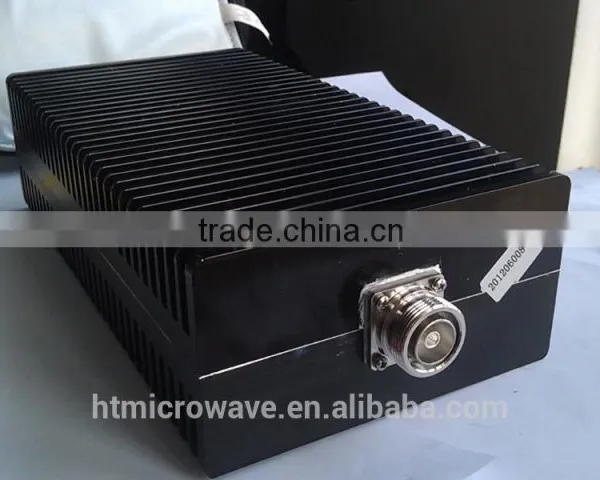

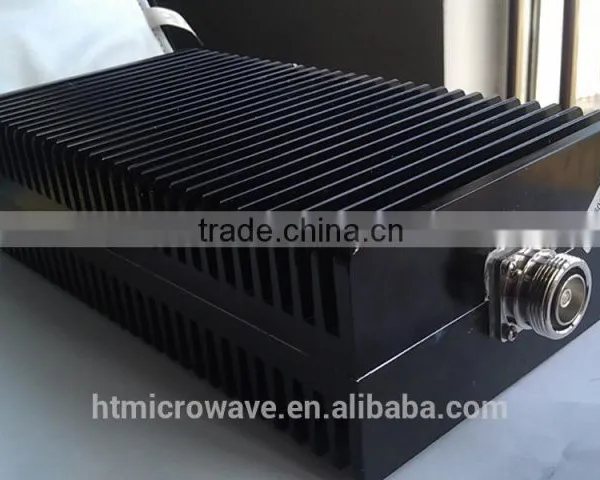

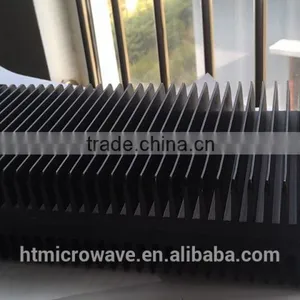

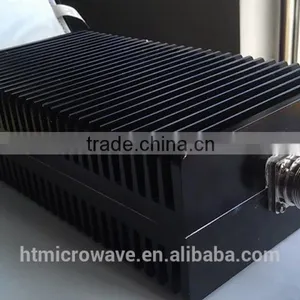

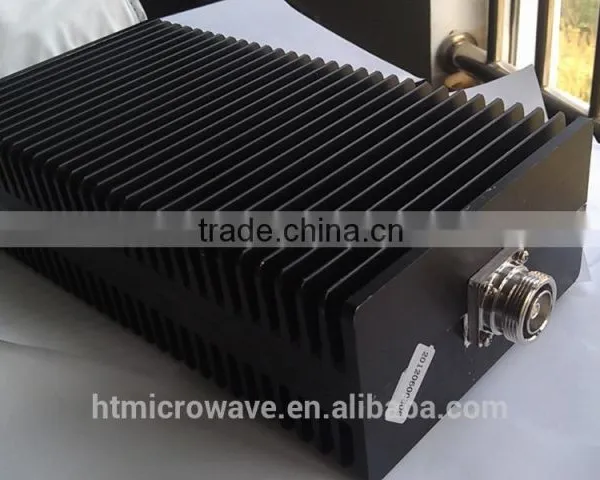

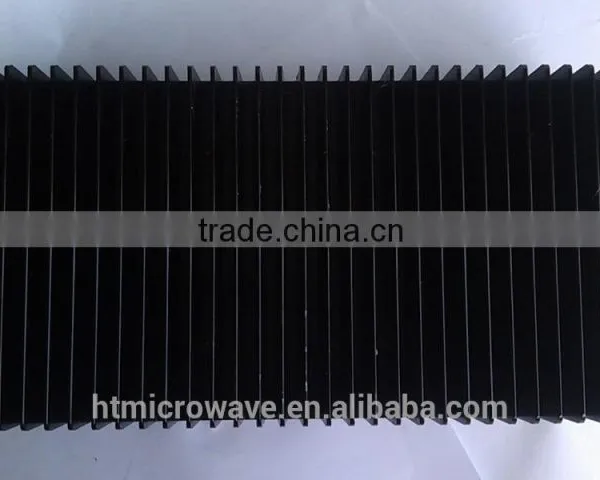

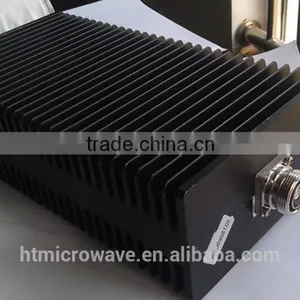

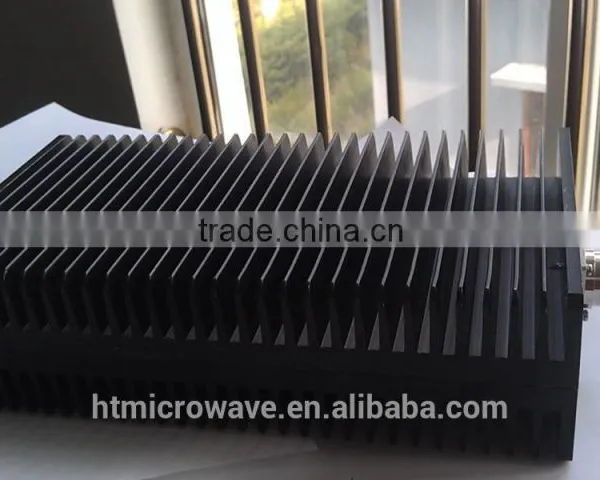

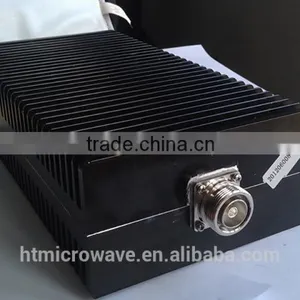

High Power N Female Type 50 Ohm Fixed Coaxial Dummy Termination Load 300W
- Shanghai ShenZhen
- T/T Money Gram
You May Like
-
RF Passive Device 150W Coaxial Termination Dummy Load N Male 50 Ohm
-
50 Ohm 5W RF Coaxial Termination / Dummy Load SMA Male Female
-
Low Power 2W RF Termination/Dummy Load N Male/female 50 Ohm DC-3Ghz
-
Low Pim -140dbc 150W Coaxial Termination Dummy Load N Male Connector
-
High Power N Female Male Type Coaxial Dummy Load 300w Termination
-
7/16 DIN Male/Female 50W Dummy Load Terminator Termination Load
Product Details
| Place of Origin | Anhui, China | Brand Name | HTMICROWAVE | |
| Model Number | HT.TER-034-300W-NM |
30pcs /carton;
Shipping Marks & Logo can be customized.
Product Description
HTMICROWAVE CO.,LTD
| | | | |
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| | | | |
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
Termination is designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.High power versions are used in transmitter applications as dummy loads.Termination offered by HTMICROWAVE are matched to 50 ohms characteristic impedance. A wide selection of terminations from stock ready for you just-in-time shipments.With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.Our terminations are designed to exceed commercial specifications.
1. Finned Termination
2. Powers 2W to 200W
3. Low Specified PIM
4. N and DIN Connectors
5. High Reliability
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant
High Power N Female Type 50 ohm Fixed Coaxial Dummy Termination Load 300W
Dummy Load-DC-3GHz 5/25/50/100/200W N,DIN type
| Electrical Specifications: | ||||||
| Power | 2W | 5W | 25W | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | |||||
| Impedance(Ω) | 50 | |||||
| VSWR | ≤1.2:1 | |||||
| PIM3(dBc) | ≤-120@2X33dBm | ≤-105@2X43dBm | ||||
| PIM5(dBc) | ≤-145@2X33dBm | ≤-120@2X43dBm | ||||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | |||||
| Operating Temp.(℃) | -20~+55 | |||||
| Humidity | ≤95% | |||||
| Dimension(mm) | Φ16X30 | Φ16X30 | Φ50X68 | Φ50X105 | 146X100X60 | 226X142X64 |
Low PIM Dummy Load-DC-3GHz 50/100/200W N,DIN type
| Electrical Specifications: | |||
| Power | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | ||
| Impedance(Ω) | 50 | ||
| VSWR | ≤1.25:1 | ||
| PIM3(dBc) | ≤-150@2X43dBm | ||
| PIM5(dBc) | ≤-160@2X43dBm | ||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | ||
| Operating Temp.(℃) | -20~+55 | ||
| Humidity | ≤95% | ||
| Dimension(mm) | 185X142X54 | 185X142X54 | 185X142X80 |
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 7300m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Company Profile
HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China. We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies. Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome. We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes. We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
