Help CenterN Type Termination Load 5W, DC-3GHz N-male
Related Products
-
RF Microwave 2W RF Termination/Dummy Load N Male/female Indoor Outdoor UseNegotiableMOQ: 1 Piece -
Passive Device 25W RF Dummy Load /Termination Load N-Female/N-Male DC-3GhzNegotiableMOQ: 1 Piece
-
100w RF Microwave Terminatior/Dummy Load /Termination Load N Female/maleNegotiableMOQ: 1 Piece
-
50w RF Fixed Coaxial Termination/Dummy Load N Female/male IP65 WarterproofNegotiableMOQ: 1 Piece
-
RF Microwave Components Termination Dummy Load 10W SMA-Male/FemaleNegotiableMOQ: 1 Piece
N type Termination Load 5W, DC-3GHz N-male
RELATED PRODUCTS
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
1.TERMINATIONS
Termination designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its
characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave
device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.High power versions are used in transmitter applications as dummy loads.Termination offered by HTMICROWAVE are matched to 50 ohms characteristic impedance.
A wide selection of terminations from stock ready for you just-in-time shipments.With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.Our terminations are designed to exceed commercial specifications.
Features:
1. Wide Frequency Range
2. Low VSWR
3. Powers 2W to 300W
4. N and DIN Connectors
5. Indoor and Outdoor Models
6. Designed for wireless applications
7. Certification: ISO9001,ISO14000,SGS, ROHS
2.SPECIFICATIONS

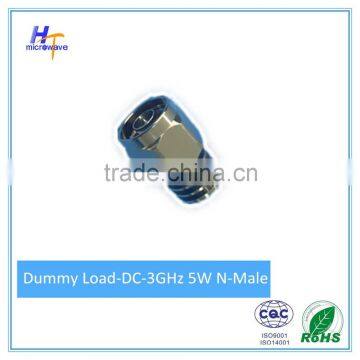

Dummy Load-DC-3GHz 5/25/50/100/200W N,DIN type
| Electrical Specifications: | ||||||
| Power | 2W | 5W | 25W | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | |||||
| Impedance(Ω) | 50 | |||||
| VSWR | ≤1.2:1 | |||||
| PIM3(dBc) | ≤-120@2X33dBm | ≤-105@2X43dBm | ||||
| PIM5(dBc) | ≤-145@2X33dBm | ≤-120@2X43dBm | ||||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | |||||
| Operating Temp.(℃) | -20~+55 | |||||
| Humidity | ≤95% | |||||
| Dimension(mm) | Φ16X30 | Φ16X30 | Φ50X68 | Φ50X105 | 146X100X60 | 226X142X64 |
Low PIM Dummy Load-DC-3GHz 50/100/200W N,DIN type
| Electrical Specifications: | |||
| Power | 50W | 100W | 200W |
| Frequency Range | DC-3GHz | ||
| Impedance(Ω) | 50 | ||
| VSWR | ≤1.25:1 | ||
| PIM3(dBc) | ≤-150@2X43dBm | ||
| PIM5(dBc) | ≤-160@2X43dBm | ||
| Connectors Type | N-Male,N-Female,DIN-Male,DIN-Female | ||
| Operating Temp.(℃) | -20~+55 | ||
| Humidity | ≤95% | ||
| Dimension(mm) | 185X142X54 | 185X142X54 | 185X142X80 |
