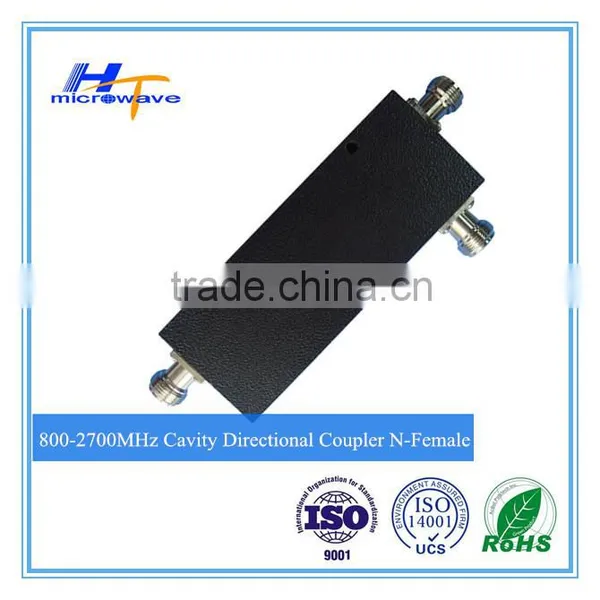

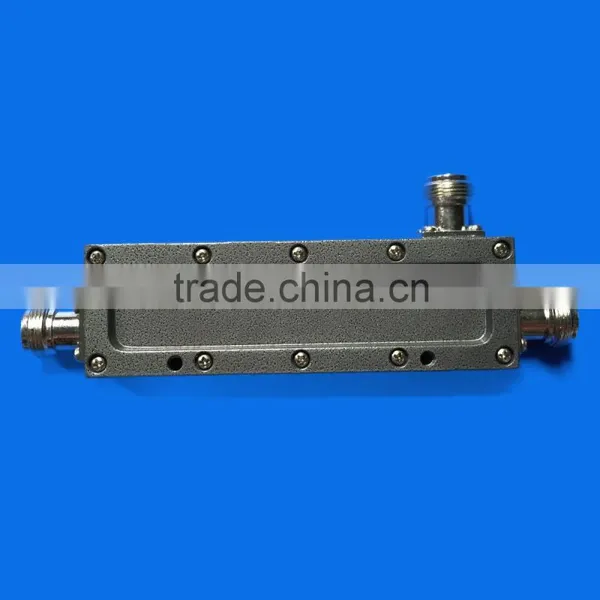

Directional Coupler---800-2700MHz Cavity Type N-Female
Features:
1. Wide Frequency Range;
2. Excellent Coupling Flatness;
3. Low Insertion Loss;
4. Low VSWR;
5. High Directivity/Isolation.
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
| Directional Coupler---800-2700MHz Cavity type |
P/N: HT.ACP-0827-XX1101 (XX indicates coupling value) |

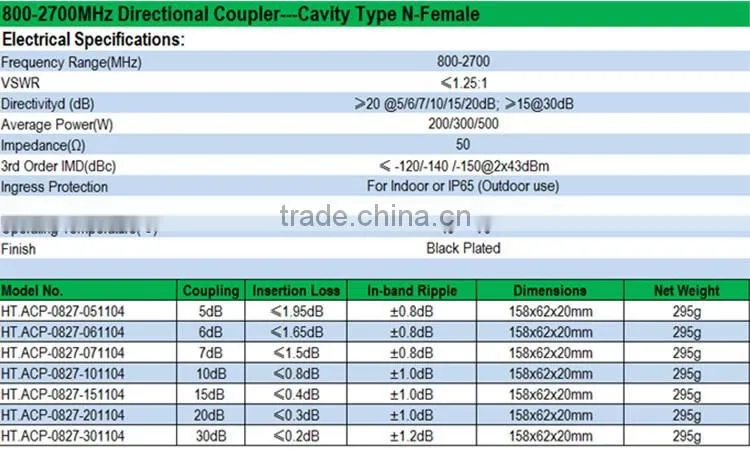

Electrical Specifications: |
1. Frequency Range(MHz): 800-2700 |
2. Coupling(dB): 6 8 10 12 15 20 30 |
3. In-band Ripple(dB): ±1.0 ±1.2 ±1.2 ±1.2 ±1.5 ±1.5 ±1.6 |
4. Insertion Loss(dB): ≤1.65 ≤1.1 ≤0.8 ≤0.6 ≤0.21 ≤0.21 ≤0.1 |
5. VSWR: ≤ 1.3:1 |
6. Directivity(dB): ≥20 |
7. Impedance(Ω): 50 |
8. Average Power(W): 200 |
9. Connectors: N-Female |
10. Operating Temperature(°c): -40- +70 |
11. Dimension(mm): Refer to the drawing |
12. Finish: Black plated |
