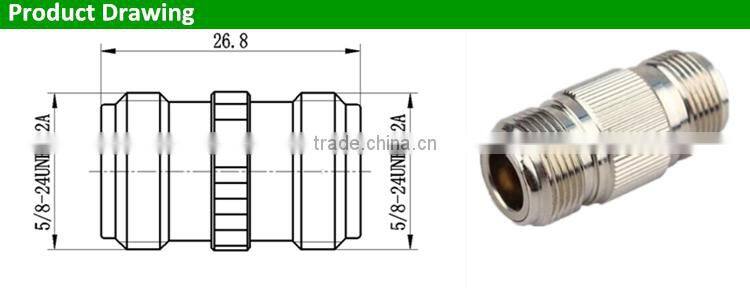

RF N Type Female Male Antenna Connector for Cable DC-3Ghz
- Shanghai
- T/T Money Gram
You May Like
-
DC-3GHz DIN Type 7/16 RF IP65 Waterproof Coaxial Connector
-
RF Warterproof DIN-Male/N-Male Power 7/16 Connector DC-3GHz 50 Ohm
-
RF IP65 Waterproof N-F/N-F Female Type Coaxial Cable Connector DC-3GHz
-
RF Power N Male N-m N-j Connector for 1/2" Cable IP65 Waterproof
-
RF Adaptor N-F/N-M N Male/Female Connector for 1/4" RF Cable
-
RF DC-11GHz N-M N-J Type N Male Connector for 1/2 Cable Used
Product Details
| Place of Origin | Anhui, China | Brand Name | HTMICROWAVE | |
| Model Number | N-50KK |
Shipping Mark & Logo can be customized.
Product Description
HTMICROWAVE CO.,LTD
| | | | |
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| | | | |
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
Coaxial connector&adapter are used between equipment and equipment,equipment and compoments,parts and components to achieve the mechanical performance of the various parts of the transmission of electrical signals,and can be used for scientific research,electromagnetic confrontation,aerospace,precision measurement and other microwave fields.We can provide research and development,design,field mapping,routing and structural optimization to provide the full range of solutions and services based on customers special requirements.
| HT CONNECTOR&ADAPTER SERIES |
1. Multiple-Band Frequency
2. Good shielding performance
3. Low VSWR;Low attenuation
4. Meet intermodulation requirements
5. High Reliability
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant
HT Connector&Adapter
| Frequency Range | DC-11GHz | ||
| Inner conductor withdrawal force | ≥0.56N | ||
| Contact R | Inner Conductor | ≤10mΩ | |
| Outer Conductor | ≤2.5mΩ | ||
| Insulation Resistance | ≥5000mΩ | ||
| Withstand Voltage | Sea Level | 2500V | |
| 5.4KPa | 400V | ||
| VSWR | Straight | 0-3GHz | ≤1.15 |
| >3~11GHz | ≤1.3 | ||
| Bend | 0-3GHz | ≤1.2 | |
| >3~11GHz | ≤1.35 | ||
| Impedance | 50W | ||
| Mechanical Endurance | 500times | ||
| Operating Temp. | -55~+155℃ | ||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 7300m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Company Profile
HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China. We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies. Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome. We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes. We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
