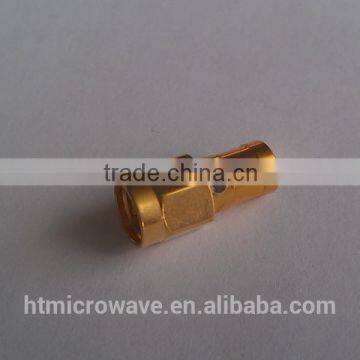

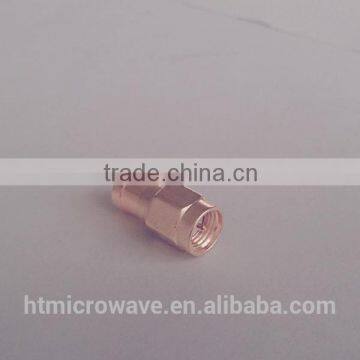

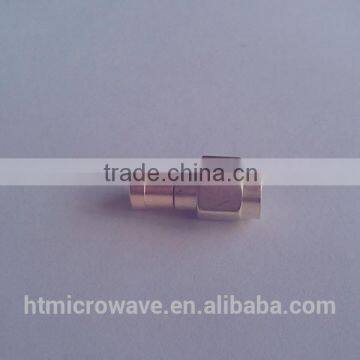

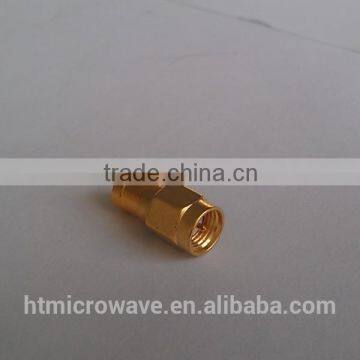

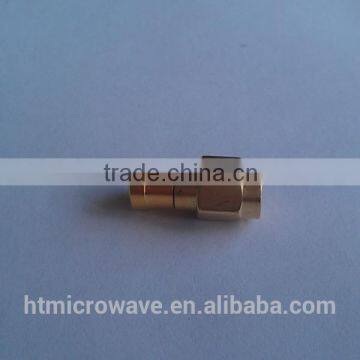

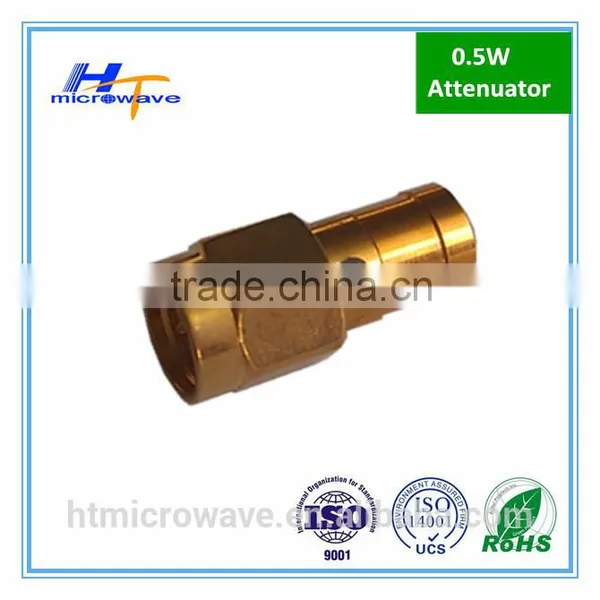

RF Fixed Coaxial attenuator 0.5W SMA-Male / SMA-Female
Fixed Coaxial Attenuator—DC-3GHz 0.5W SMA-M/SMA-F |
P/N: HT.ATT-03XX-014301(XX indicates Attenuation value) |
|
Electrical Specifications: |
1. Frequency Range(GHz): DC-3 |
2. Attenuation Value(dB): 1 3 10 15 20 |
3. Accuracy(dB): ±0.2 ±0.4 ±0.8 ±0.8 ±0.8 |
4. VSWR(max): 1.2:1 |
5. Average Power (W): 0.5 |
6. Peak Power: 5µs: 0.5KW |
7. Impedance (Ω): 50 |
8. Connectors: SMA-Male / SMA-Female |
9. Operating Temperature (°C): -40~+50 |
10. Dimension (mm): Refer to the drawing |
11.Net Weight (g): 45 |
12. Finish: Passivated Aluminum |
HT Microwave Co., Ltd., established in 1992, is an ISO9001:2000 certified company and a leading microwave/RF component manufacturer and designing company.
Our products are widely used in GSM,DCS,CDMA,3G communication system, satellite orientation, radar and military fields, including 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator, Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
