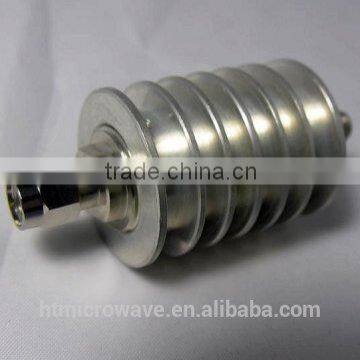

Help Center50 Ohm 5 Watt RF SMA Type Fixed Coaxial Attenuator Male to Female
Related Products
-
1 Watt RF Coaxial Hybrid Attenuator 10dB N-Male / N-Female TypeNegotiableMOQ: 1 Piece -
RF Fixed Coaxial Attenuator-DC-3GHz 2 Watt N-Male/N-Female ConnectorNegotiableMOQ: 1 Piece
-
800-2700MHz N Male Female Type DC-3GHz rf Fixed Coaxial Attenuator 1WNegotiableMOQ: 1 Piece
-
China Supplier 1W RF Coaxial Attenuator 1-20dB N-Male / N-Female DC-3GHzNegotiableMOQ: 1 Piece
-
10W RF SMA Type Fixed Coaxial Attenuator Male to Female Connector 3ghzNegotiableMOQ: 100 Pieces
Features:
1. Wideband Coverage;
2. Flat Attenuation Value;
3. Excellent VSWR;
4. Small size;
5. Full Power Input at Either Connectors Without Damage.
Applications:
1. Communication, radar and in-door distribution system;
2. Impadance matching.
| RF Fixed Coaxial Attenuator--DC-3G 5W SMA-M/SMA-F |
| P/N: HT.ATT-03XX-054302 (XX indicates attenuation value) |
| Electrical Specifications: |
| 1. Frequency Range(GHz): DC-3 |
| 2. Attenuation Value(dB): 3 5/6/7 10/15/20 30 |
| 3. Accuracy(dB): ±0.4 ±0.7 ±0.8 ±0.9 |
| 4. VSWR: 1.2:1 |
| 5. Average Power(W): 5 |
| 6: Impedance(Ω): 50 |
| 7. Connectors: SMA-Male/SMA-Female |
| 8. Operating Temperature(°c): -30- +50 |
| 9. Dimension(mm): 60 x φ19 |
| 10. Weight(g): 45 |
HT Microwave Co., Ltd., established in 1992, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturer and designing company.
Our products are widely used in GSM,DCS,CDMA,3G communication system, satellite orientation, radar and military fields.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator, Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
