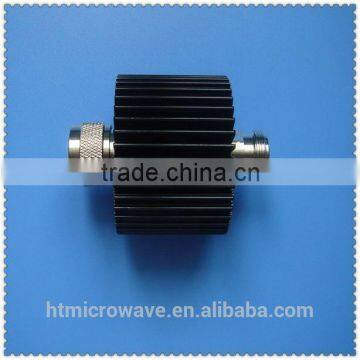

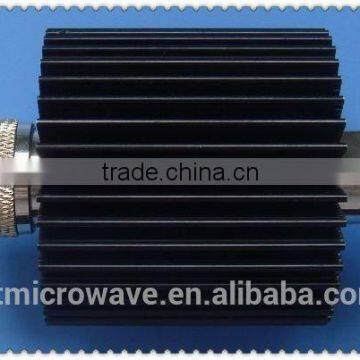

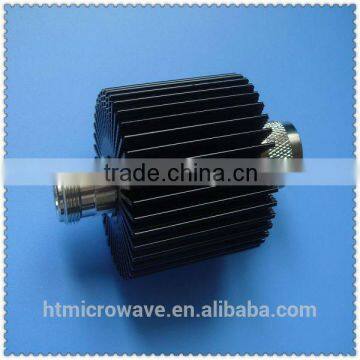

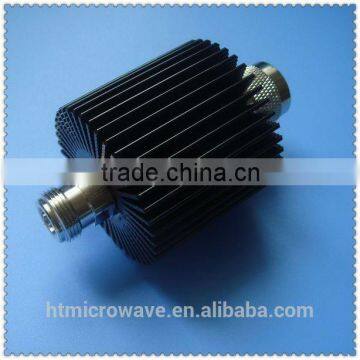

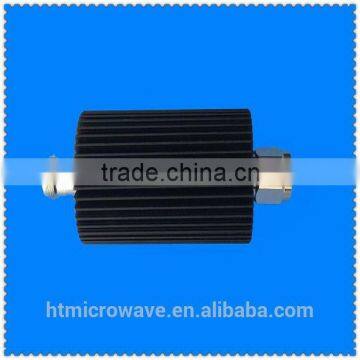

Coaxial Attenuator-DC-3GHz 25W N-M/N-F
RF Fixed Coaxial Attenuator Features
1. Wideband Coverage;
2. Flat Attenuation Value;
3. Excellent VSWR;
4. Full Power Input at Either Connectors Without Damage.
ISO 9001:2000 certified standard & custom manufacturer
Applications:
Communication, radar, and indoor distribution system.
Impedance matching
| Coaxial Attenuator-DC-3GHz 25W N-M/N-F | |||||
| Electrical Specifications: | |||||
| P/N: | HT.ATT-03XX-252101-6 (XX indicates Attenuation value) | ||||
| (Available with DC-4G & DC-6G) | |||||
| Frequency Range(GHz) | DC-3 | ||||
| Attenuation Value(dB) | 3 | 5/6 | 10/15 | 20 | 30 |
| Accuracy(dB): | ±0.4 | ±0.5 | ±0.7 | ±0.8 | ±1.0 |
| VSWR(max) | 1.2:1 | ||||
| Average Power (W) | 25 | ||||
| Connectors | N-Male / N-Female | ||||
| Impedance(Ω) | 50 | ||||
| Net Weight (g) | 180 | ||||
| OperatingTemperature(°C) | -40~+70 | ||||
| Dimension(mm) | Refer to the drawing | ||||
HT Microwave Co., Ltd., established in 1992, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturer and designing company.
Our products are widely used in GSM,DCS,CDMA,3G communication system, satellite orientation, radar and military fields.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator, Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Why Choose Us?
1. OEM/ODM, customers' design are available.
2. Sufficient stock for your urgent demand.
3. Within 12 hours' reply guarantee.
4. Fast delivery and volume production capacity.
Transportation(By Sea, By Air,DHL, Fedex, TNT & EMS):
