RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps

RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-1
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-2
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-3
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-4
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-5
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps thumbnail-6
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-1
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-2
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-3
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-4
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-5
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for Wireless Apps photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
HTMICROWAVE
Model Number:
HT.TER-034-100W-DIN
Contact Supplier Request Quote Chat Now
HTMicrowave Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name HTMICROWAVE
Model Number HT.TER-034-100W-DIN

HTMICROWAVE CO.,LTD



RELATED PRODUCT



Reactive Power Splitters Directional Couplers Hybrid Couplers Hybrid Matrix Combiner Attenuators
RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps
Terminations Low PIM Attenuator& Terminations Antennas Cable Assembly Connectors & Adapters



HT ATTENUATOR SERIES



Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers,reduce singal levels to detectors,match circuits and are used daily in lab applications to aid in product design.Attenuators are also used to balance out transmission linesthat otherwise would have unequal signal levels.HTMICROWAVE offers a wide selection of attenuators designed to exceed commercial specifications.Standdard attenuation values of 3,6,10,20 and 30dB are available from stock.Power ratings are 2,5,10,25,50,100watts.



FEATURES OF PRODUCT



RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps
Coaxial Attenautor, DC-3GHz, 2,5,10,25,50,100,200W, N and DIN Connector



HT Coaxial Attenuator

1. Multiple-Band Frequency
2. 5/25/50/100/200W Average Power
3. Low VSWR, Low Specified PIM,Low in-band ripple,
4. High Reliability
5.Anti-Pulse,Anti-burnout
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION


HT Coaxial Attenuator-DC-3GHz 5/25/50/100/200W N-M/N-F

Electrical Specifications:
Power 5W 25W 50W 100W 200W
Frequency Range DC-3GHz
Attenuation Value(dB) 3/6/10/15/20/30
In-band Ripple(dB) ≤0.3/≤0.5/≤0.7/≤0.8/≤1.0/≤1.2
Impedance(Ω) 50
VSWR ≤1.2:1
PIM3(dBc) ≤-120@2X33dBm ≤-105@2X43dBm
PIM5(dBc) ≤-145@2X33dBm ≤-120@2X43dBm
Connectors Type N-Male,N-Female
Operating Temp.(℃) -20~+55
Humidity ≤95%
Dimension(mm) Φ19X57 Φ50X84 Φ50X120 165X100X60 245X142X64



PACKAGE AND TRANSPORTATION



RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps

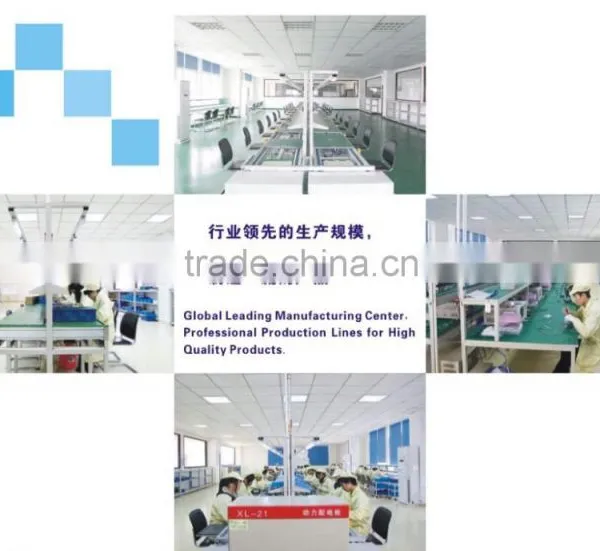

COMPANY FILE



HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3  subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps

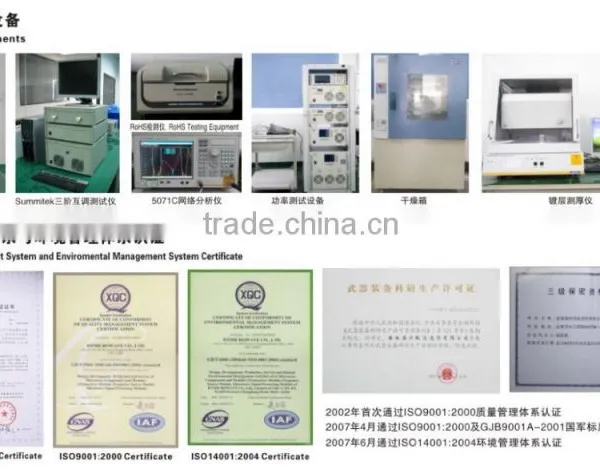

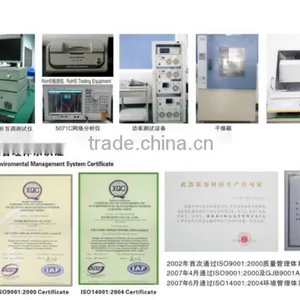

TESTING EQUIPMENT



RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps



OUR CUSTOMERS

RF Coaxial Attenuator,100Watts, DC-3GHz, DIN Connector, for wireless apps

FAQ



Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
