Home > Products > Folder gluer machine > ZH-800A/880C/880/1000 automatic small box folder gluer

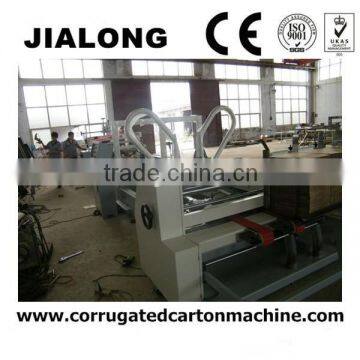

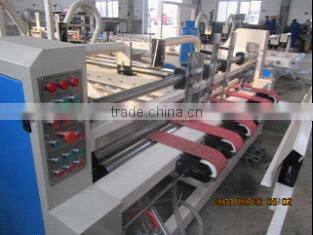

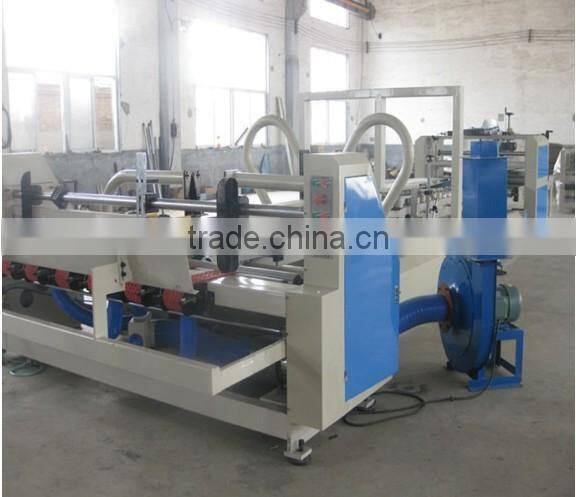

ZH-800A/880C/880/1000 automatic small box folder gluer
- 5 Carton / Cartons per Month
- tianjin
- T/T
-
Non-woven PUR Hot Melt Laminating Machine for Fabric/film/garment/sofa/mattress/underwear
-
Automatic PUR Hot Melt Laminating Machine for medical fabric laminating machine
-
PUR hot melt Laminating Machine for automotive interior parts lamination
-
PUR hot melt laminating machine for Nonwoven/Film/foam/Fabric/EVA/PU/PP
-
Automatic Hot Melt Coating Machine for medical fabric laminating machine
-
Fabric/film/non-woven Hot Melt Coating Machine for garment/sofa/mattress/underwear
Product Details
| Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Film |
| Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V | Power: | 7.45kw | Place of Origin: | Hebei, China |
| Brand Name: | JIALONG | Model Number: | JL-2000 | Dimension(L*W*H): | 5200X1820X1500 |
| Weight: | 4000kg | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PRODUCT INTRODUCTION:
ZH-800/800C/880C/1000 is the company's main push ordinary type folder gluer,its stability,versatility and flexibility are the user's praise. Small to large box can paste. For small boxes,it can make 40,000 to 50,000 pcs.per hour lt is an ideal equipment for printing industry.
CHARACTERISTICS:
Line speed:0~220 m/min continuous adjustment.
Usage paper:210~600g/m2 Paperboard.
The box forming:Either side folds,the both sides prefold and either
side glue.
Paper feeding:Automatic feeding
Binder:Dissolve glue.
Electric:Single-phase AC220V 2.2KW
Weight:1800kg
Dimension:5800×900×1300mm
The counting range:0~999999(full-auto matic)
Technique parameter:
Model | AMax | AMin | BMax | BMin | CMax | CMin | Weight |
ZH-800 | 560mm | 105mm | 550mm | 50mm | 270mm | 50mm | 1.5T |
ZH-800C | 560mm | 65mm | 550mm | 50mm | 270mm | 30mm | 1.5T |
ZH-880 | 660mm | 105mm | 550mm | 80mm | 330mm | 50mm | 2.0T |
ZH-1000 | 760mm | 130mm | 600mm | 80mm | 380mm | 60mm | 2.3T |
Model | Use the amount of electricity | Governor extent | Contour dimension |
ZH-800 | 220v 2.2kw | 0~220m/min | 5800×900×1300mm |
ZH-800C | 220v 2.2kw | 0~220m/min | 5800×900×1300mm |
ZH-880 | 220v 2.2kw | 0~220m/min | 5800×1050×1300mm |
ZH-1000 | 220v 2.2kw | 0~220m/min | 5800×1200×1300mm |
Contact Us
- Dongguang Jialong Packaging Machinery Factory
- Contact nameJackie He
- Phone0086-317-7800200
- AddressSouth Development Zone, Dongguang County
-
