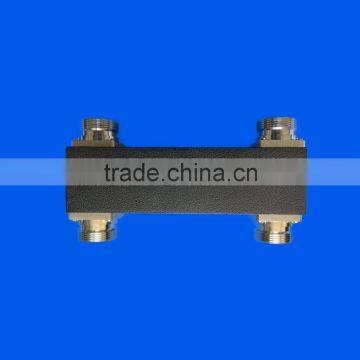

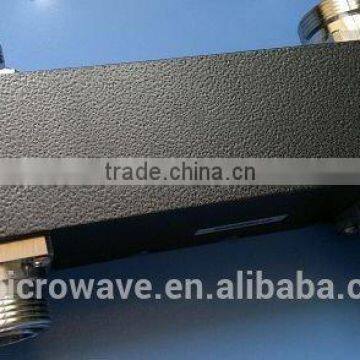

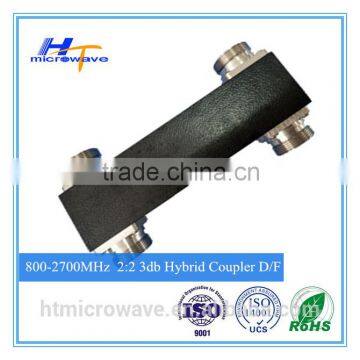

RF reactive DC-3GHz 698-2700MHz BST DIN Type 2 in 2 out 3dB Hybrid Coupler

Name: RF reactive DC-3GHz 698-2700MHz BST DIN Type 2 in 2 out 3dB Hybrid Coupler
Brand: HTMICROWAVE
Price: USD $33 - 35 / Piece

FOB Price

USD $33 - $35 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shanghai ShenZhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Anhui, China

Brand Name:

HTMICROWAVE

Model Number:

HT.HCP-0727-033301

Packaging Details

50pcs/Carton;
Shipping Marks & Logo can be customized.

Product Description

HTMICROWAVE CO.,LTD

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Terminations	Low PIM Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

HT 3DB HYBRID COUPLER SERIES

3dB Hybrid coupler is used to sample the microwave signal which is prescribed in the regulations.Its most important function is the microwave signal of road and shunt can be input power equal to the out put port.Mainly used in repeater station or base station of power combiner and a branch,also can be used in indoor distribution system power combining and dividing.

N Type Cavity 3dB Hybrid Coupler Series

800-2500MHz 2 in 1 out 3dB Hybrid Coupler

800-2500MHz 2 in 2 out 3dB Hybrid Coupler

698-2700MHz 2 in 2 out 3dB Hybrid Coupler

800-2700MHz 2 in 2 out 3dB Hybrid Coupler

DIN Type 3dB Hybrid Coupler Series

800-2500MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

698-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

800-2700MHz DIN Type 2 in 2 out 3dB Hybrid Coupler

FEATURES OF PRODUCT

RF reactive DC-3GHz 698-2700MHz BST DIN Type 2 in 2 out 3dB Hybrid Coupler

HT 3DB HYBRID COUPLER SERIES

1. Multiple-Band Frequency
2. Low Specified PIM

3. High Isolation,Low VSWR and Loss

4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION

HT N type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	100/200/300	100/200/300	100/200/300
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	N-Female	N-Female	N-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

HT DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range	800-2500MHz	800-2700MHz	698-2700MHz
VSWR	≤1.2:1	≤1.25:1	≤1.25:1
Insertion Loss(dB)	≤3.5	≤3.5	≤3.5
In-band Ripple(dB)	≤0.5	≤0.5	≤0.6
Isolation(dB)	≥25	≥25	≥25
Average Power(W)	200/300/500	200/300/500	200/300/500
3rd Order IMD(dBc)	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm	≤-120/-140/-150@2X43dBm
Impedance(Ω)	50	50	50
Connectors Type	DIN-Female	DIN-Female	DIN-Female
Operating Temp.(℃)	-20~+55	-20~+55	-20~+55
Application	For Indoor or Outdoor Use	For Indoor or Outdoor Use	For Indoor or Outdoor Use
Finish	Black Plated	Black Plated	Black Plated

PACKAGE AND TRANSPORTATION
