A hybrid coupler is a passive device used in radio and telecommunications. It is a type of directional coupler where the input power is equally divided between two output ports.Directional couplers are most frequently constructed from two coupled transmission lines set close enough together such that energy passing through one is coupled to the other. This technique is favoured at the microwave frequencies where transmission line designs are commonly used to implement many circuit elements. However, lumped component devices are also possible at lower frequencies. Also at microwave frequencies, particularly the higher bands, waveguide designs can be used. Many of these waveguide couplers correspond to one of the conducting transmission line designs, but there are also types that are unique to waveguide.Directional couplers and power dividers have many applications, these include; providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennae, antenna beam forming, providing taps for cable distributed systems such as cable TV, and separating transmitted and received signals on telephone lines.

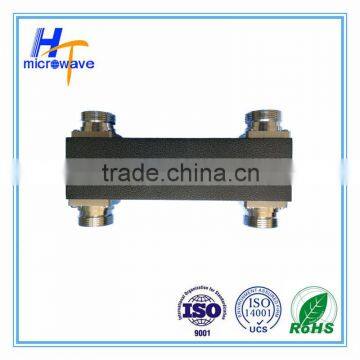

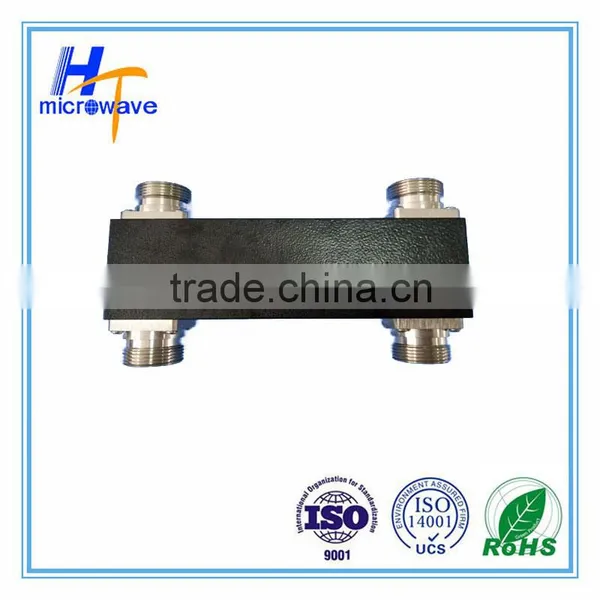

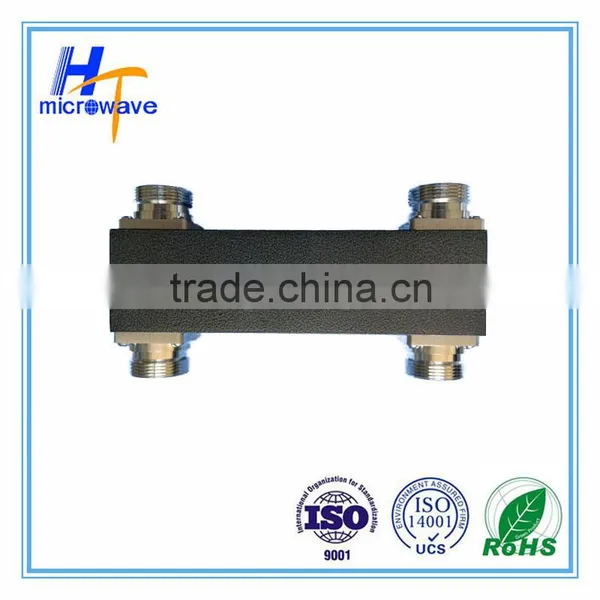

800-2700 mhz 50 ohms 200/300/500 W DIN-Female 3 db 180 hybrid coupler

HT 3DB HYBRID COUPLER SERIES

1. Multiple-Band Frequency
2. Low Specified PIM

3. High Isolation,Low VSWR and Loss

4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

HT N type Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

HT DIN type Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m² and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3  subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
