Home > Products > Mass Clean Water Medium Wastewater UV Sterilizer > sewage treatment plant
sewage treatment plant
- 500 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KWE | Model Number: | KWE-32015 |
Product Description

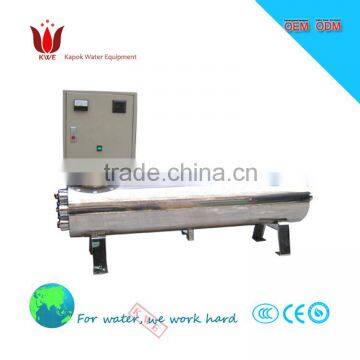

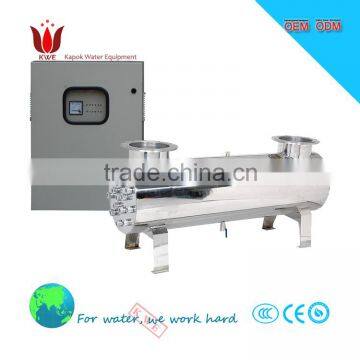

CLOSED VESSEL (PRESSURIZED) UV SYSTEMS
Be applied to mass flow rate of clean / pure water, and small capacity of sewage which is limited by the narrow space.
Depending on site and design conditions, wastewater treatment plant producing filtered effluent sometimes prefer a dissection solution using closed-vessel or pressurized UV reactors.
The KWE UV320 series offer an effective and energy-efficient closed-vessel UV solution. This compact reactor is available in multiple configurations to treat a wide range of flow rates. The streamlined closed-vessel systems disinfect filtered effluent without breaking head in the treatment process.
Sewage treatment plant, effluent treatment plant, hospital sewage treatment plant, 4800W UV for 375T/H water flow.
These benefits along with UV’s ability to provide environmentally-friendly, chemical-free treatment for chlorine resistant microorganisms (such as Cryptosporidium and Giardia) make the KWE UV closed-vessel solution an attractive option for wastewater disinfection.
Perfect Multi-barrier for Municipal Water Safety
Capacity:
Clean water: 20m³/H~600 m³/H (90GPM~2650GPM)
Waste water: 5 m³/H~300 m³/H (20GPM~1320GPM)
Working pressure: up to 8.62Bars, 125psi
Water temperature: 2~40℃ (36~104℉)
Iron content:
4-log, 99.99% reduction in bacteria, viruses and protozoan cysts
UV lamp life 10000hours
SS304 reactor chamber with electro-polishing (SS316 available)
Vertical/Horizontal installation
Warranty: KWE UV disinfection system provides a two years warranty to the stainless steel reactor chamber, and one year warranty to UV lamp, quartz sleeve, and ballasts.
Open channel UV disinfection system for sewage plant
Capacity: 100~30000m3/Hr. Factory price, 11 years OEM experience.
Open channel UV disinfection for aquaculture water treatment
Capacity: 100~30000m3/hr. Quick, safe & economic way for agriculture water disinfection.
Closed vessel UV water sterilizer with combined cabinet
Mid. Order: 15 Tons more quatities, more cheaper FOB Price: US $ 8.5-8.65/Carton
Closed vessel UV reactor with auto-cleaning system
For large scale of drinking water / wastewater treatment with limited & narrow space. 304/316 stainless steel reactor chamber.
Simple design closed vessel sterilizer for small flow drinking water
MOQ: 1set, the perfect multi-barrier for your family water safety. FOB Price: US $ 15.9-21/set.
Closed vessel type UV sterilizer for drinking water
Designed with mounting feet, easily fixed to proper position. Low O & M cost. Work efficiently and fast!
