Specifications
HB-1100 Models slitting machine paper rolls1.This machine is Vertical Slitting Machine
2.It can do BOPP, PET, PE, CPP, Pap

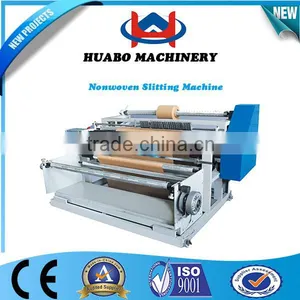

HB-1100 Model Big Paper Roll slitting machine paper rolls
Features:
Equipped with photoelectric tracking. Auto adjustment. Tension control and operation indicator. The cutter can be operated in a simple way with a reliable function. The machine can be complied in splitting cutting of plastic film, medical film paper and medical paper etc.
Technical Parameter
1. This machine is Vertical Slitting Machine
2. Machine cut: BOPP, PET, PE, CPP, PVC(400μm), Paper, Foil and kinds of roll slitting material.
3. Minimum width of material cut: 50mm (Unwinding)
4. Max put in roll:Φ1100mm
5. Max collect roll:Φ300mm×2 set(5kg Magnetic Clutch*2 pcs for Winding)
6. Slitting specification: 50-1100mm
7. Max speed of Machine: 200 m/min
8. Cutting speed: 10-200 m/min (cutting speed according to material smooth and operation etc)
9. Precision of Error-correction:+ 0.2mm
10 Total powers: 4.2 KW
11. Weight:2600kg
12. Outer Size:2300×1300×1500m(L×W×H)
Main Configuration
(1). Unwinding Error-Correction Frame
1. Unwinding materials: unwinding material fixed by air cylinder
2. Unwinding material: left and right could be adjusted.
3. Unwinding tension adopt 5kg magnetic powder brake (1 set)
4. Unwinding tension could be adjusted.
5. Balance of unwinding base materials could be adjusted with single direction
6. Error-correction: Synchronous motor matches ball guide screw
7. Eye-electric tracking: Made in Taiwan
(2). Winding Structure
1. Winding adopts dual positions synchronism
2. Winding Roller: Banding air-extension shafts Φ76mm × 2 sets
3. Winding Roller is controlled by 5kg hole clutch (2 units)
4. Winding tension could be adjusted.
(3). Slitting Fitting
1. Cutting way: With straight cutter (straight razor×10pc-round razor×5pc) =15pc
2. Width of cut: :50-1100mm could be adjusted
3. Straight cutter is fixed on the cutter supporter.
4. Angle of blade could be adjusted.
5. Scrap should expel from the machine by branch pipes when slitting specification less than 10mm
(4). Aluminum Roller
1. Guide roller: Made in Shanghai, aluminum alloy by move and static corona disposal.
2. Bearing: Made in China
(5). Running Structure
1. The speed of main engine will be controlled by slide motor.
2. The speed of main engine could be adjusted.
3. Winding starts after unwinding is drawn
(6). Supporting Facilities :( User Care)
Electric Source: Three-phase four-wire air switch: 380V 50HZ
