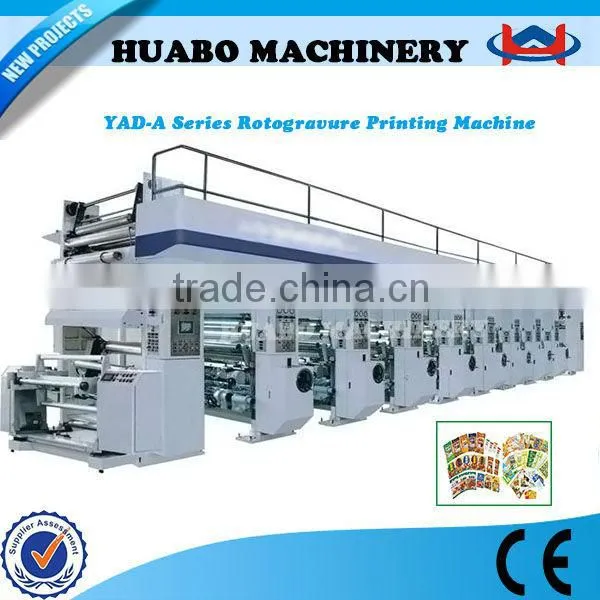

The Newest Manufacturer HB Rotogravure Printing Machine
- Ningbo
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | Huabo | Model Number | HB | |
| Usage | Cloths Printer, Paper Printer, Other, Cloths Printer, Paper Printer, Foil,PP,PE,PVC,BOPP film,Paper | Automatic Grade | Automatic | |
| Voltage | 220V/380V | Gross Power | 44KW | |
| Dimensions(L*W*H) | 9200*2200*2300mm | Weight | 6500-8000KG | |
| Certification | CE/ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Name: The newest Manufacturer HB gravure printing machine
Product introduction:
The machine is combination type .Printing color unit can be increased or decreased according to customer's requirement. With 360 degree of installment system, ease of operation, and stability. The parts of transmission is adopted with gear structure with full sealing lubrication. The tension system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with torque motor. With double oven passage design. Upper and lower oven using large centrifugal blower. fast drying, fast printing. Winding and rewinding are both double working mechanisms to make the material complete with non-stop
Feature:
1.The latest improved gear box,360 non-stopping registration device.
2. Movable type doctor blade, transverse reciprocating motion.
3. Closed type oven, automatic constant temperature system.
4. Side and up double drying oven system.
5. Unwinding and in feeding equipped with auto tension controller and magnetic powder brack.
6. Rewinding and out feeding adopt magnetic powder clutch to control the tension.
7. Turret type unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Inflatable air shaft for unwinding/rewinding material loading.
9. Printing linear speed and meter indication .
10. Pneumatic printing impress roller and traction impress roller.
11. Pneumatic nip roller for in feeding and out feeding.
12. Main motor: electromagnetic speed regulation motor.
Main Technical Parameter
material | OPP,BOPP,PE,PET,PVC |
groups | 2-12 groups(two colors four groups) |
Breadth of printing | 800-1600mm |
Length of printing(roll diameter) | 314-1004mm roll diameterΦ100-Φ320mm |
The maximum printing speed | 150m/min |
Printing speed | 20-130m/min |
Collecting and Unwinding Diameter | ≤Φ600≤Φ800≤Φ1000 |
Precision of overprint | ≤0.15mm |
Samples
Workshop
Delivery
The Certificates
Our Company Culture
The Payment Term
The newest Manufacturer HB rotogravure printing machine
