YSJ-B Series 6 Color Gravure Printing Machine

YSJ-B Series 6 Color Gravure Printing Machine photo-1
US$ 20,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huabo
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name Huabo
Model Number HB
Usage Paper Printer, Cloths Printer
Automatic Grade Automatic
Voltage 220V/380V
Gross Power 44KW
Dimensions(L*W*H) 9200*2200*2300mm
Weight 6500-8000KG
Certification CE/ISO
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

6 color gravure printing machine
1. Touch screen control
2. Good in quality
3. Reasonable in price
4. Good after sales

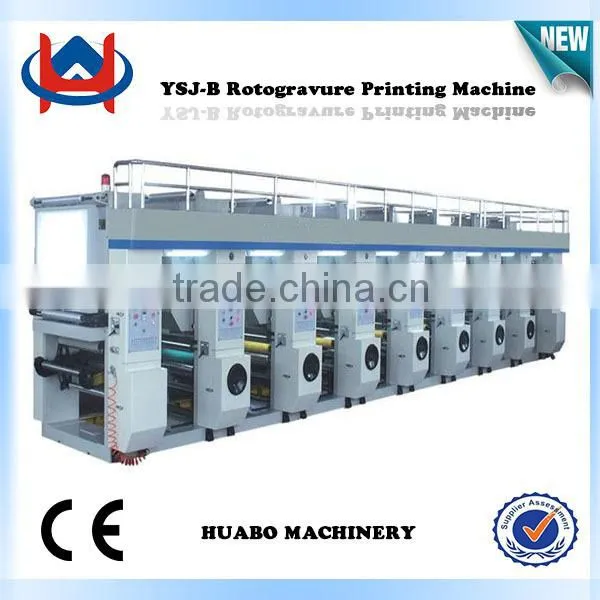

YSJ-B series 8 color rotogravure printing machine

Product introduction:



The machine is combination type .Printing color unit can be increased or decreased according to

customer's requirement. With 360 degree of installment system, ease of operation, and stability.

The parts of transmission is adopted with gear structure with full sealing lubrication. The tension

system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with

 torque motor. With double oven passage design. Upper and lower oven using large centrifugal

blower. fast drying, fast printing. Winding and rewinding are both double working mechanisms

to make the material complete with non-stop



Feature:



1.The latest improved gear box,360 non-stopping registration device.
2. Movable type doctor blade, transverse reciprocating motion.
3. Closed type oven, automatic constant temperature system.
4. Side and up double drying oven system.
5. Unwinding and in feeding equipped with auto tension controller and magnetic powder brack.
6. Rewinding and out feeding adopt magnetic powder clutch to control the tension.
7. Turret type unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Inflatable air shaft for unwinding/rewinding material loading.
9. Printing linear speed and meter indication .
10. Pneumatic printing impress roller and traction impress roller.
11. Pneumatic nip roller for in feeding and out feeding.
12. Main motor: electromagnetic speed regulation motor.





 Main Technical Parameter





material

OPP,BOPP,PE,PET,PVC

groups

2-12 groups(two colors four groups)

Breadth of printing

800-1600mm

Length of printing(roll diameter)

314-1004mm  roll diameterΦ100-Φ320mm

The maximum printing speed

150m/min

Printing speed

20-130m/min

Collecting and Unwinding Diameter

≤Φ600≤Φ800≤Φ1000

Precision of overprint

0.15mm







Samples:

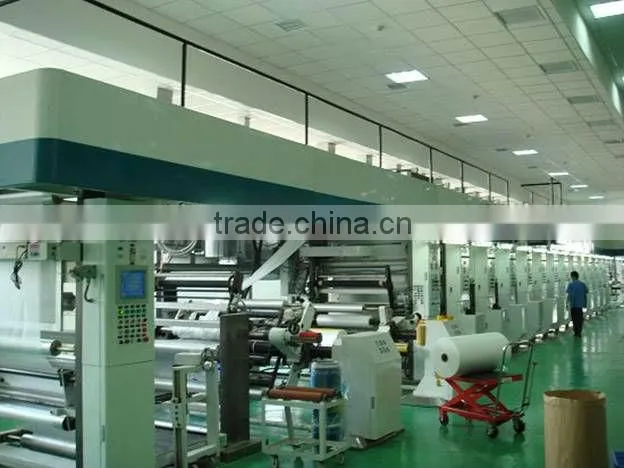

Workshop

YSJ-B series 6 color gravure printing machine



Delivery





The Certificates



Our Company Culture

YSJ-B series 6 color gravure printing machine



The Payment Term

YSJ-B series 6 color gravure printing machine

YSJ-B series 6 color gravure printing machine
