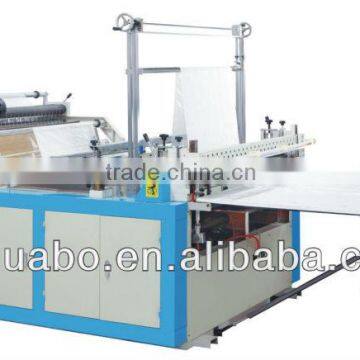

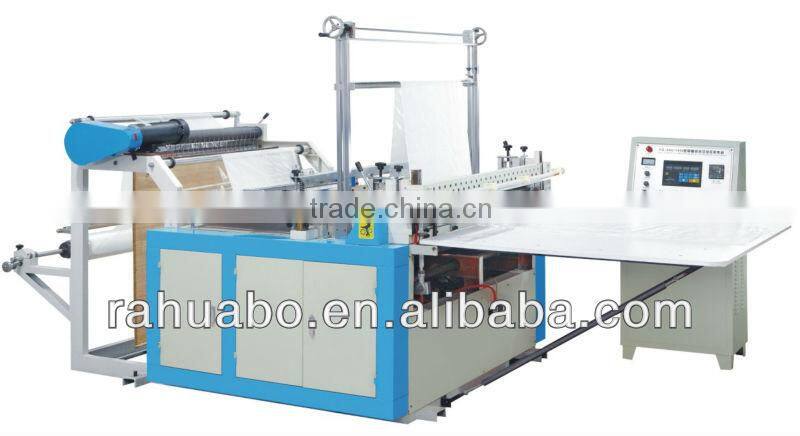

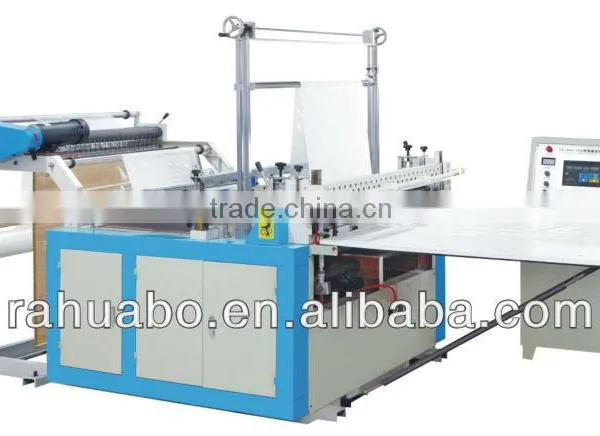

Auto bag making machine PLASTIC arc bag making machine

Specifications

These machines we supply are famous for high quality, high efficiency, and easy handling with competitive price.

Produce Sample:







Feature:

1. Automatic counting and alarming.

2. With accurate photocell eye tracking, stops automatically in case of wrong color marks.

3. The bag-making length is controlled by button.

4.Applicable for the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE) thin film to sealing and cutting natural and color bags etc.

5. Widely used for packing food, cloth, industrial products and electric appliances.



Main Technical Parameter

Model	HBP-1200
Max.Sealing and Cutting Width	1150mm
Sealing and Cutting length	1500mm
Sealing and Cutting Thickness	0.006-0.10mm
Error in Length	±1mm
Bag-making Speed	30-120pcs/min
Power of Main Motor	0.75kw
Heating Power	1.2kw
Total Power	3.2kw
Weight of Machine	700kg
Overall Dimensions	2650×1800×1550mm



Main configuration

1. Controlled by computer stepping motor (made in Wuxi), including bag width fixed length, automatic counting and alarming etc.

2. Putting raw material was adopted direct-current machine and photoelectric control (made in Shanghai).

3. Main motor adopts frequency control (made in Zhejiang).

4. Heat sealing used the structure of heating Knife (made in Jiangsu).

5.Electrical Components (Chint)
