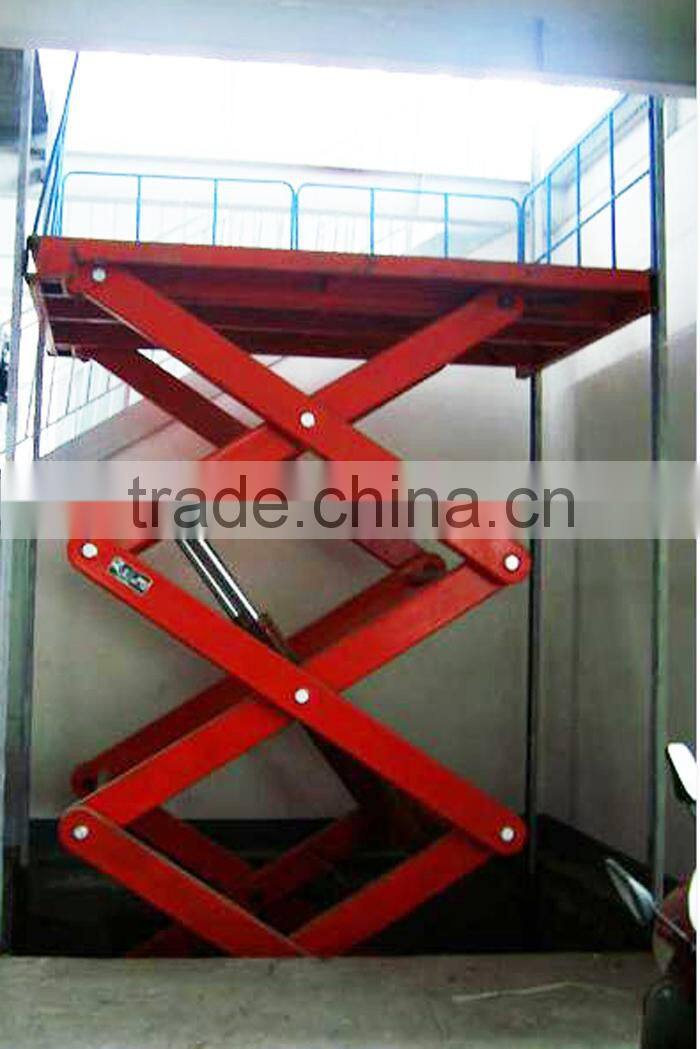

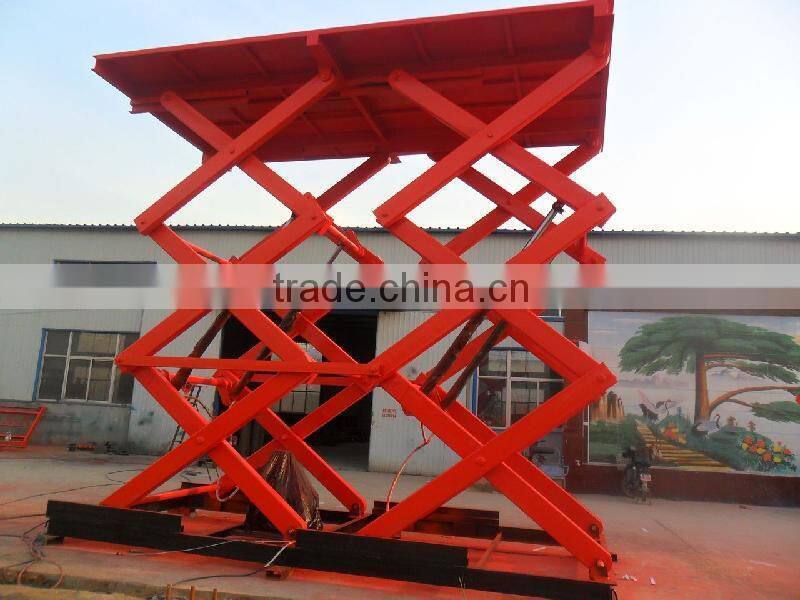

3m stationary mini hydraulic scissor lift
Brief Introduction of stationary mini hydraulic scissor lift
1.Most scissor lifts use pneumatic, hydraulic, or mechanical power in order to extend the platform upward.
2.There is a multitude of types and sizes of scissor lifts to appeal to variety of industries with varying requirements.
The lifting platform has a certain function of self-walking and steering (direction change). And neither manual hauling nor external power supply is needed, ascending and descending working performance with self-walking ability of this work platform are very flexible and convenient. It is an ideal equipment of safe operation and high efficiency for modern enterprises.
The product possesses the driving functions of moving and changing directions,and no manual hauling,no external power is needed,which makes the high operation more convenient and much pucker. It is an ideal equipment of safe operation and high efficiency for modern enterprised....
Safety features of stationary mini hydraulic scissor lift
1. In special circumstance, the scissor lift will use explosion-proof electric equipment
2.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when works on the platform.
3.The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position
4.The platform is equipped with antiskid plate to prevent slipping, it is enough safe when it works

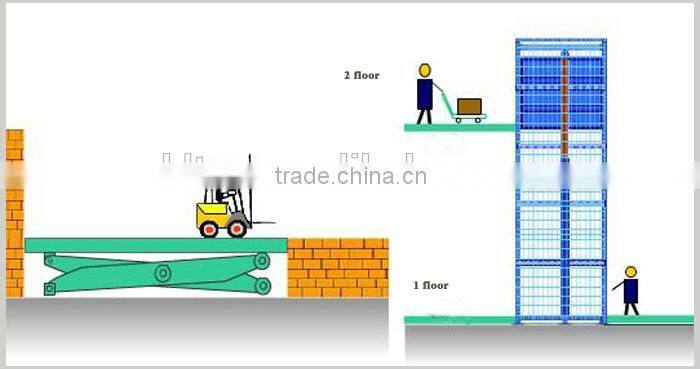

The hydraulic scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline.
Advantages of stationary mini hydraulic scissor lift
1. High precision hydraulic transmission,lifting smooth,easy operation,low fault rate.
2. High strength chain pulling,carrying no extension,long service life,safety factor is big,
3. Double chain to ascend,lifting safe and reliable
4. Adjustable screw guarantee the platform level,car smooth lifting
5. Large capacity pump station,lifting speed,running low voice
6. Beautiful and novel design,the structure is strong and durable.
Parameters of stationary mini hydraulic scissor lift
Model | Table size (m) | Lifting Stroke (mm) | capacity (kg) | Power supply | Lifting time (S) | Min.Height (mm) |
SJG0.5-5 | 2.00×1.00 | 5000 | 500 | 2.2Kw | 47 | 850 |
SJG1-2.5 | 2.00X1.50 | 2500 | 1000 | 2.2Kw | 28 | 480 |
SJG1-3.3 | 1.90×1.50 | 3300 | 1000 | 2.2Kw | 30 | 840 |
SJG1-3.6 | 2.00×1.50 | 3600 | 1000 | 2.2Kw | 32 | 840 |
SJG1-4.3 | 2.50×2.00 | 4300 | 1000 | 2.2Kw | 50 | 990 |
SJG1-4.5 | 1.60X1.50 | 4500 | 1000 | 2.2Kw | 70 | 1050 |
| SJG1-6.0 | 2.20X1.50 | 6000 | 1000 | 2.2Kw | 90 | 1230 |
| SJG1-5.5 | 2.40X1.80 | 5500 | 1500 | 3.0Kw | 80 | 985 |
| SJG2-3.5 | 2.20X1.50 | 3500 | 2000 | 3.0Kw | 75 | 990 |
| SJG2-4.5 | 2.00X1.50 | 4500 | 2000 | 3.0Kw | 85 | 990 |
| SJG2-4.8 | 3.60X2.00 | 4800 | 2000 | 4.0Kw | 40 | 700 |
| SJG2-6.0 | 2.40X2.40 | 6000 | 2000 | 4.0Kw | 95 | 1065 |
| SJG2-6.8 | 2.50X2.20 | 6800 | 2000 | 4.0Kw | 105 | 1400 |
| SJG2-8.0 | 2.50X2.20 | 8000 | 2000 | 4.0Kw | 120 | 1225 |
| SJG3-4.5 | 2.20X1.80 | 4500 | 3000 | 4.0Kw | 88 | 1060 |
| SJG3-7.2 | 5.50X3.00 | 7200 | 3000 | 5.5Kw | 90 | 860 |

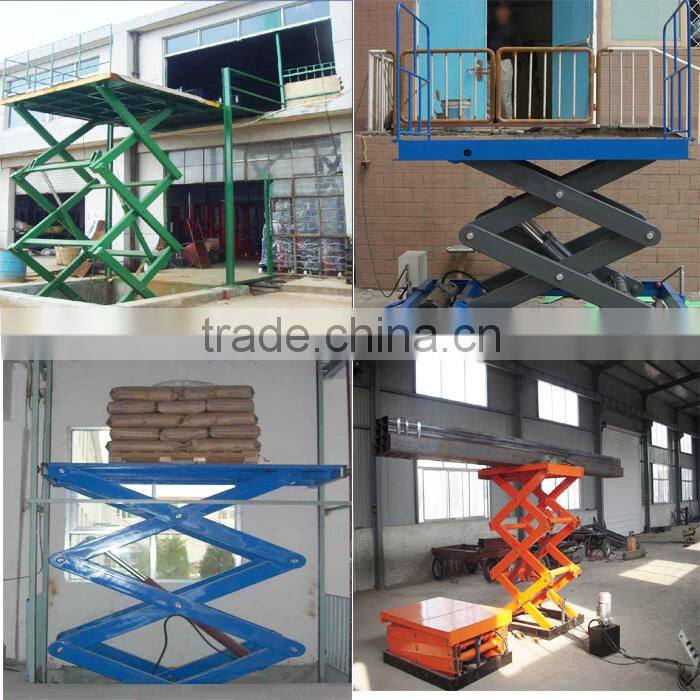

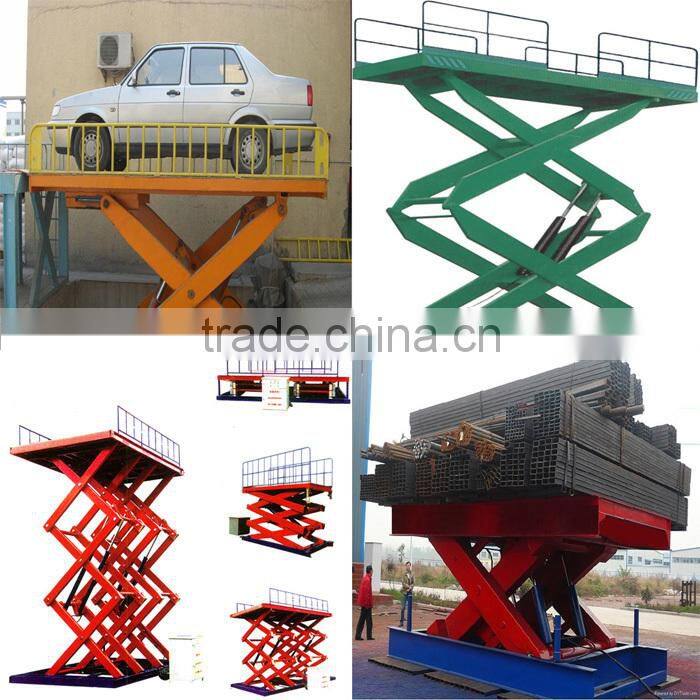

Other types lifting platform
There is always a kind of lift platform can meet your requirements.
You may have interests in those products
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contact me or scan our website www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
customer-visits
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pakistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
You can use our cranes at ease, the best after-sales service will be offered from KAILITE
1, One year warranty for whole machines.
2.Payment terms is flexible,
3.Design the platform according to your technical request,
4.Delivery on time
5.Diversity products
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
3.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
4. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
5. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size.
6. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here
7. How about the warranty?
Our warranty is 1 year, within 1 year, any questions, we send spare parts as free.
Ordering notice of hydraulic lifting platform
1.Which type:Scissor type(fixed type or moved type) lifting platform,
2.Max lifting load_kg,
3.Working height:_m,
4.Platform size:_mm*_mm,
5.Power
This is only an overview of our products ,for more details,please never hesitate to contact vivian !
We Cherish Every Order From Every Customer !
