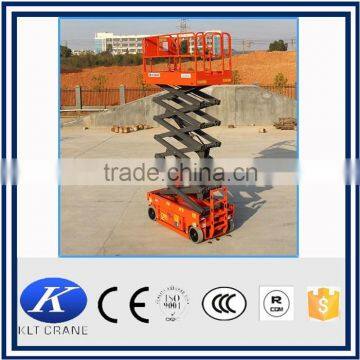

Electric Mechanical Hydraulic Platform Lift
1. Brief Introduction:
Hydraulic Platform Lift
Hydraulic Platform Lift is made of high-duty rolled steel. One prople can operate and It can be move conveniently, and has bigger stretchable table, it can take several people to work on it together. Hydraulic lifting platform is an ideal equipment for guaranteeing working safe, improving working efficiency and making aerial
working more convenient and quick.
2. Advantages:
Hydraulic Platform Lift
Excellent mobility: Compact body can easily pass through single channel and double channel , use non--marking solid tire. GTJZ series electrical and hydraulic scissor work platform
Special locations: Feature of low noise is perfect suitable for the noisesensitive environment, such as office
buildings, shopping malls, hotels, schools and so on.
Easy maintaining: Random fault diagnosis system can immediately detect the faults , can be repay type
battery trays make it easy to repair the power generator.
3. Parameters:
Hydraulic Platform Lift
| Type | GTJZ-05 | GTJZ-06 | GTJZ-08 | GTJZ-10 | GTJZ-12 | GTJZ-12K | GTJZ-14K |
|
ing height |
6.5m | 7.65m | 9.69m | 11.5m | 13.23m | 13.72m | 15.965m |
|
Max.platform height |
4.8m | 6.15m | 7.99m | 9.8m | 11.53m | 12.02m | 14.265m |
| Lift capacity | 280kg | 230kg | 320kg | 320kg | 230kg | 320kg | 320kg |
| Length | 1.89m | 1.89m | 2.845m | 2.845m | 2.845m | 2.93m | 2.93m |
| Width | 0.76m | 0.76m | 1.15m | 1.15m | 1.15m | 1.75m | 1.75m |
| Height(swowed) | 2.2m | 2.4m | 2.54m | 2.41m | 2.535m | 2.735m | 2.895m |
|
Height(Guardrail stowed) |
1.55m | 1.55m | 1.55m | 1.96m | 2.085m | ||
|
Min.platform height |
1.17m | 1.25m | 1.39m | 1.31m | 1.435m | 1.58m | 1.74m |
|
Platform dimension |
2.26* 0.74m |
2.26* 0.75m |
2.26* 1.13m |
2.26* 1.13m |
2.26* 1.13m |
2.93* 1.13m |
2.93* 1.65m |
|
Length extension deck |
0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 1.1m | 1.1m |
| Ground clearance-center | 60/20mm | 60/21mm | 100/20mm | 100/20mm | 100/20mm | 200mm | 200mm |
|
Min.turning radius |
2.3m | 2.3m | 2.3m | 2.3m | 2.3m | 4.5m | 4.5m |
|
Travel speed (stowed) |
3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h |
|
Travel speed (raised) |
0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 20% | 20% |
| Tire |
0.305* 0.1m |
0.305* 0.1m |
0.38* 0.125m |
0.305* 0.125m |
0.305* 0.125m |
0.6* 0.19m |
0.6* 0.19m |
| Weight | 1350kg | 1580kg | 2300kg | 2450kg | 2580kg | 3150kg | 3350kg |
| Lifting motor | 24v/3kw | 24v/3kw | 24v/3kw | 24v/3kw | 24v/3kw | 48v/5kw | 48v/5kw |
| Maintenance-free Battery |
4*6/230 V/Ah |
4*6/230 V/Ah |
4*6/230 V/Ah |
4*6/230 V/Ah |
4*6/230 V/Ah |
8*6/215 V/Ah |
8*6/215 V/Ah |
| Charger | 24/20-30V/A | 24/20-30V/A | 24/20-30V/A | 24/20-30V/A | 24/20-30V/A | 48/50-50V/A | 48/50-50V/A |
Note: The technical just for reference, we can design according to customer's requirements.
4. Application:
Platform Platform Lift is widely used to workshop building site, hotel, airport, station, dock, palaestra
and so on. Mainly used to installing, repairing and cleaning high aerial equipment, power equipments, overhead pipeline and so on.

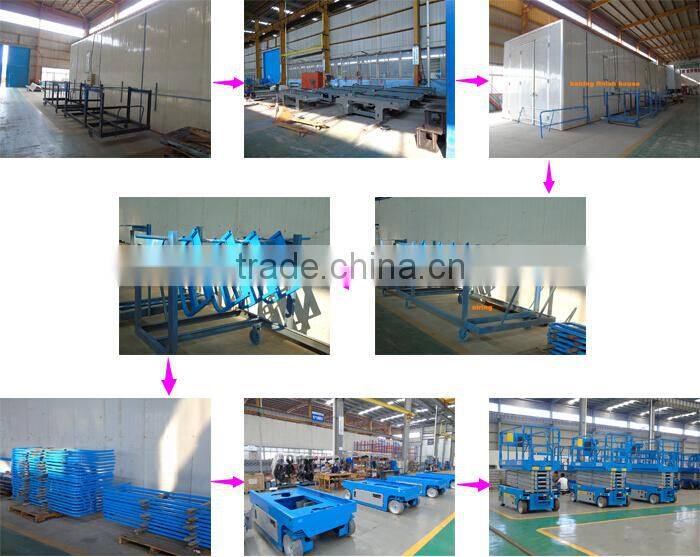

5. Product Process:

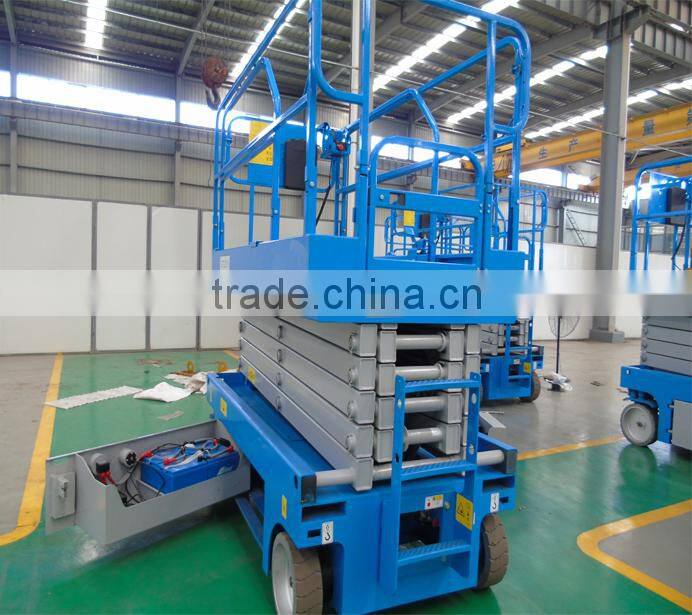

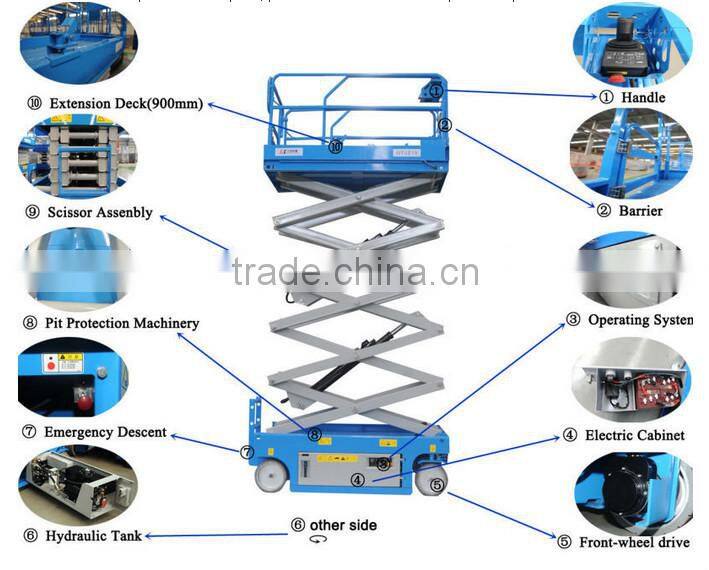

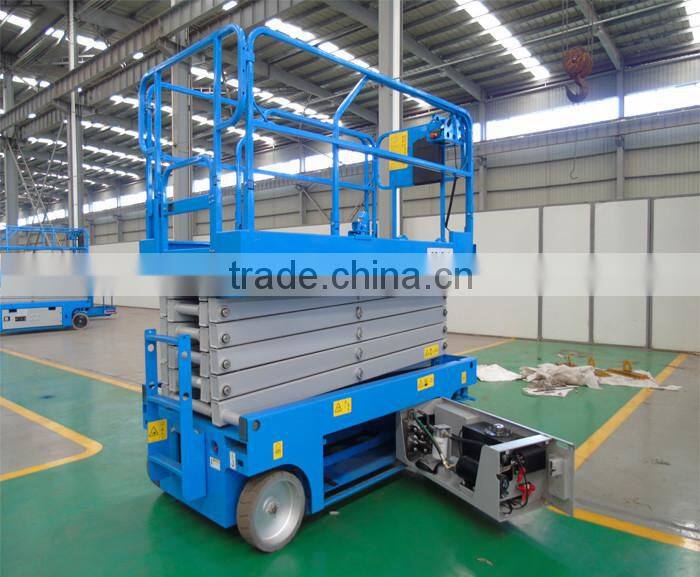

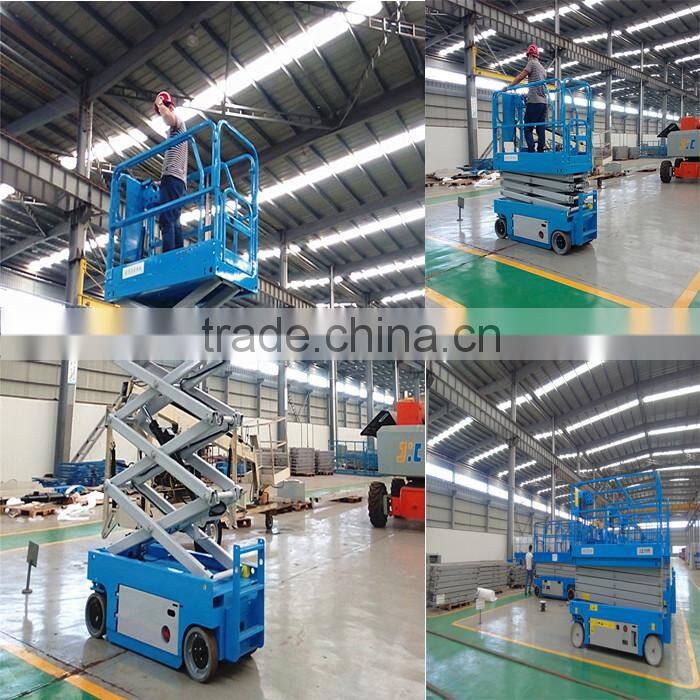

6. Detail:
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane , electric flat car,
overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.

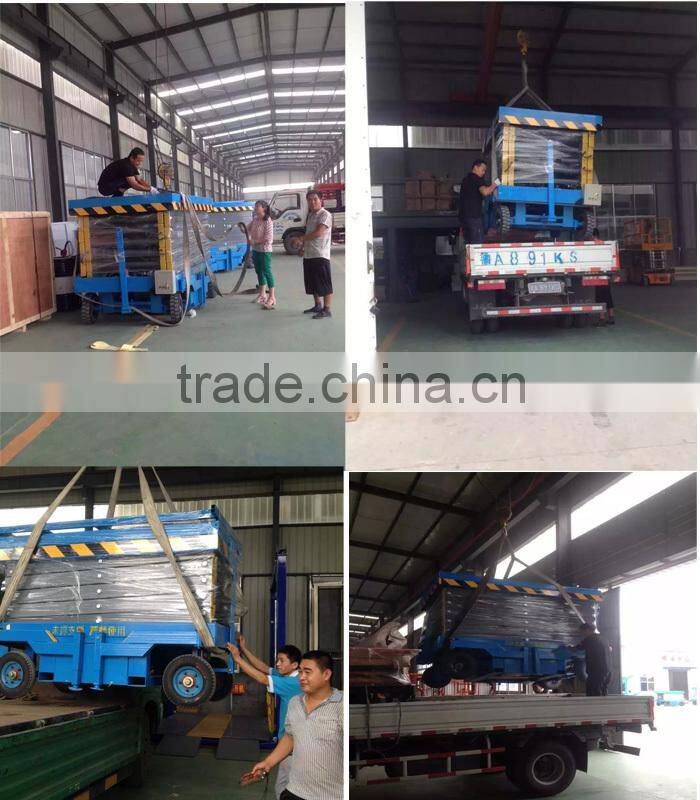

Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Customer Visit
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
