Home > Products > lifting platform > mini hydraulic electric scissor lift table
mini hydraulic electric scissor lift table
- 300 Set / Sets per Month
- Tianjin Qingdao Shanghai
- T/T Credit Card PayPal
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Henan, China | Brand Name: | KLT CRANE | Model Number: | SJY |
Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Hydraulic | Power: | 3KW |
Rated Loading Capacity: | 300-100KG | Min. Lifting Height: | 2640mm | Max. Lifting Height: | 18m |
Table Size: | 2000*1200mm | Overall Dimensions: | 2600*1550*2640mm | Weight: | 1800kg |
Certification: | CE ISO | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description

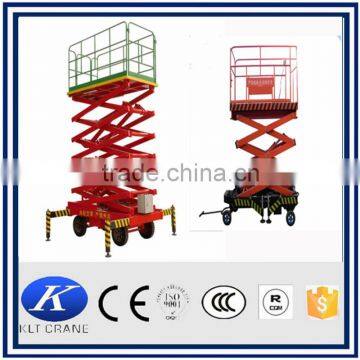

Mini Hydraulic Electric Scissor Lift Table
1. Brief Introduction:
Scissor Lift Table
Scissor lift table is a widely used aerial work special equipment. Lifting mechanism were made with
high strength manganese steel major form. To prevent lifting platform overload safety device. Having a safety
protection valve to prevent hydraulic pipeline rupture. A power failure cases of emergency drop device. This
product is applicable to various industries high-altitude equipment installation, maintenance and other mobility
aerial work.
2. Advantages:
Scissor Lift Table
Mobile convenient, high stability, wide operating platform and high bearing capacity make the Aerial work
scope is bigger, and is suitable for many people working at the same time. It makes the work more efficient, more secure.
3. Parameters:
Scissor Lift Table
Type | Lifting height(m) | Load(kg) | Table size(mm) | Overall dimension(mm) | Power (kw) | Total weight(kg) |
SJY0.3-4 | 4 | 300 | 1700*1080 | 1820*1400*1180 | 2.2 | 660 |
SJY0.3-6 | 6 | 300 | 1700*1080 | 1820*1400*1280 | 2.2 | 750 |
SJY0.3-8 | 8 | 300 | 1800*1060 | 1900*1380*1460 | 2.2 | 850 |
SJY1.0-8 | 8 | 1000 | 1940*1300 | 1920*1630*1980 | 2.2 | 1380 |
SJY0.3-10 | 10 | 300 | 1920*1250 | 2040*1580*1660 | 2.2 | 1300 |
SJY1.0-10 | 10 | 1000 | 1920*1300 | 2060*1630*1980 | 2.2 | 1500 |
SJY0.3-12 | 12 | 300 | 1920*1250 | 2150*1630*1980 | 2.2 | 1420 |
SJY1.0-12 | 12 | 1000 | 2400*1340 | 2530*1630*2000 | 3 | 2220 |
SJY0.3-14 | 14 | 300 | 2400*1300 | 2600*1660*2080 | 2.2 | 1800 |
SJY1.0-14 | 14 | 1000 | 2600*1340 | 2800*1600*2080 | 3 | 2680 |
SJY0.3-16 | 16 | 300 | 2650*1340 | 2800*1600*2130 | 3 | 2800 |
Note: The technical just for reference, we can design according to customer's requirements.
4. Application:
Scissor Lift Table
Mini scissor lift table mainly used for construction, bridge building, airport, dock and other engineering
machinery equipment.
5. Detail:
6. More Lift Tables:
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane , electric flat car,
overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Our delivery is Efficient, Reliable and Prompt!
Packing Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
Customer Visit
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
