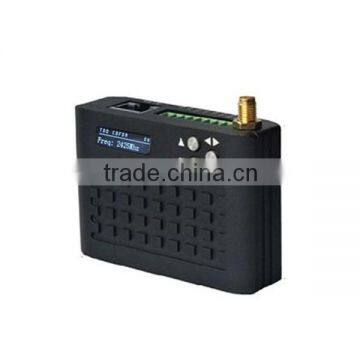

Ultra-small Military-grade Duplex Mode Wireless Lightbridge SG-2400NB
SG-2400 NB TDD_COFDM is our latest designed ultra-small digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES_256) network data transfer channel. Effectively achieve real-time, anti-multipath, high-speed mobile data, voice and image duplex transmission.
It has advatange of small volume and light weight,especiallym widely used in UAV drone /Quadcopter/Octocopter/ hexacopter applications such high-speed moving complex environment.
Features:
*Can up tp 6.5Mbps data streaming,adaptive dynamic stream allocation technology.
*Support PTP&PMD network technology
*Support NLOS high speed moving transmission.
*Offer standard RS-232/RS-485 or RJ45 data modes.
*High standards of military-grade applications
*Small volume,light weight,easy carry, Portable and convenient , aluminum outer-casing with good heat dissipation;
*Good quality OLED digital paneldisplay, concise and simple operation panel.
Model |
SG-2400NB |
Power supply |
DC7V~17V |
6W consumption | |
Ethernet |
10/100BaseT,Auto-MDI/X,IEEE802.3 |
TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS | |
Output frequency |
2405~2470MHz,in step 1MHz adjustable(Other frequencies can be customized) |
Output rf power |
30dBm |
Bandwidth |
4MHz/8MHz |
Encryption mode |
128bit AES(or 256bit AES) |
Error correction mechanism |
32bit of CRC,ARQ |
Modulation |
TDD_COFDM |
Parameter control method |
Through OLED control panel to modify parameters |
Working temperature |
-40°C~85°C |
Dimension |
75mm*51mm*22mm |

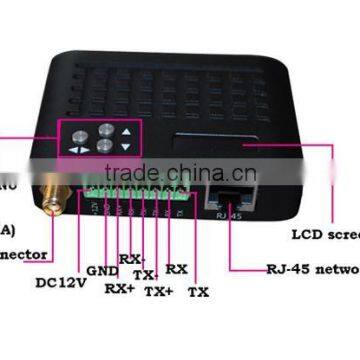

Interface |
RJ-45 Ethernet ,RS232/RS485/RS422 |
| Resolution | Support 720P and 1080P@50/60hz, 30 frames |
Weight |
135g |
- One year free warranty;
- three months for free spare parts (Replacement parts will be charged after a year);
- 24-h technical guidance;
- One-stop ODM/OEM solution;
- We provide professional system design and construction;
- We have over 15 years experience in study, design and manufacturing in wireless microwave transmission area;
- We are the professional plant source,so we can provide you high quality in best price.
