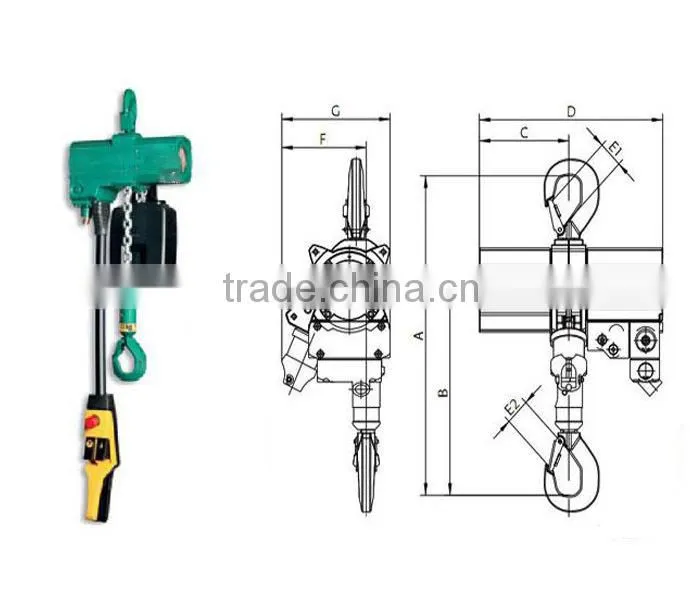

100kg - 25T Pneumatic Air hoist:
A comprehensive range of quality air hoists suitable for both industrial and marine environments.
They are particularly suited to environments where risk of explosion due to inflammable gases or
where the duty is onerous.
In production and storage operations, inflammable gases, vaporous and mist combined with air, may form an explosive atmosphere.
Our spark resistant air hoists are used extensively in the offshore, onshore, petrochemical, mining,
chemical and pharmaceutical industries.
Up to 50 tonne capacity:
Air trolleys up to 50 tonne capacity.
Special Low headroom air hoists and air trolleys up to 25 tonne capacity.
Spark resistant air hoists and air trolleys.
2.Features about Pneumatic Air hoist :
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
3.Safety Features about Pneumatic Air hoist :
1)Overloading protection
2)Top quality long time bearing polyurethane materials buffer
3)Voltage lower protection function, reduce energy consumption
4)Emergency stop system, current over-load protection system, excellent exchangeability for parts and components

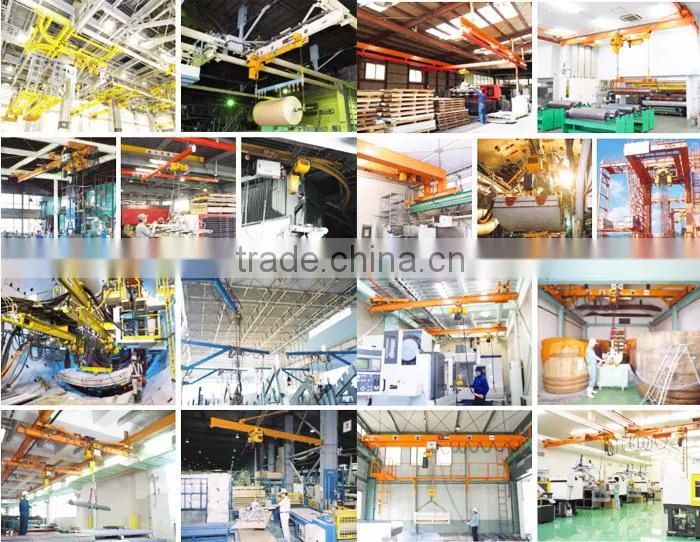

It can travel rotation through the trolley hanging on the I-steel, and install on the single beam crane, gantry crane, jib crane and overhang crane to rise and fall the cargos.
So it can be used in factories, mines, wharf, warehouse, freight yards, and shops and so on which need lifting equipment for lifting heavy objects. Such as mining companies and railways, docks, warehouses.And it can match the KBK rail to work, very efficient and aonvenient. It is prohibited to manned.
5.More details about Pneumatic Air hoist :
| Type |
QDH 5.0D |
QDH 6.0S |
QDH 10.4-4D |
QDH 10.0S |
QDH 12.0S |
QDH 10.0D |
QDH 12.5D |
QDH 16.0-3D |
QDH 20.0S |
QDH 25.0-4D |
QDH 25.0S |
QDH 32.0-3D |
QDH 50.0-4D |
| Load capacity(t) | 5 | 6 | 10 | 10 | 12.5 | 10 | 12.5 | 16 | 20 | 25 | 25 | 32 | 50 |
| Lifting height(m) | 0-20 | ||||||||||||
| Max.lift speed (m/min) | 1.6 | 1.4 | 0.35 | 0.8 | 0.7 | 1.2 | 1 | 0.5 | 0.6 | 0.35 | 0.5 | 0.4 | 0.25 |
| Min.down speed (m/min) | 2.5 | 2.7 | 0.8 | 1.25 | 1.35 | 2.1 | 2 | 1 | 1.2 | 0.7 | 1 | 0.9 | 0.5 |
| Wind presssue (MPa) | 0.6 | ||||||||||||
| Max. gas consumption(m3/min) | 3.4 | 3.4 | 2.9 | 3.4 | 3.4 | 4.7 | 4.7 | 3.4 | 4.7 | 3.4 | 4.7 | 3.4 | 4.7 |
| Approx. weight(kg) | 90 | 110 | 140 | 150 | 150 | 160 | 160 | 180 | 190 | 240 | 240 | 280 | 55 |

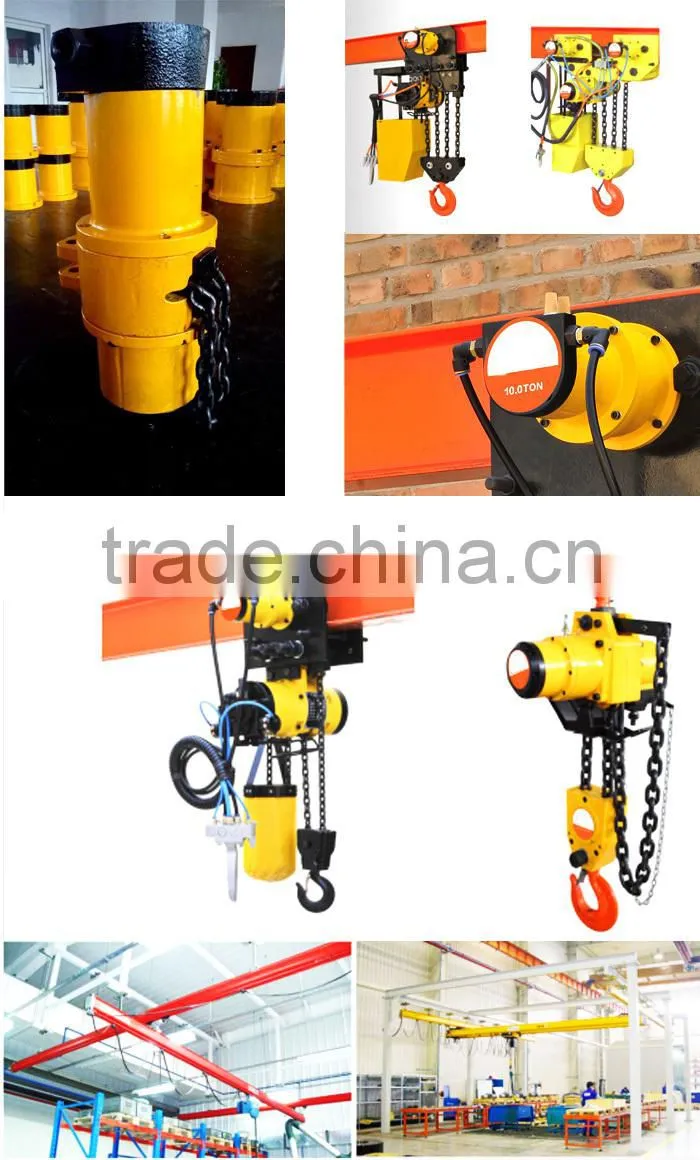

6.More hoists:
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 5-20 working days after the deposit received.
In order to offer you a suitable design and best price, Please tell us:
1.QTY?(set)
2.Trade term?(FOB/CIF to your nearest seaport)
3.Load capacity?(ton)
4.Lifting speed?(m/min)(one/two speed)
5.Lifting height?(m)
6.Do you need wire rope /electric chain hoist?
7.Do you need fixed or mobile hoist?(with trolley or without trolley,used single/double beam)
8.Working Voltage?(V,HZ)
9.Working duty?(where does it specific used?)
Or other special requirements you tell us would be more appreciated.
