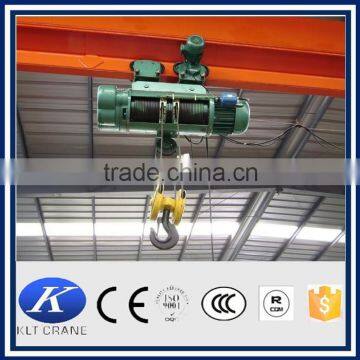

wire rope 500kg electric hoist
CD1, MD1 electric hoist is a kind of light type lifting equipment. It is a nessesary equipment to improve working efficiency and labor conditions. It is equiped with compact structure, convenient adjustment, small volumn, light weight, heavy gravity, easy operation etc.

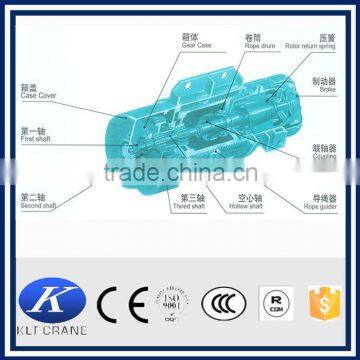

The Introduction of CD1, MD1 electric hoist
1. special drive composition method,
2. reducer use planetary speed-down drive,
3. unique column rotor-taper breaking wheel motor with low yawp,
4. advanced guide rope technology,
5. high precision and super mechanical spin limiter,
6. high quality control electric component with low malfunction.
The features of electric hoist (CD1, MD1 Model)
1.Electrical equipment:Schneider Control box material:Q235B
2.Motor:Xinxiang special electric
3.Gear:20Chromium manganese titanium
4.Hook:40 chrimium forge
5.Transmission shaft:45# quenched and tempered steel
6.Cover and coiling block:thicken steel plate
Safety of wire rope electric hoist
1. Brake and clutch ensure the safety under any circumstance,no slip under load
2. IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low voltage contactor ensures the safe and reliable operation
1.The axial dimension of hoist is compact ,it is easy to close the wall and lifting more height in a certain height.
The size of rail bottom base to hook is smallest compare with CD1 hoist , it makes the possible to lower the height of construction.
2. light self-weight ,light wheel pressure. It reduce the pressure of girder ,raise the Safety coefficient of girder.
This kind of hoist could be installed on single girder crane with hoist, overhead, gantry and jib crane. Modified could be used as a winch. So it is Widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
| Model | CD1 | |||||||||
| Capacity | Tons | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | ||
| Hoisting height | M | 6,9,12 | 6,9,12,18,24,30 | 9,12,18,24,30 | ||||||
| Hoisting speed | M/MIN | 8 | 8 | 7 | 3.5 | |||||
| Travel speed | M/MIN | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 18 | ||
| Wirerope | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | ||
| Spec. | 6x37+FC | 6x37+FC | 6x37+FC | 6x37+FC | ||||||
| Hoisting motor | Type | Type | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | |
| Power | Power(kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 | ||
| Rotation speed | Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | ||
| Current | (A) | 2.2 | 4.3 | 7.6 | 11 | 18 | 30 | 30 | ||
| Travel motor | Type | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power | Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 | ||
| Rotation speed | Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||
| Current | Current(A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 | ||
| Power | 3PAC 220v/230v/380v/400v/415v/440v380V,50HZ/60HZ, | |||||||||
These parameters are just for your referance, Because we are not only the foreign trade company, but also the manufacture, so our engineer can customize the product as per your requirement. We can give you the ower price and high quality hosit.
You may have interests in these hosits.
There is always a hoist can meet your requirements.
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contact me or scan our website www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer Visits
After sale service
You can use our products at ease, the best after-sales service will be offered from KAILITE
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Freely provide project designing, process designing, choosing suitable equipment for you
4, Exclusive engineer support at any time.
5, Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
Inquiry need
Pls tell us the following, then we will send our exact quotation and design drawing to you ASAP
A.Lifting capacity?
B.Lifting height?
C.Power source:---V--Hz--Phase?
This is only an overview of our products ,for more details,please never hesitate to me.
