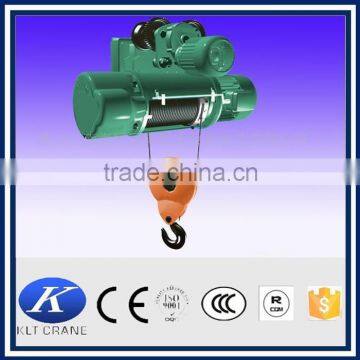

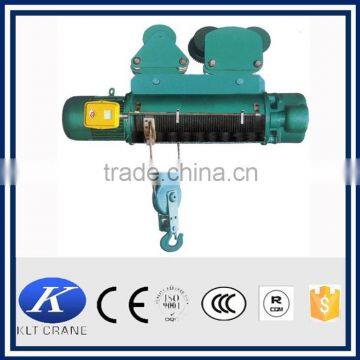

cd electric wire rope lifting hoist crane 2 ton
1.Brief introduction of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
CD1, MD1 model electric hoist is a kind of light type electric hoist. electric hoist crane 2 ton is a nessesary equipment to improve working efficiency and labor conditions. electric hoist crane 2 ton is equiped with compact structure, convenient adjustment, small volumn, light weight, heavy gravity, easy operation etc.
1.Electrical equipment:Schneider
2.Motor:Xinxiang special electric
3.Gear:20Chromium manganese titanium
4.Hook:40 chrimium forge
5.Transmission shaft:45# quenched and tempered steel
6.Cover and coiling block:thicken steel plate
7.Control box material:Q235B
2.Features of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
1. special drive composition method,
2. reducer use planetary speed-down drive,
3. unique column rotor-taper breaking wheel motor with low yawp,
4. advanced guide rope technology,
5. high precision and super mechanical spin limiter,
6. high quality control electric component with low malfunction.
3.Safety of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
1. Brake and clutch ensure the safety under any circumstance,no slip under load
2. IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low voltage contactor ensures the safe and reliable operation
5.The axial dimension of best price electric hoist is compact ,it is easy to close the wall and lifting more height in a certain height.
The size of rail bottom base to hook is smallest compare with CD1 hoist , it makes the possible to lower the height of construction.
6. light self-weight ,light wheel pressure. It reduce the pressure of girder ,raise the Safety coefficient of girder.
4.Main parts of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
5.Technical parameter of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
| Model | CD1 | |||||||||
| Capacity | Tons | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | ||
| Hoisting height | M | 6,9,12 | 6,9,12,18,24,30 | 9,12,18,24,30 | ||||||
| Hoisting speed | M/MIN | 8 | 8 | 7 | 3.5 | |||||
| Travel speed | M/MIN | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 18 | ||
| Wirerope | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | ||
| Spec. | 6x37+FC | 6x37+FC | 6x37+FC | 6x37+FC | ||||||
|
Hoisting motor |
Type | Type | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | |
| Power | Power(kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 | ||
| Rotation speed |
Rotation speed(r/min) |
1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | ||
| Current | (A) | 2.2 | 4.3 | 7.6 | 11 | 18 | 30 | 30 | ||
| Travel motor | Type | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power | Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 | ||
| Rotation speed |
Rotation speed(r/min) |
1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||
| Current | Current(A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 | ||
| Power | 3PAC 220v/230v/380v/400v/415v/440v380V,50HZ/60HZ, | |||||||||
6.Applications of electric hoist crane 2 ton:
cd electric wire rope lifting hoist crane 2 ton
Customer-visits:
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pukistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
The best after-sales service will be offered from Kailite.
1, One year warranty .
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height, power
source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we
can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
NOTICE
As different electric hoist crane 2 ton has different price, so in order to make the inquiry more convient and efficient, pls tell me the the following specifications:
- 1. Lifting capacity?
- 2. Lifting height?
- 3. Industry power source in your country?
- 4. Or other detailed requirements?
I am Jackie,waiting for your contact !
