1.Gear: Adopt Japanese technology of the symmetric arrangement of high speed synchronous gear; The international
standard gear steel is of redoubled wear resistance, small pulling force than the common ones, rotate more stably.
2.Chain: High strengthened chain, subtle joint in welding. It is treated with the intermediate frequency furnace
induction quenching according to international standard chain specification; Be capable of working at the sudden
over load conditions; The hand chain feels better than before;This kind of chain hoist can be pulled in various
direction at an angle of 45°,which is better than the common ones whose hand chain can only be pulled vertically
down.

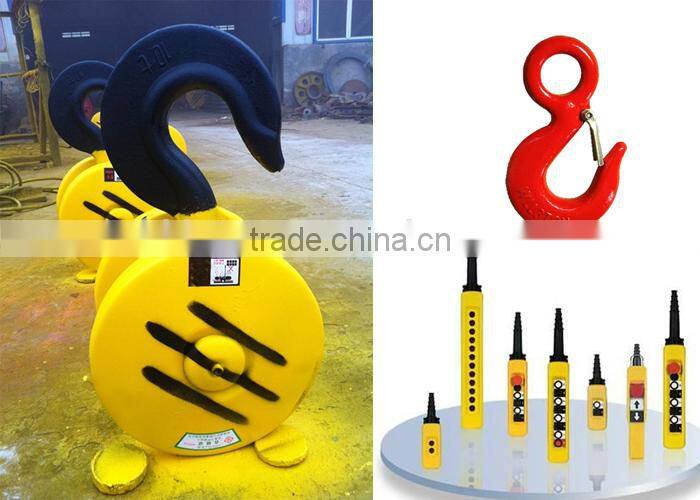

3.Hook: The hooks are most intensity safe hook which are made of high quality alloy steel, with special treatment.
This can guarantee that the hook will not break, and will deform gradually under a sudden over loaded. The hooks
are newly designed which making the cargo not fall.
4.Limit switch: Fitted at both top and bottom ends, the limit switch can switch off automatically to prevent load chain
from running out.
5.Component: The key component are made of high quality alloy steel .The dimensions are strict and every
component can play its function well.
6.Hoist body: Slim and beautiful Shape, which makes it comply with the human system
engineering. Light and fit to be used in different areas.
7.Painting: Advanced painting both inside and outside, durable color.
8.Cover sheet: The enclosure of the hoist is made of precision steel, which makes it looks deft and firm.
2.Product Features about mini chain hoist :
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
3.Safety Features about mini chain hoist :
1)Overloading protection
2)Top quality long time bearing polyurethane materials buffer
3)Voltage lower protection function, reduce energy consumption
4)Emergency stop system, current over-load protection system, excellent exchangeability for parts and components
| mini chain hoist | |||||||
| Model | HSZ-VT-0.5 | HSZ-VT-1 | HSZ-VT-1.5 | HSZ-VT-2 | HSZ-VT-3 | HSZ-VT-5 | HSZ-VT-10 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Standard Lift (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
| Test load (KN) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 |
| Mini distance between two hook (mm) | 285 | 270 | 368 | 444 | 486 | 616 | 700 |
| Chain tension(with full load)(N) | 250 | 309 | 343 | 314 | 343 | 383 | 392 |
| Lifting chain No. | 1 | 1 | 1 | 2 | 2 | 2 | 4 |
| Round steel diameter of chain(mm) | 1.6 | 6 | 8 | 6 | 8 | 10 | 10 |
| Net weight(kg) | 8.4 | 10 | 16 | 14 | 24 | 36 | 68 |
| Packing gross weight(kg) | 9.4 | 13 | 20 | 17 | 28 | 45 | 83 |
| packing measurements(L*W*H)cm | 30x17x32 | 30x24x18 | 34x29x20 | 33x25x19 | 38x30x20 | 45x35x24 | 62x50x28 |

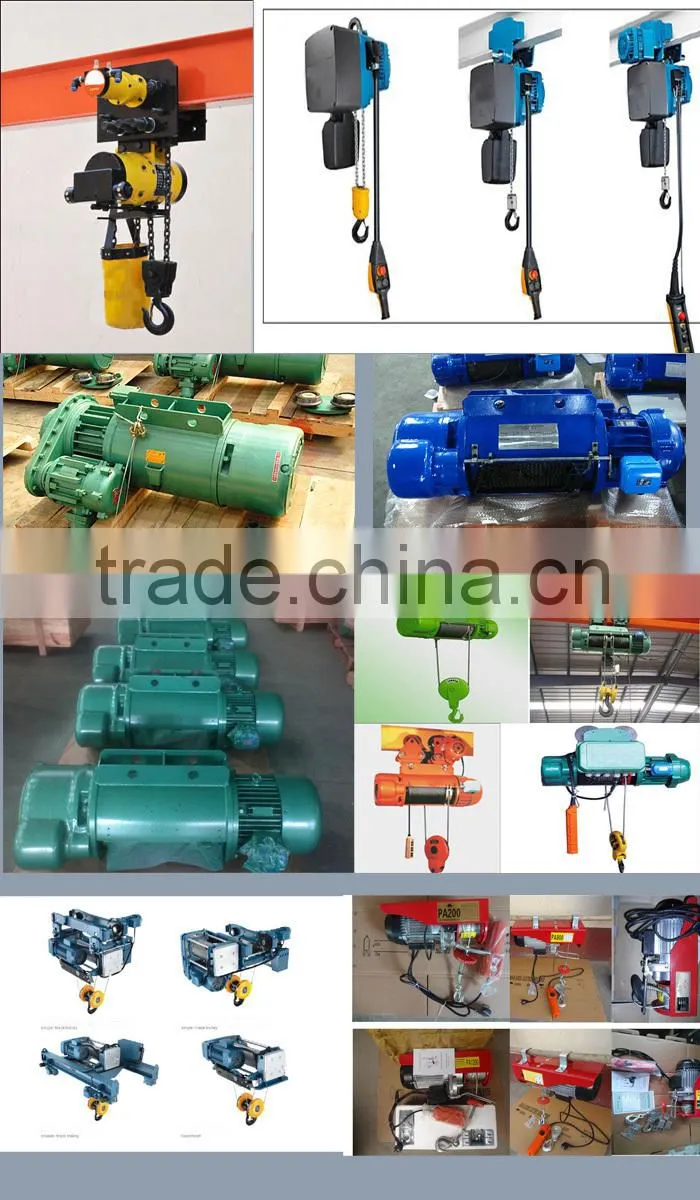

6.More hoists:
Product OEM:

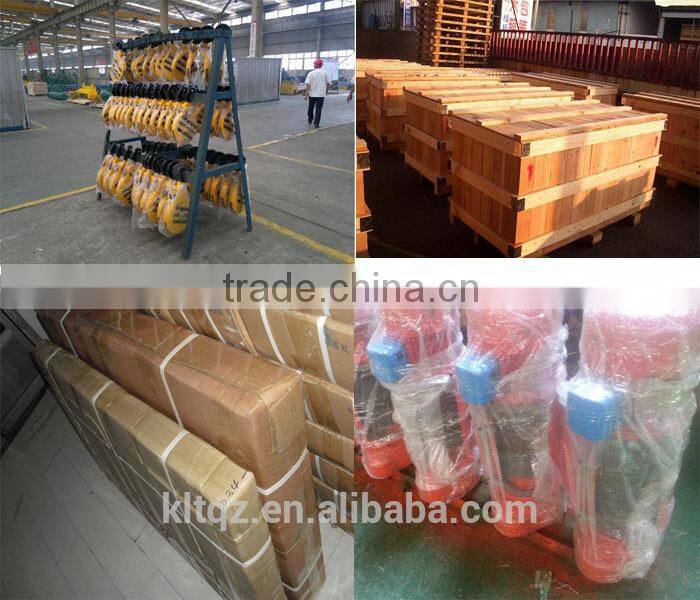

Packaging&shipping
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 5-20 working days after the deposit received.
Customer visiting
Our services
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
