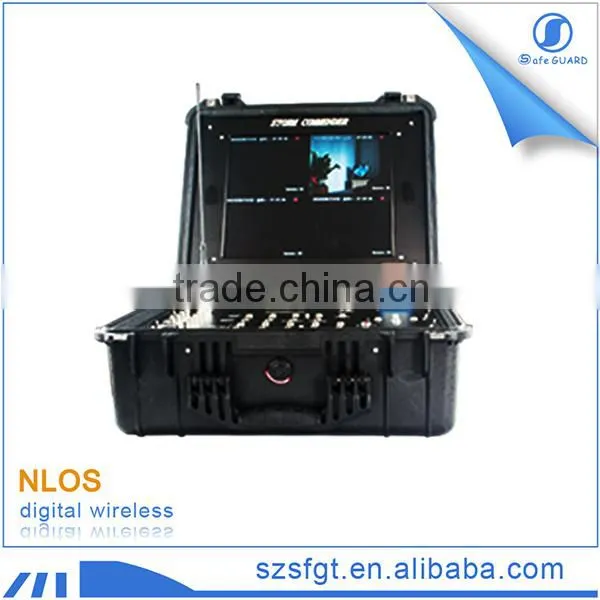

Wireless COFDM Video Receiver for Surveillance and Law Enforcement

Wireless COFDM Video Receiver for Surveillance and Law Enforcement thumbnail-1
Wireless COFDM Video Receiver for Surveillance and Law Enforcement thumbnail-2
Wireless COFDM Video Receiver for Surveillance and Law Enforcement thumbnail-3
Wireless COFDM Video Receiver for Surveillance and Law Enforcement thumbnail-4
Wireless COFDM Video Receiver for Surveillance and Law Enforcement photo-1
Wireless COFDM Video Receiver for Surveillance and Law Enforcement photo-2
Wireless COFDM Video Receiver for Surveillance and Law Enforcement photo-3
Wireless COFDM Video Receiver for Surveillance and Law Enforcement photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Safe Guard
Model Number:
SG-CH4
Contact Supplier Request Quote Chat Now
Shenzhen Safe Guard Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Safe Guard
Model Number SG-CH4
Product Description

Wireless COFDM Video Receiver for Surveillance and Law Enforcement.


*MPEG-2 video compression, DVD video quality;

*Modular design and highly integrated;

*17" Standard Samsung LCD screen;

*Built in 60G SSD memory;

*Support 4 channels 48hours continuously recording;

*Support RS485/RS232 and av signals transmission simultaneously;

*Advanced data encryption for the security;

*NTSC/PAL automatically adapt, support user adjustable;

*Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;

*Adjustable working frequency, bandwidth, RF power and etc;

*COFDM modulation, Stable signal reception;

*Custom made for HDMI/SDI hd interface output.

Rx Parameters
Wireless COFDM Video Receiver for Surveillance and Law Enforcement
Frequency
300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory
60G/120G, 4 channel 48 hours recording
LCD monitor
17inch
RF Level Input
-105dBm~-20dBm
RF Interface
N(F)
AV output
BNC
Modulation
COFDM
Power supply
AC220V / DC12V
Bandwidth
2/2.5/4/8MHz(adjustable)
Constellation
QPSK,16QAM
Data control interface
Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface
Standard RS232/RS485 level ,support 1200~115200
Type
Wireless COFDM Video Receiver for Surveillance and Law Enforcement
FEC
1/2，2/3，3/4，5/6,7/8(optional)
Guard Interval
1/32，1/16，1/8，1/4 (optional)
Video Output
1 line PAL/NTSC analog video
Video Decoding
ISO/IEC13818-2  MPEG-2MP@ML
Revolution
720×576(PAL) , 720×480(NTSC)
Lines of horizontal
625 or 525 Line
Model
SG-CH4 Wireless COFDM Video Receiver for Surveillance and Law Enforcement
Audio Output
Analog stereo left and right channels
Data encryption
AES / ALLTECH Basic scrambling
Voltage
AC220V±20V, DC14V~DC16V
Work environment
-30~70°
Built in Battery
30000mA,support 4ch 48 hours recording
Size
520*430*210mm
Weight
22kg

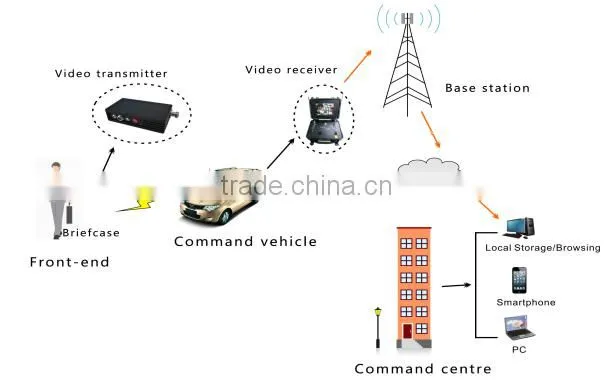

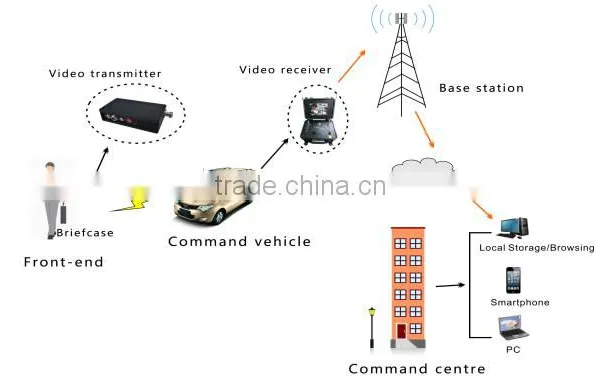

Rx Tx Application

Wireless COFDM Video Receiver for Surveillance and Law Enforcement.

Our wireless video transmitter and receiver are wildly used in video security surveillance, UAV application, live broadcasting and so on.

Testing Equipments

Wireless COFDM Video Receiver for Surveillance and Law Enforcement.

Each our COFDM wireless transmitter/receiver/transceiver and wireless bridge goes througn strict and professional testing!

Packing & Delivery

Wireless COFDM Video Receiver for Surveillance and Law Enforcement.

Professioanl carton paper packing for each transmitte and receiver.

Our Advantages

Professional manufacturer for COFDM wireless video audio transmitter and reciever

* One year free warranty;

* Three months for free spare parts (Replacement parts will be charged after a year);

* 24-h technical guidance;

* One-stop ODM/OEM solution;

* Over 15 years' experience in studying, designing and manufacturing in wireless AV transmission area;

* Direct plant source, offering you top quality with competitive price.
