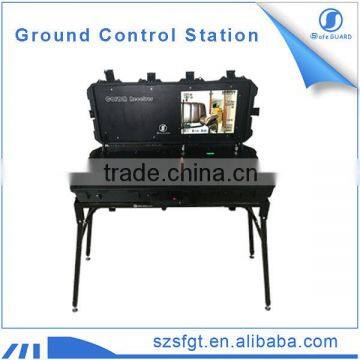

Military COFDM Monitor Receiver Portable Ground Control Station
SG-SRT01

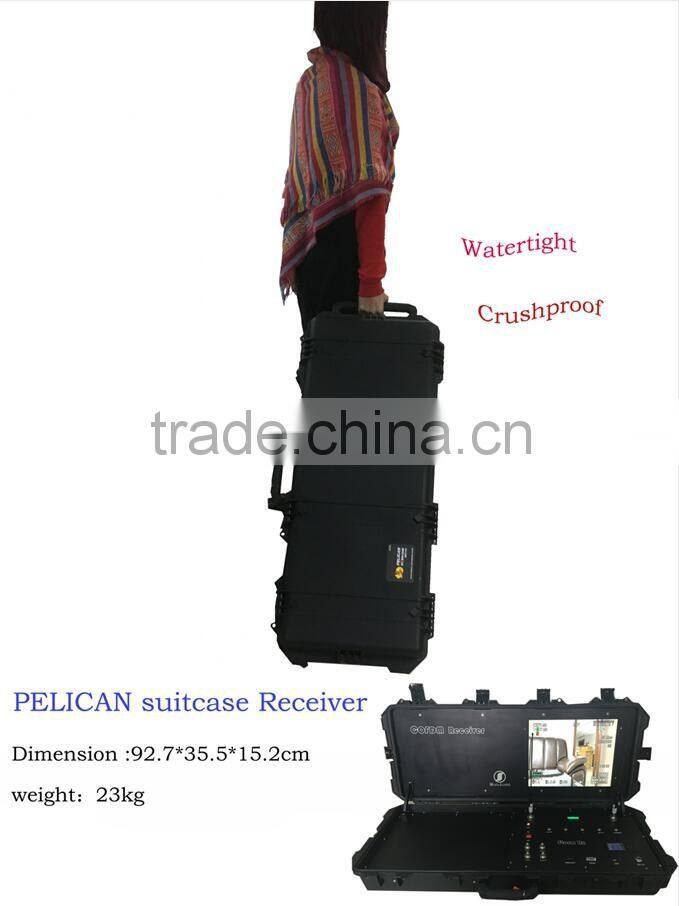

PELICAN suitcase features:
l Watertight, crushproof, and dust proof
l Easy open Double Throw latches
l Open cell core with solid wall design - strong, light weight
l O-ring seal
l Automatic Pressure Equalization Valve
l Comfortable rubber over-molded handle
l Stainless steel hardware and padlock protectors
l 2 level Pick N Pluck™ with convoluted lid foam
l Personalized nameplate service available
l Lifetime Guarantee of Excellence

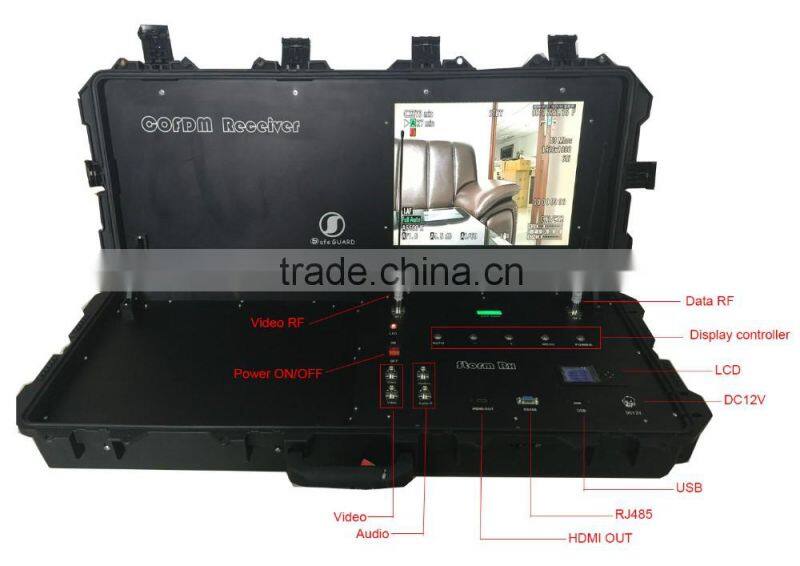

Receiver features:
l COFDM modulation
l MPEG-4/H.264 video compression
l Full hd 1080P resolution,very sharp image
l Modular design and highly integrated
l Support 1 channel multi signals receiving at the same time.
l Dual aerial designed for better signal receive
l Standard 17inch Samsung HD LCD screen
l The left space for your PC placed easier to carry together
l Your choose video recording by SSD or USB
l Works well under fast moving signal receiving and support NLOS trasnsmission
l If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.
l Extra USB insert easy to copy the video.
Attention: Accept of your other customized request.
Frequency |
138-4400MHz (option), 100MHz span adjustable open to user |
RF bandwidth |
2/2.5/4/8MHz(adjustable) |
Memory |
embedded DVR, standard 80G SSD |
LCD monitor |
17inch Samsung HD LCD screen |
RF Level Input |
-105dBm~-20dBm |
RF Interface |
N(F) |
AV output |
BNC |
Data output |
RS485/RS232/RS422 serial port |
HD output |
HDMI/HD-SDI |
Video recording method |
By internal SSD or USB |
Modulation |
COFDM |
Power supply |
AC220V / DC12V |
Constellation |
QPSK,16QAM,64QAM |
FEC |
1/2,2/3,3/4,5/6,7/8 |
Guard Interval |
1/32,1/16,1/8,1/4 |
Video format |
1 line PAL/NTSC video signal |
Video Decoding |
ISO/IEC13818-2 MPEG-4MP@ML |
Resolution |
1920*1080 @60i/59i, 720P |
Video compression |
H.264/MPEG-4/MPEG-2 |
Audio Output |
stereo left and right channel |
Data encryption |
AES 128/256bits |
Work environment |
-30~70° C |
Built in Battery |
30000mA,support 48 hours continuously recording |
Size |
927*355*152mm |
Weiht |
23kg |

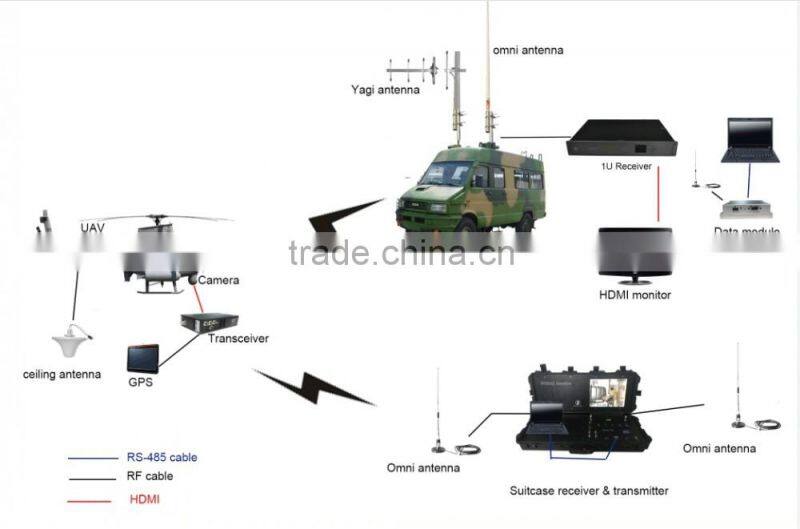

This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
1.As such high cost of goods,so normally ship them by DHL/UPS/FedEx Air express.
2.Door to Door service;
3.Be safety and fast.Appr. 3-5 working days then you will receive the package ;
4.Production time: within 5 working days for sample, 10-20 working days for wholesales.
