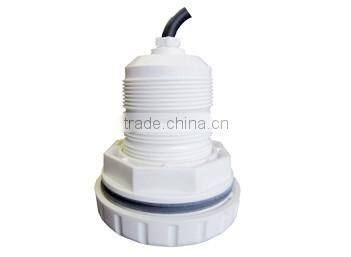

Small LED Pool Light Mini LED Pool Lamp 3W

FOB Price

USD $14 - $27 / Piece

1 Piece(Min.Order)

Product Details

LED Light Source:	SMD3528	Input Voltage(V):	12	Lamp Power(W):	3
Lamp Luminous Flux(lm):	150	Lamp Luminous Efficiency(lm/w):	80	Color Temperature(CCT):	Pure White
Working Temperature(℃):	0, 50	Working Lifetime(Hour):	50000	IP Rating:	IP68
Certification:	CE, EMC, FCC, LVD, VDE	Lamp Body Material:	Plastic	Base Type:	PAR30
Place of Origin:	Guangdong, China	Brand Name:	Heguang	Model Number:	HG-P20U-3*1W (36SMD3528) (Plastic pool light)

Product Description

Features:

l LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic, wide application.

l Applicable for Vinyl pool

l Plastic lamp body, tempered glass cover

l IP68 structure waterproof

l high power 3w as light source, Epistar, Bridgelux, Epileds as led chip for options.

l Constant driver to make sure LED light working stable, avoid any flashing and noisy

l Voltage:AC/ DC 12V, Frequency: 50/60Hz

l Beam angle: 25°/30°/45°/60° for options

l Life span: >30000 hours

l Over-current protection

Dimension:

Applications:

Vinyl pool, garden pond, square, water column, flower-bed in villas, garden, rocky water-fall, outdoor fountain, etc.

Specification
Model No.	*HG-P20U-31W(36pcs SMD3528) (plastic pool light)**
LED Qty.	36 pcs SMD3528 LED Chip
Input Voltage	AC 12V
Current	200 mA
Input Frequency	50-60 Hz
Power	Red:2±0.5W/Green:3.5±0.5W Blue:3.5±0.5W/RGB:3.5±0.5W/White:3.5±0.5W
Luminous flux	27±10%Lm (Blue) 60±10%Lm (Red) 70±10%Lm(RGB) 110±10%Lm (Green) 120±10%Lm(Cool white) 130±10%Lm(Warm white) 150±10%Lm(Pure white)
Wave Length (RGB)	R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm
Color temperature	w.w.:3000-3500k p.w.:6000~7000k c.w..8000~12000k
Dimension	95×113.3mm
Working temperature	-20~50℃
Storage Temperature	-20~50℃
Base	wire
IP rating	IP68
Constant driver&over-current protection	yes
Packing	30 pcs in 62x29x47cm Ctn. Qty.: 30 pcs N.G: 10.5 kg

Packaging & Shipping

Each in a box, suitable quantity in a carton

Model No.	N.W./pc (kg)	Box dim (cm)	G.W./pc (kg)	Ctn dim (cm)	Ctn. Qty. (pcs)	G.W./ctn (kg)
HG-P20U-3X1W (Plastic pool light)	0.5	13.5x13x14.5	0.65	62x29x47	30	20.5
HG-P20U-1X3W (Plastic pool light)	0.5	13.5x13x14.5	0. 65	62x29x47	30	20.5
HG-P20U-3X1W (Plastic pool light) (SMD3528)	0.5	13.5x13x14.5	0. 65	62x29x47	30	20.5

Usually cargoes are shiped by international express as below:

If air freight is too high, sea freight is also available.

Shenzhen Heguang Lighting Co., Ltd.: Contact nameZoe Loh; Phone86-755-81785630; Address3/F, Building 1, Shangpai 2nd Industrial Area, No. 3 Yonghe Rd, Shangwu, Shiyan, Baoan, Shenzhen518108, China Shenzhen,Guangdong
