3W LED Vinyl Pool Light
Features:
1. Applicable for Vinyl pool
2. Plastic lamp body, tempered glass cover
3. IP68 structure waterproof, 100% waterproof test with high pressure test device, equal to 5-6m depth.
4. high power 3W as light source, Epistar, Bridgelux, Epileds as led chip for options.
5. Constant driver to make sure LED light working stable, avoid any flashing and noisy
6. Voltage:AC/ DC 12V, Frequency: 50/60Hz
7. Beam angle: 15°/30°/45°/60° for options
8. Life span: >30000 hours
9. Over-current protection
Main parameters:
Specification |
Parameter |
|
Model No. |
HG-PL-3W-V(1X3W) |
|
LED Qty. |
1pc 3W high power |
|
Input Voltage |
AC/DC 12V |
|
Current |
500 mA |
|
Input Frequency |
50-60Hz |
|
Power |
Red:3±1W/Green:3±1W Blue:3±1W/White:3±1W |
|
Luminous flux |
20±10%Lm (Blue) 40±10%Lm (Red) 70±10%Lm (Green) 100±10%Lm(Cool white) 110±10%Lm(Warm white) 120±10%Lm(Pure white) |
|
|
Wave Length (RGB) |
R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm |
|
Color temperature |
w.w.:3000-3500k p.w.:6000~7000k c.w.:8000~12000k |
|
Dimension |
Φ95×113.5mm |
|
Working temperature |
0~50℃ |
|
Storage Temperature |
-20~50℃ |
|
Base |
wire |
|
IP rating |
IP68 |
|
|
Constant driver& over-current protection |
yes |
|
Packing |
30 pcs in 62x48x28cm N.G: 18kgs |
|

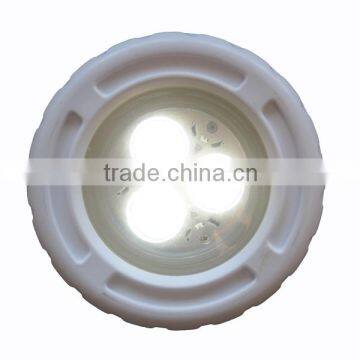

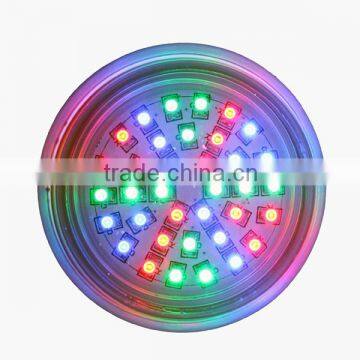

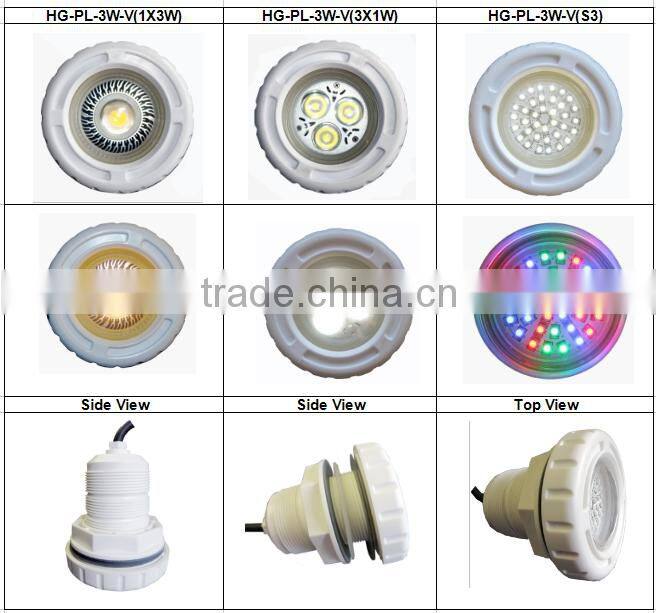

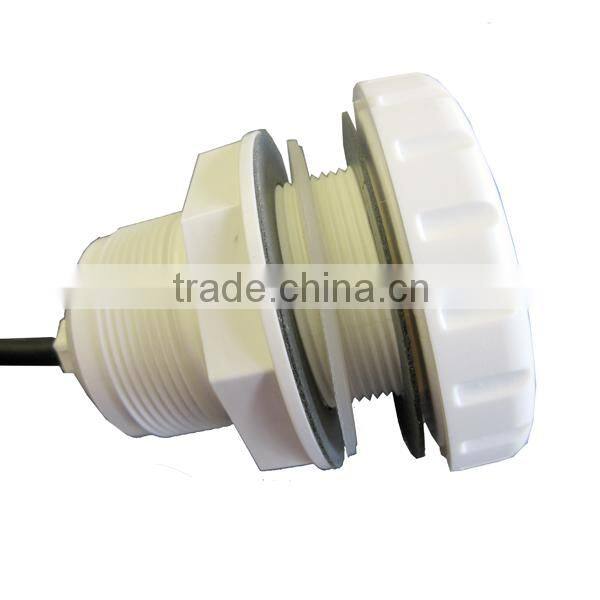

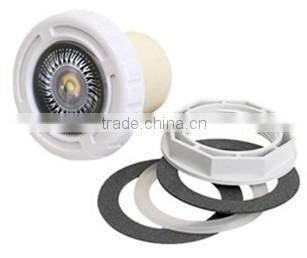

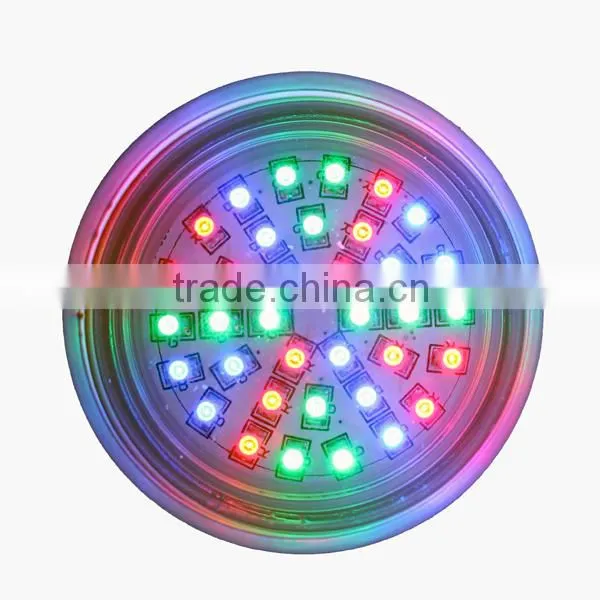

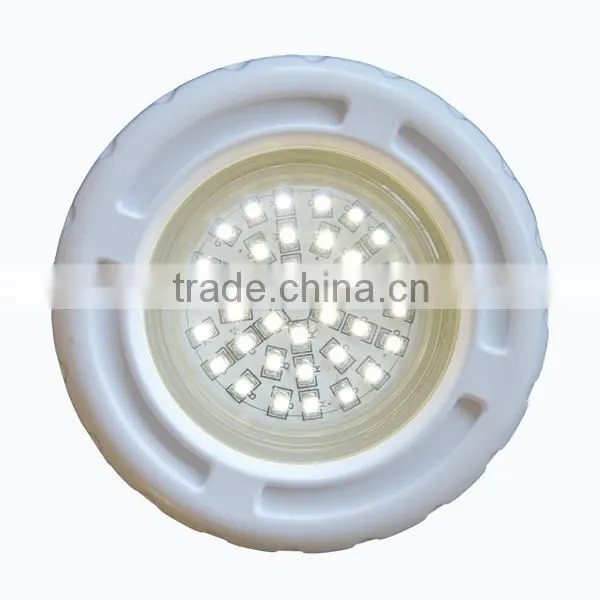

LED Small Pool Light Product Show:
Front View |
White |
|
|
|
Top View |
Dimension |
|
|
|
led small pool light application:
Our led small pool light for vinyl pool series:

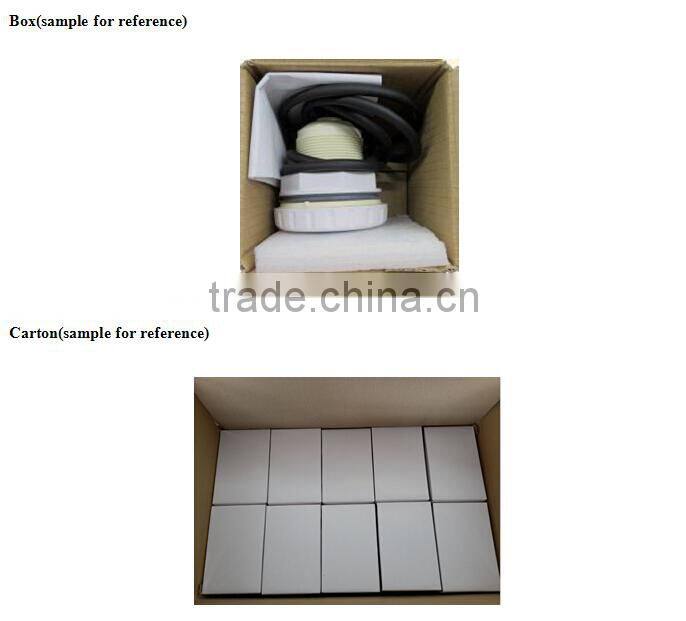

Packaging:
1 pc led small vinyl pool light in a white box, 30 pcs in 64.5x48x28cm master carton N.W.: 18 kgs
it also can be customized based on the customers' requirements.
Shipping:
7-15 working days, it also depends on your order quantity.
OEM or ODM
Our advanced production lines, precise equipment, strict quality control process and experienced engineer team are capable to fulfill the toughest OEM or ODM requirement from customers worldwide.
M.O.Q.
Generally, we don’t require M.O.Q. in order to help some clients to expand their business & keep the ball rolling.
Lead time
7-15 working days based on stock material and order quantity.
Payment
T/T, Western Union or LC(at sight)
Incoterms
EX-Factory/work, FOB, CIF
Warranty
All our products are covered by 24 months warranty from the date of purchase
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and
production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as
fountain light, inground light, wall washer, etc.
Exibition show:
Want to know more information, pls feel free to contact us.
