IP68 RGB 18W New LED Swimming Vinyl Pool Light for Different Pool / vinyl pool

FOB Price

USD $33 - $52 / Piece

6 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	SMD5050	Input Voltage(V):	12	Lamp Power(W):	18
Lamp Luminous Flux(lm):	900	Lamp Luminous Efficiency(lm/w):	70	Color Temperature(CCT):	Other, w.w.3000~3500k, p.w.6000~7000k, c.w.8000~12000k
Working Temperature(℃):	-10, 50	Working Lifetime(Hour):	30000	IP Rating:	IP68
Certification:	CE, EMC, FCC, LVD, VDE	Lamp Body Material:	ABS	Place of Origin:	Guangdong, China
Brand Name:	HG	Model Number:	HG-PL-105S5-V

Product Description

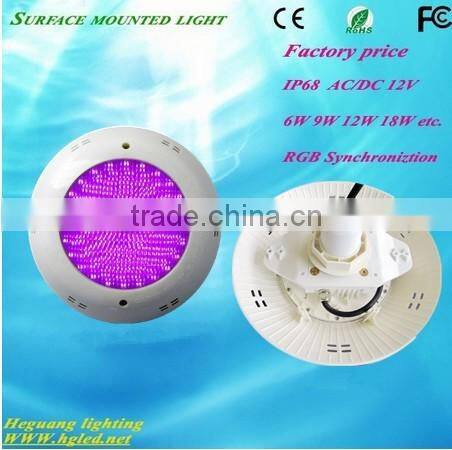

New RGB 18W IP68 led swimming pool light

Main parameter: HG-PL-105S5-C/V/F

Specification	Parameters
Model No.	HG-PL-105S5-C	HG-PL-105S5-V	HG-PL-105S5-F

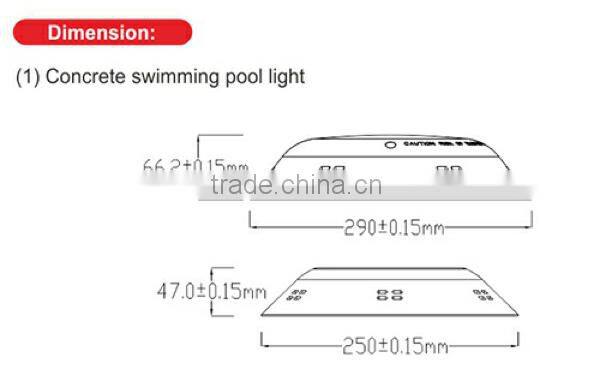

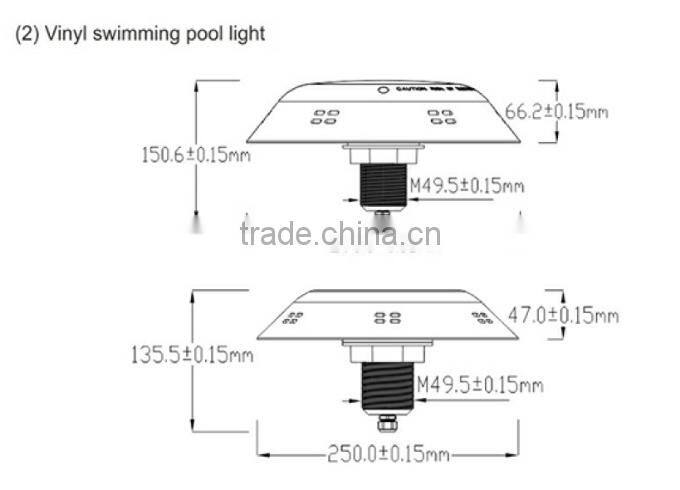

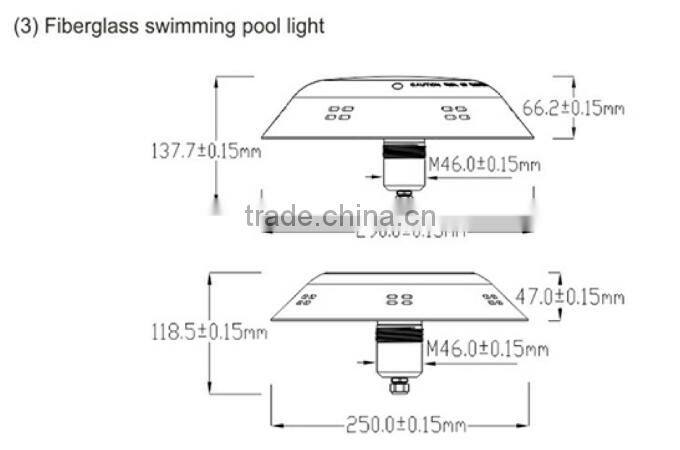

Dimension	*290(diameter)66(height)mm**	*290(diameter)150.6(height)mm**	*290(diameter)137.7(height)mm**
application	concrete pool	vinyl pool	fiber glass pool
LED Qty	105 pcs SMD5050
Input Voltage	AC/DC 12V
Frequency	50/60 Hz
Power	18±1w (White) / 17±1w (RGB) 13±1w (R)/ 18±1w (G)/ 18±1w (B)
Luminous Flux	P.W. 1200Lm±10% W.W.1100Lm±10% C.W.1000Lm±10% 320Lm±10%Lm (R) 730±10%Lm (G) 180±10%Lm (B) RGB: 410±10%Lm(RGB)
Replace halogen	100W
Beam angle	120°
Working temperature	0~40℃
IP rating	IP68

Features:

l IP68 Structure water proof ( private tooling & patented product), unique internal design, good at

waterproof and anti-corrosion.

l RGB synchronization with patented RGB controller

l Thermal plastic body & pc cover, easy to install and excellent performance on heat dissipation.

l Constant driver to make sure LED light working stably, avoid any flashing and noisy

l Voltage:AC/DC 12V, Frequency: 50/60HZ

l High quality and brightness LED source.

l Projection distance: 5-6 meter

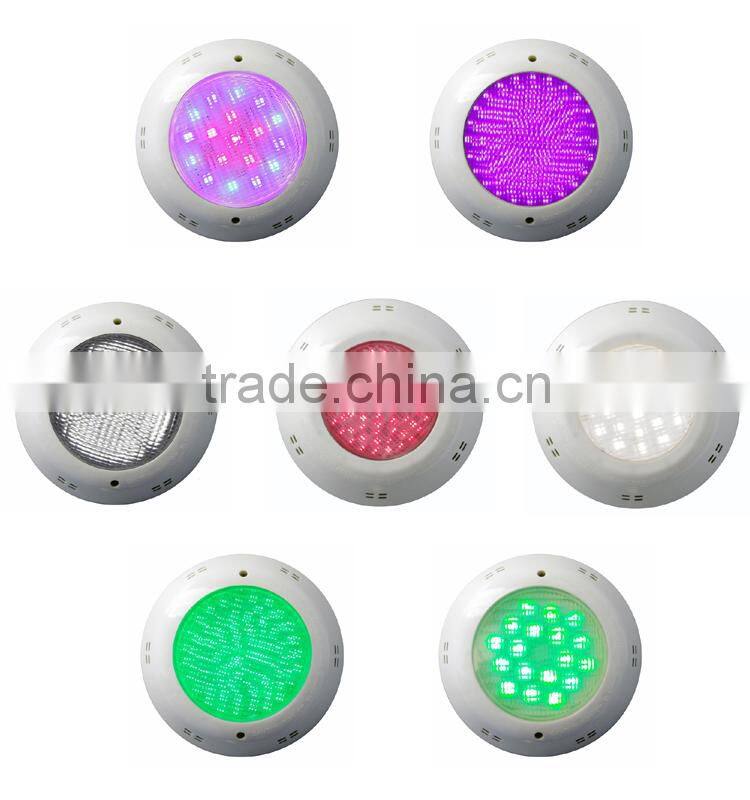

l Color: Single color – white, red, green, blue, yellow

l Color: RGB, 14 kinds of color changing

l 6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control,

External control, Remote & switch remote control, Automatic control

l Beam angle:SMD5050/3528/5730-120°, high power-15°25°/30°/45°/60°

l Life span 30000 hours

l Overcurrent protection

Lighting Effect:

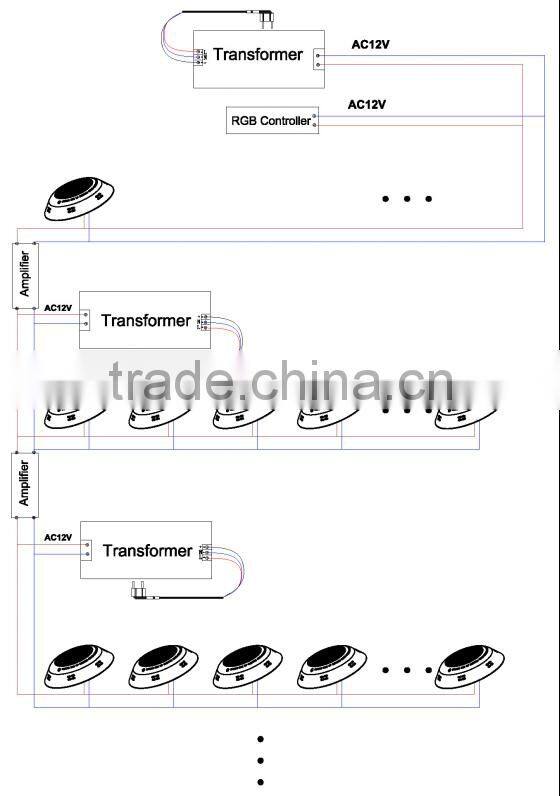

RGB Control Methods:Remote control, WIFI control, DMX 512 control, External control,

Remote & switch remote control, Automatic control.

RGB control methods are as followings
(1). Remote control(2 wire connection): control RGB color changed by remote controller or RGB controller.
(2). External control(4 wires connection): RGB color changed by external controller .
(3). WiFi control(4 wires connection): RGB color changed by WiFi controller or Android system phone or Iphone
(4). DMX control(5 wires connection): RGB color changed by DMX controller
(5). Auto control(2 wires connection): RGB color changed automatically, RGB program is pre-set
(6). Remote and Switch control(2 wires connection): RGB color changed by RF reote or switch(RGB changed by switch on/off)

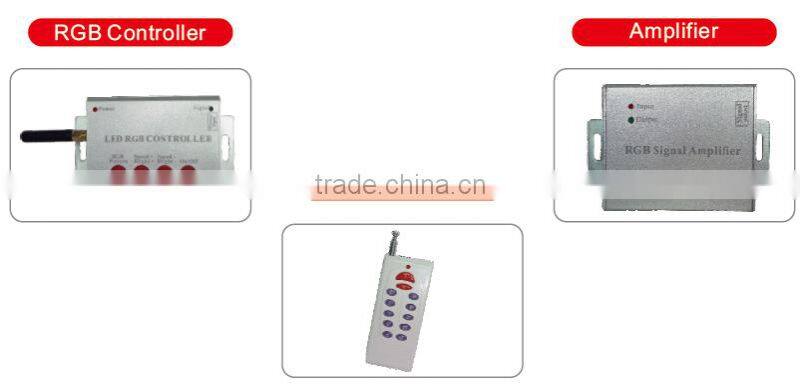

Accessories:

14 kinds of RGB Color Change Programs:

14 kinds of RGB color Change programs:
1. Red (solid color – red)	6. Red + blue = Purple	11. Dynamic RGB change
2. Green (solid color – green)	7. Red + green + blue = White	12. Dynamic & Colorful change
3. Blue (solid color – blue)	8. Dynamic change: red change to green	13. RGB fading
4. Red + green = Yellow	9. Dynamic change: green change to blue	14. Colorfully fading
5. Green + blue = Cyan	10. Dynamic change: red change to blue

Remote control (RGB synchronization with patented RGB controller)

Packaging & Shipping

Packaging:

1 pc led pool light in a white box, 6 pcs in 66x34x61cm master carton N.W.: 13.5 kgs

it also can be customized based on the customers' requirements.

Shipping:

7-15 working days, it also depends on your order quantity.

Certificates:

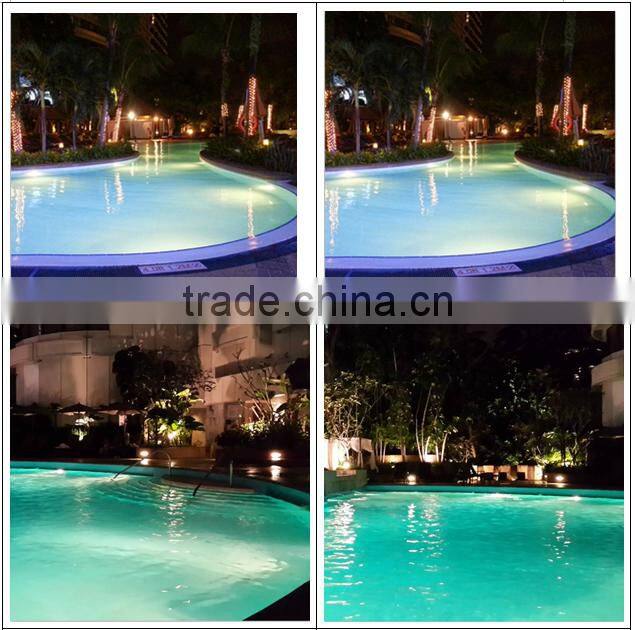

Project Case

Our Services

1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process

and experienced engineer team are capable to fulfill the toughest OEM or ODM

requirement from customers worldwide.

2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand

their business & keep the ball rolling.

3.Lead time------7-15 working days based on stock material and order quantity.
