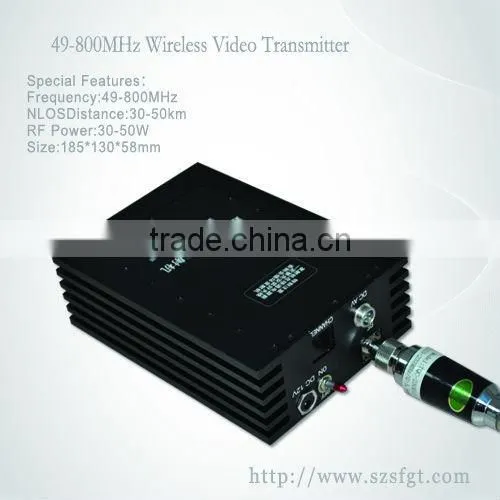

Analog 49-800MHz Wireless AV Sender

1

Potable, special design for manpack;

2

Strong ability of anti-interference and good performance;

3

BNC interface, ensure stable and no interruptions of AV signals;

4

Very suited for basements, caves, mountains and other environments with obstacles;

5

Water-proof, adopted different cores in order to distinguish from other interfaces, prevent from destroying by accident;

6

It is more than 2KM transmission distance using 5.5dBi antennas, and can up to 5km with 9dBi antennas;

7

Mainly used in military, police or sailing boat for sending live video signal, the transmission distance is not less than 15 km without obstacles (in a clear line).

Transmitter System Indicators

Frequency

49-800MHz (optional)

RF Power

10-30W (optional)

Voltage

DC12V

Current

3.5-6.5A

Frequency stability

0.0005%( standard)

Modulation

F.M.

Phase Noise @10KHz

-75dBc

Impedance

50Ω

Bandwidth

20M

Video Format

PAL

Material

Aluminum shell

Interface

BNC

Humidity

0.96%

Temperature

-45-+55

Weight

2kg(without batteries)

Size

185*130*58mm

Receiver System Indicators

Frequency

49-800MHz (optional)

Impedance

50Ω

Video Output

Analogic AV signal

Voltage

DC12V

Current

0.6A

Interface

BNC

Size

1U chassis

Weight

2kg

Temperature

-30 --50°C

Audio index

Audio Output

600ΩBalance/ 0.5vImbalance

De-emphasis

75us/50us

Frequency corresponding

50Hz to 15KHz(+/-0.5dB)

Carrier frequency

6.5MHz

Distortion

3%

FM Noise

-50dB

Video Index

Video Output

75 Ω unbalanced, 1.0Volt Peak - Peak

Differential gain

5%

Differential phase

5

SNR

55dB

De-emphasis

CCIR STANDARD PAL

Packaging Details

Accessories

2*antennas (customized); 1*adapter; 2*connection line.

Style

Paper carton

Size

Undetermined

Overall Weight

6kg
