Specifications
Manpack Military Wireless Video Transmitter1)NLOS distance up to 500~800m
2)FM modulation, good for military

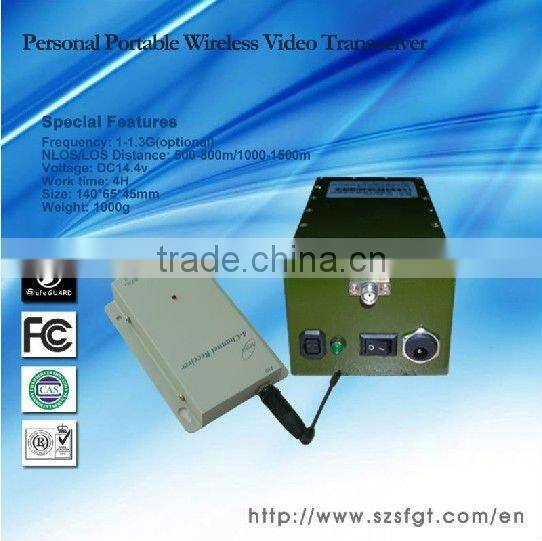

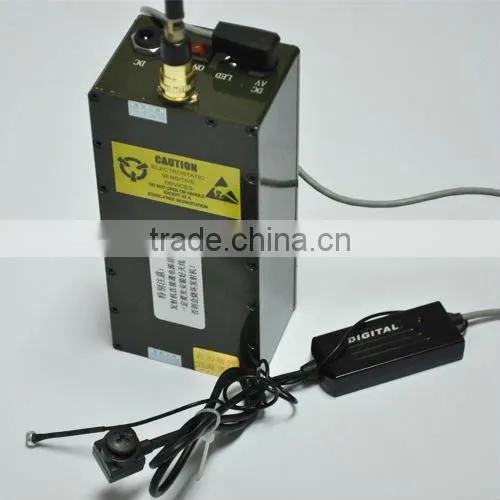

Manpack Military Wireless Backpack Transmitter with Batteries
Product Model: SG-BX1000
Specifications:
Transmitter System Indicators | |
Frequency | 1.06-1.36GHz(optional) |
RF Power | 10W |
Voltage | DC14.4V |
Current | 1.2A |
Modulation | FM |
Bandwidth | 20MHz |
RF Interface | RCA |
Work environment | -30~70 |
Video Format | PAL |
Size | 140*65*45mm |
Weight | 1.2kg (with antenna) |
Receiver System Indicators | |
Frequency | 1.06-1.36GHz(optional) |
Receive Threshold | <- 96dBm |
Power Consumption | 40W |
Power supply | DC12V |
AV Interface | RCA |
Audio Output | Analog, single channel |
Impedance | 50Ω |
Work environment | -40~+55°C |
Weight | 200g(with antenna) |
Size | 115*81*20mm |

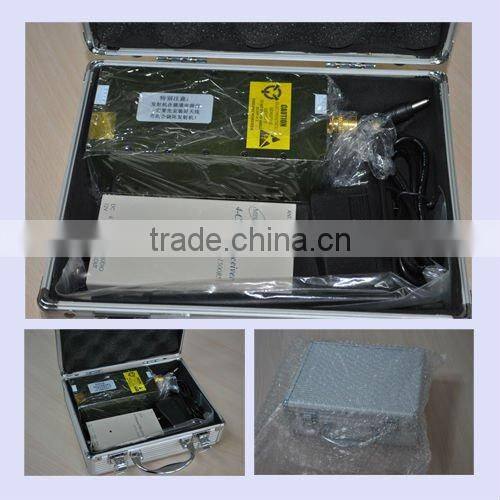

Packaging Details | |
Accessories | 2*antennas (customized); 1*adapter; 2*connection line. |
Style | Exquisite gift box |
Size | 233*210*88mm |
Overall Weight | 2kg |
Sweet prompt: If you need to extend the transmission distance, please use professional wireless video signal repeater/booster choose by our product catalog.
Replacement
Influence the second sale of products do not belong to the category of return within 30 days you get this product. Such as appearance injury, High-voltage fuse, Damp, Broken seals, soaking,and so on. Transportation costs of replacement, repairment etc. Paid by the buyer!!!
Warranty
One year free warranty, 3 months for spare parts. We only charge for replacement parts cost when exceed one year.
Shippment
1. Items are only shipped after all payments are received by DHL, UPS, FEDEX etc. within one work day.
2. Free shipping to select countries, please check carefully the shipping & packing in detail.
3. For dispatching smoothly and safety, we have the final decision on the selection of shipping company.
4. Please do kindly notice that there maybe a little difference in transportation time by the reason as climate, accident or other issues, sorry for not responsible for any reason of delays.
