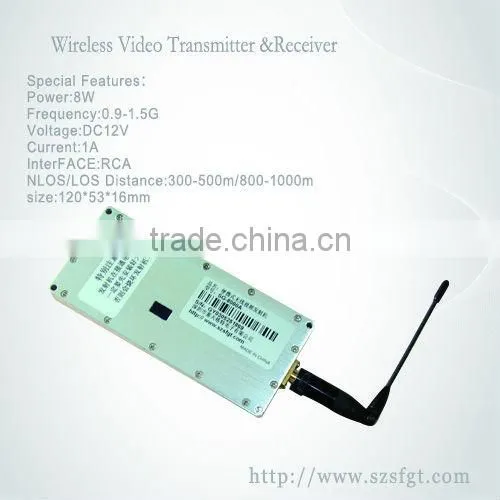

1.2G Personal Wireless Video Audio Transmitter

Specifications

1)Small size,safety
2)special design for personal carry
3)Good heat dissipati

Product model: SG-8000A

Special Features:

1 Mini portable wireless transmission;

2 Low cost, very suitable for baby monitor;

3 Connect to a mini camera directly;

4 Transmission AV signals timely.



Specifications:



Transmitter System Indicators
Frequency	0.9~1.5G
RF Power	8W
Voltage	DC12V
Current	1A
Modulation	FM
Bandwidth	8M
Video Format	PAL
Material	Aluminum shell
Interface	RCA
Weight	200g
Temperature	-40~+55
Size	120*53*16mm



Receiver System Indicators
Frequency	0.9~1.5G
Impedance	50Ω
Video Output	Analogic AV signal
Voltage	DC12V
Current	0.5A
Interface	RCA
Video format	PAL/NTSC
Size	115*81*20mm
Temperature	-30 --50°C



Packaging Details
Accessories	2*3dBi antennas (120~180mm); 1*adapter; 1*connection line.
Style	Color gift box
Size	205*157*75mm
Overall Weight	680g
