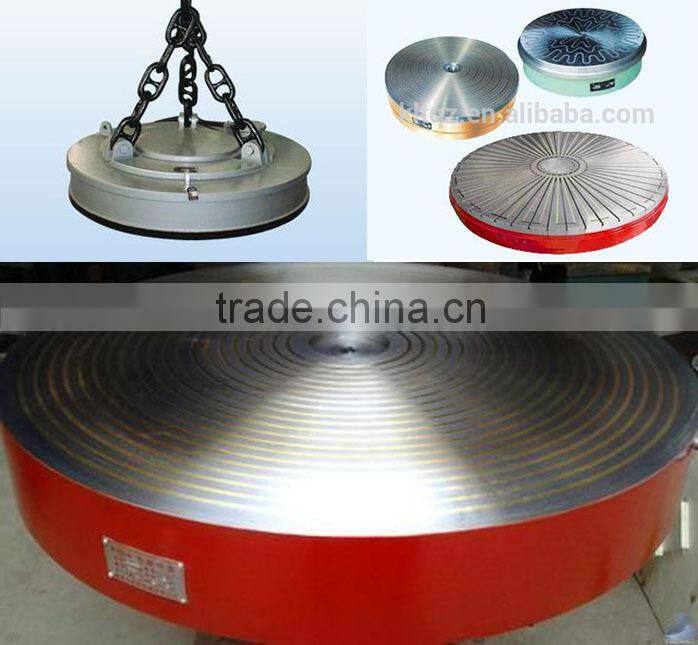

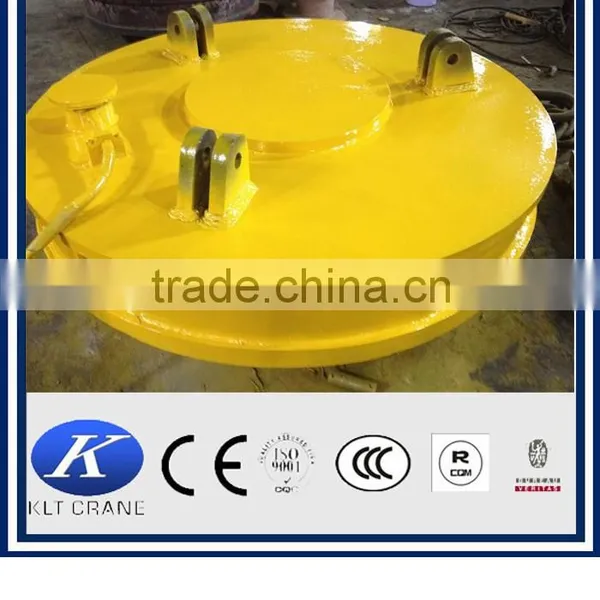

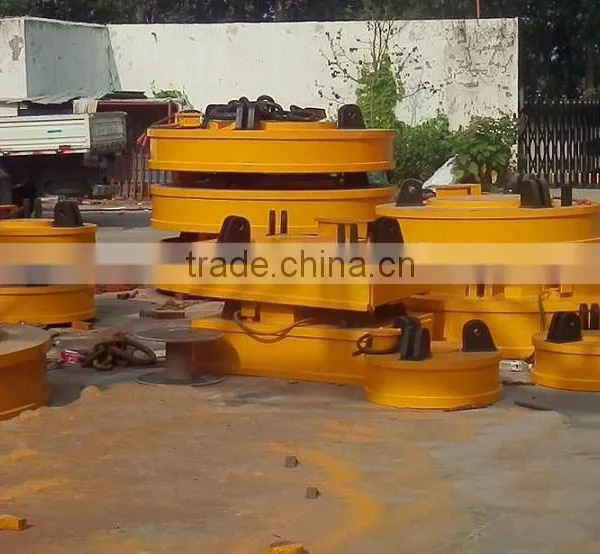

scrap magnet

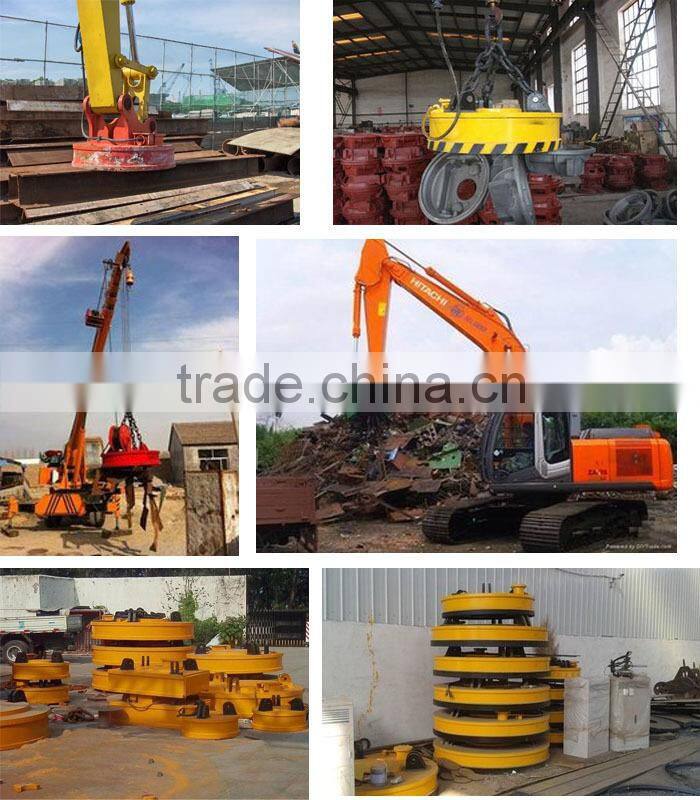

Applications of scrap magnet:
Scrap magnet is suitable for transferring cast ingots, steel balls, metal and steel scraps.
The electromagnet can be fitted on excavator or crane.
Features of scrap magnet:
The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
High lifting capacity, light self-weight.
Low power consumption, long service life.
Three types scrap magnet for option:
1. Normal temperature type (DC-220V TD-60%)
2. High frequency type (DC-220V TD-75%)
3. High temperature type (DC-220V TD-60)
Technialal parameter of nomal temperature scrap magnet(DC-220V,TD-60%)
Model | Diameter (mm) | Current (A) | Power (kW) | Lifting capacity (cold/hot state) (kgs) | ||
Steel ball | Steel ingot | Steel scrap | ||||
MW5-70L/1 | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 |
MW5-80L/1 | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 |
MW5-90L/1 | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 |
MW5-110L/1 | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 |
MW5-120L/1 | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 |
MW5-130L/1 | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 |
MW5-150L/1 | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 |
MW5-165L/1 | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 |
MW5-180L/1 | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 |
MW5-210L/1 | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 |
MW5-240L/1 | 2400 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 |
Technical data for high frequency type scrap magnet(DC-220V,TD-75%)
Technical data for high temperature typ scrap magnet(DC-220V,TD-60%)
Note:For normal temperature and high frequency type of lifting magnet,the adoption of high field excitation mode can further improve lifting capacity.For large electromagnet,the adoption of over energizing can accelerate ascending speed of the current,and play a stronger role in lifting capacity.

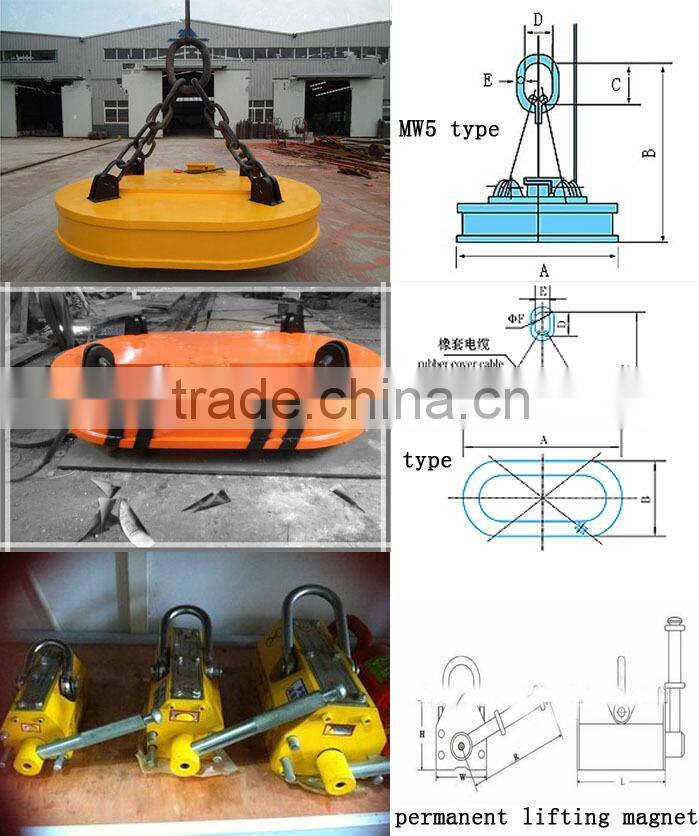

We also have other types of scrap magnet for your choise:
Our delivery is Efficient , Reliable ,and Prompt!

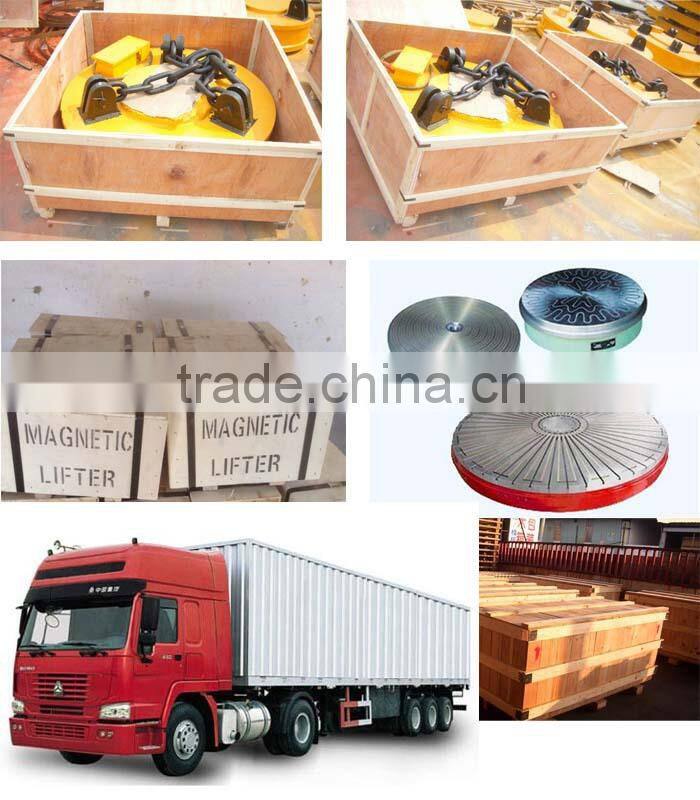

Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental
management system certification and OHSAS18001 occupational health and safety management system
certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation,
people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer-visits:
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pukistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height,
power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can
prepare for you! The information such as the lift capacity, span, lift height, power source or other
specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with
push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
Professional pre-sales service:
•Our technical team design the high quality and energy efficient standard product which can reduce the operation cost through the flexible design mode.
•In order to meet various requirements from customers, we customize the reliably crane solution
so that we acquire the trust from many customers.
After-sale service:
•The seller will provide all English manual documents before shipment.
•If the buyer requires,technician will be sent to the buyer’s site by the seller for installation and commissioning•The warranty period of the machinery is one year.The seller is responsible for the maintenance if
quality problem occurs.
•Crane spare part:responsive,reliable,and easy to detail with.
Dear friends, welcome to inquire about our products and price, all the inquiries will be replied within24 hours.
